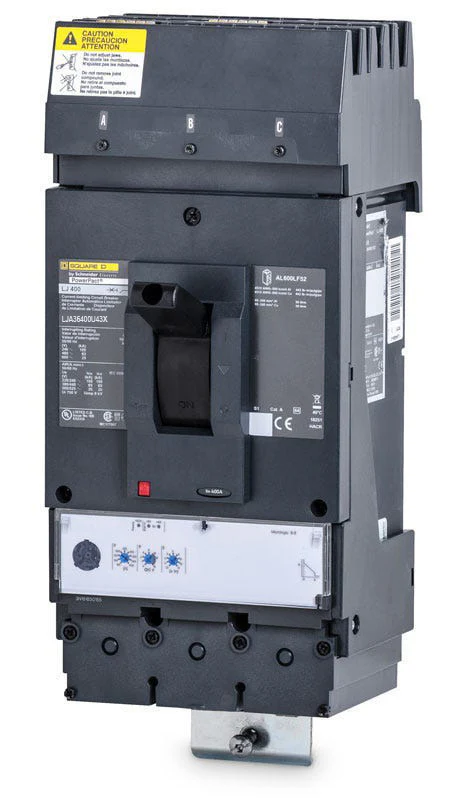

SQUARE D LJA36400U43X Circuit breaker, I-Line Style, Plug-In, 3 Phase, LJA Frame Type
Item: EC2UGHModel: LJA36400U43X
In Stock : 10 Units Get it by Thursday, Aug 20
5.00% off
€8,428.61 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Circuit Breaker |
| Ambient Air Temp. For Operation | -13°F to +158°F |
| Ambient Air Temp. For Storage | -58°F to +185°F |
| Application | Power Distribution |
| Breaking Capacity Code | J |
| Color | Black |
| Comm Code Enhanced | 32613 |
| Connection Type | I Line Style Plug In |
| Continuous Amps | 80% |
| Control Type | Toggle |
| Depth | 4.3" |
| Device Short Name | L-Frame |
| Discount Schedule | 0DE2 |
| Height | 14.7" |
| Ics Rated Service Breaking Capacity | 65 kA 220/240V AC 50/60 Hz, 35 kA 380/440/415V AC 50/60 Hz, 18 kA 500/525V AC 50/60 Hz, 20 kA 250V DC, 20 kA 500V DC |
| Interrupt Rating | 100 kA @ 240V AC, 65 kA @ 480V AC, 25 kA @ 600V AC |
| Ip Degree Of Protection | Front Cover IP40 |
| Length | 6.61" |
| Local Signalling | Ready 1 LED Green) Alarm 1 LED 90 % Ir Orange) Alarm LED 105 % Ir Red) Switched Off (Off) 1 Trip Indicator Green) |
| Long Time Pick-up Adjustment Range | 1/4" to 1" |
| Mounting Height | 6" |
| Mounting Mode | I Line Bracket |
| Mounting Support | Bracket |
| Mounting Type | I Line |
| No. Of Poles | 3P |
| No. Of Slots | 5 |
| Operating Altitude | Less Than 6561.68 ft. (2000m) Without Derating 5000m With Derating |
| Phase Connection | ABC |
| Pollution Degree | 3 IEC 60947-1 |
| Power Wire Stripping Length | 1 1/5" |
| Product Or Component Type | Circuit Breaker |
| Protection Technology | Current Limiter |
| Range | Powerpact |
| Series | LJA Series |
| Suitability For Isolation | Yes |
| Terminal Identifier | AL600LF52K3 |
| Type | Molded Case, Standard, Electronic |
| Ui Rated Insulation Voltage | 750V |
| Uimp Rated Impulse Withstand Voltage | 8 kV |
| Voltage | 600V |
| Width | 5.94" |
Shipping Info:
| Ship weight (kg) | 7.65 |
| Ship height (cm) | 37.34 |
| Ship length (cm) | 16.79 |
| Ship width (cm) | 15.09 |
| Country of Origin | US |
