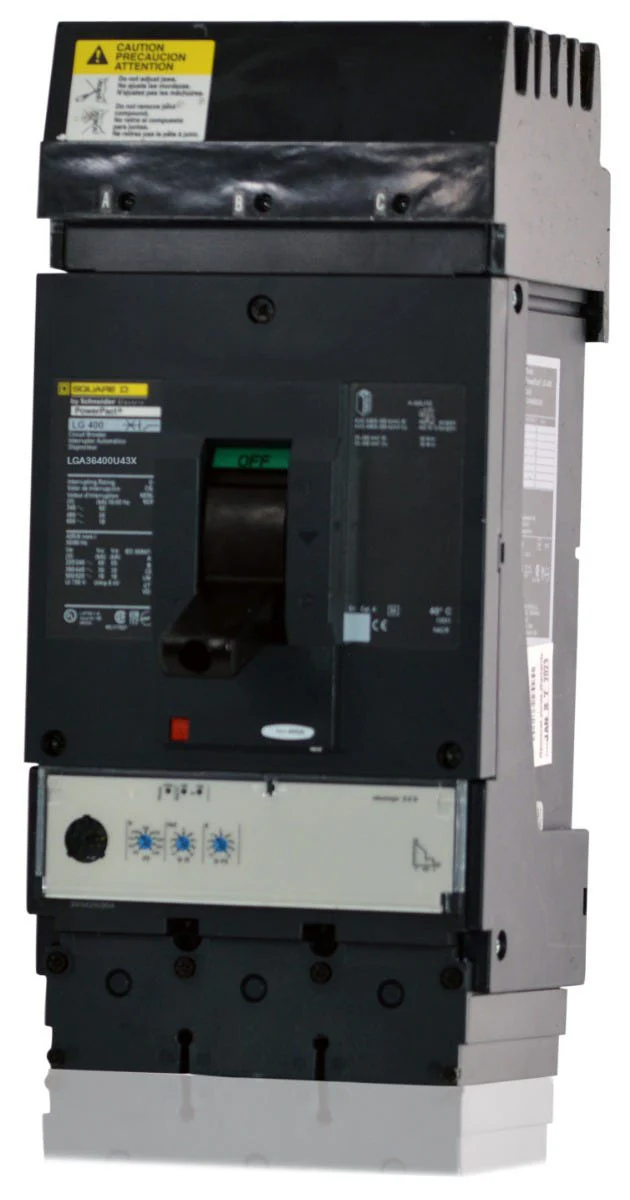

SQUARE D LGA36400U43X Circuit Breaker, 400A, 600V, 3 Pole, LGA Frame Type
Item: EC2QDZModel: LGA36400U43X
In Stock : 2 Units Get it by Friday, Aug 21
5.00% off
€6,719.19 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Circuit Breaker |
| Ambient Air Temp. For Operation | -13°F to +158°F |
| Ambient Air Temp. For Storage | -58°F to +185°F |
| Breaking Capacity Code | G |
| Color | Black |
| Connection Type | I Line Style Plug In |
| Continuous Amps | 80% |
| Depth | 4.3" |
| Device Short Name | L-Frame |
| Discount Schedule | 0DE2 |
| Frame Type | LGA |
| Height | 13 2/5" |
| Ics Rated Service Breaking Capacity | 65 kA 220/240V AC 50/60 Hz, 35 kA 380/440/415V AC 50/60 Hz, 18 kA 500/525V AC 50/60 Hz, 20 kA 250V DC, 20 kA 500V DC |
| Interrupt Rating | 35 kAIC @ 480V |
| Ip Degree Of Protection | Front Cover IP40 |
| Local Signalling | Ready 1 LED Green) Alarm 1 LED 90 % Ir Orange) Alarm LED 105 % Ir Red) Switched Off (Off) 1 Trip Indicator Green) |
| Long Time Pick-up Adjustment Range | 1/4" to 1" |
| Mounting Height | 6" |
| Mounting Mode | I Line Bracket |
| Mounting Support | Bracket |
| No. Of Poles | 3P |
| No. Of Slots | 5 |
| Operating Altitude | Less Than 6561.68 ft. (2000m) Without Derating 5000m With Derating |
| Phase Connection | ABC |
| Pollution Degree | 3 IEC 60947-1 |
| Power Wire Stripping Length | 1 1/5" |
| Product Or Component Type | Circuit Breaker |
| Range | Powerpact |
| Series | LGA Series |
| Suitability For Isolation | Yes |
| Terminal Connection | Line And Load Side Lug |
| Terminal Identifier | AL600LF52K3 |
| Ui Rated Insulation Voltage | 750V |
| Uimp Rated Impulse Withstand Voltage | 8 kV |
| Voltage | 600V AC |
| Width | 5 1/2" |
Shipping Info:
| Ship weight (kg) | 7.65 |
| Ship height (cm) | 14 |
| Ship length (cm) | 11 |
| Ship width (cm) | 34.01 |
| Country of Origin | US |
