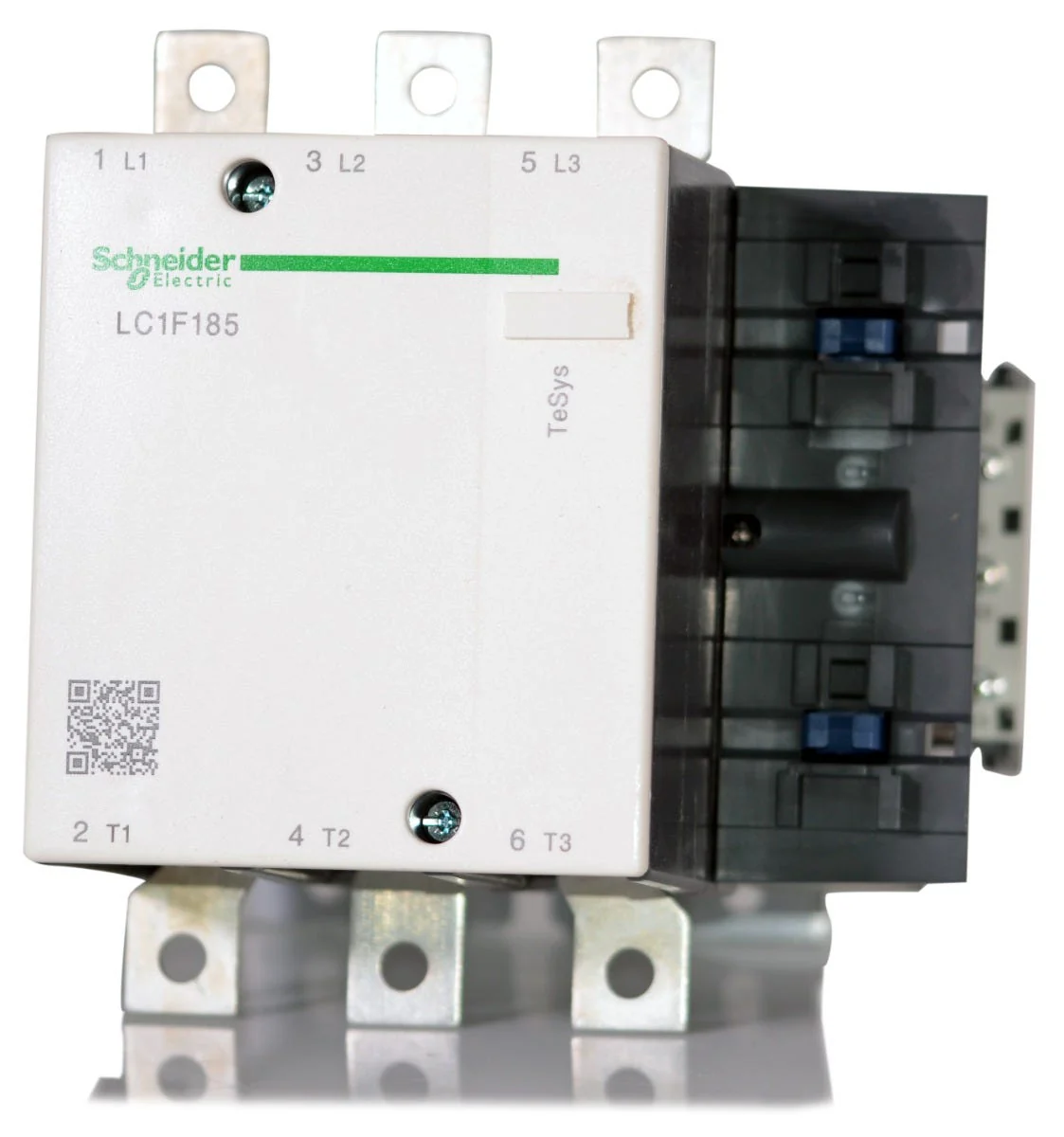

SQUARE D LC1F185F7 IEC Contactor, 185A, 120V Coil, LC1F Frame Type
Get it by Monday, Aug 24
€1,293.58 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Iec Contactor |
| Ambient Air Temp. For Storage | -76°F to +176°F |
| Amps Rating | 185A @ 440V AC ( AC-3), 275A @ 440V AC ( AC-1) |
| Auxiliary Contact | 1NO |
| Coil Voltage | 110V AC at 40-400 Hz |
| Comm Code Enhanced | 41120 |
| Connection Type | Panel Mount With Screws |
| Contactor Coil Voltage Type | Standard |
| Conventional Free Air Thermal Amps | 275A @ 104°F |
| Depth | 7.1" |
| Discount Schedule | 0I12 |
| Family Series | Square D Contactors, TeSys Series |
| For Use With | LC1-F Series Motor Control Systems |
| Heat Dissipation | 8°C @ 9.8 W |
| Height | 8.7" |
| Ie Rated Operational Amps | 275A at Greater Than 104°F at Greater Than Or Equal To 440V AC-1, 185A at Greater Than 131°F at Greater Than Or Equal To 440V AC-3 |
| Ip Degree Of Protection | IP2X Front Face With Shrouds IEC 60529, IP2X Front Face With Shrouds VDE 0106 |
| Length | 9 2/5" |
| Maximum Operating Rate | 2400 Cycles/hrs. at 60°C |
| Mechanical Durability | 10 MCycles |
| Motor Power | 30/50 kW @ 200/240V 3 Phase, 55/100 kW @ 200/240V 3 Phase, 55/100 kW @ 380/440V 3 Phase, 55/100 kW @ 480/500V 3 Phase, 110/220 kW @ 480/500V 3 Phase |
| Nominal Coil Voltage | 120V AC |
| Operating Altitude | 9842.52 ft. (3000m) Without Derating |
| Operating Time | 35 Ms Closing At Uc) 130 Ms Opening At Uc) |
| Power Dissipation Per Pole | 0.48 W |
| Power Pole Contact Composition | 3 NO |
| Product Or Component Type | Contactor |
| Range | Tesys |
| Range Of Product | Tesys F |
| Series | TeSys Series |
| Terminal Connection | Screw Clamp |
| Termination | Screw |
| Type | Non Reversing |
| Ui Rated Insulation Voltage | 1000/1500V |
| Uimp Rated Impulse Withstand Voltage | 8 kV |
| Voltage | 600V |
| Width | 7.9" |
Shipping Info:
| Ship weight (kg) | 4.86 |
| Ship height (cm) | 22.1 |
| Ship length (cm) | 23.88 |
| Ship width (cm) | 20.07 |
| Country of Origin | CZ |
