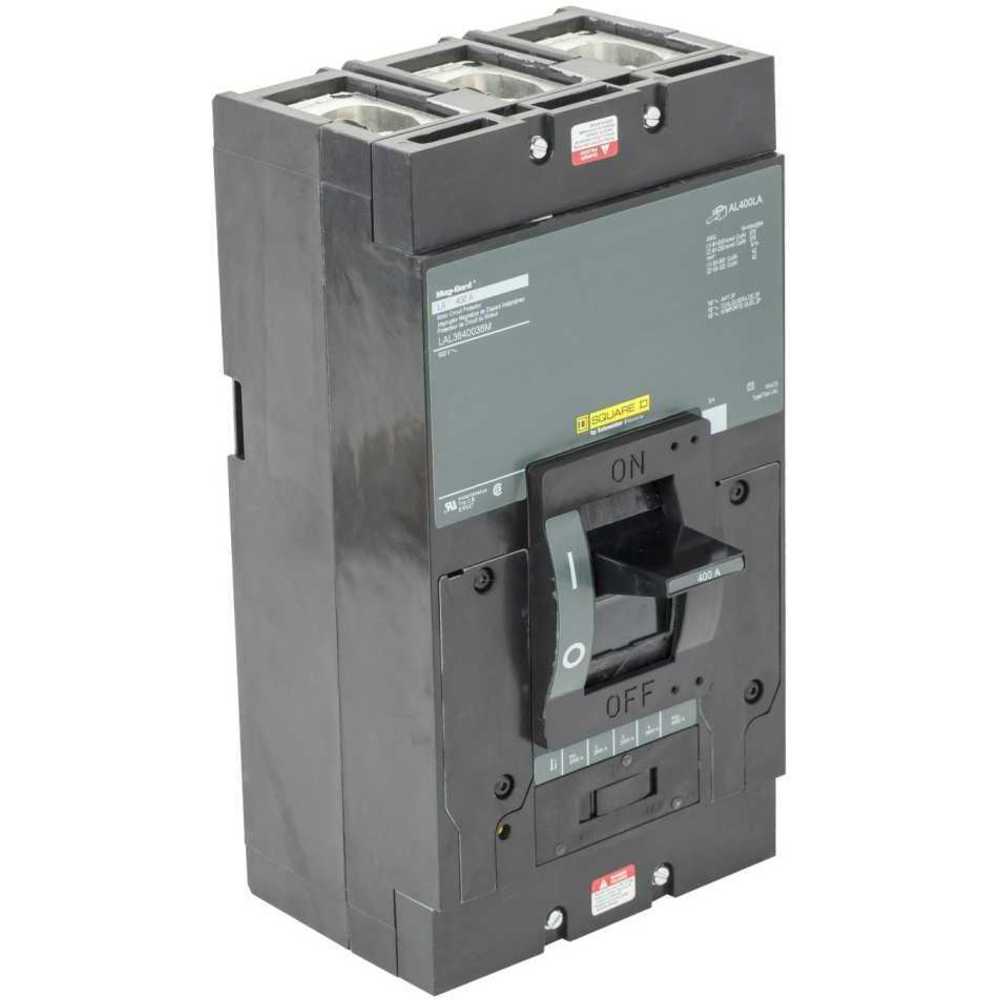

SQUARE D LAL3640036M Circuit Breaker 400a 3p 600vac Lug
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€5,928.49 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Circuit Breaker |
| Ac Voltage Rating | 600V AC |
| Amps | 400A |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Free Standing |
| Circuit Breaker Type | Motor Circuit Protector |
| Dc Voltage | 250V DC |
| Dc Voltage Rating | 250V AC |
| Depth | 5.84" |
| For Use With | Nema Motor Starters |
| Frame Size | 400A, LA |
| Height | 11" |
| High Amp Trip Setting | 4000A |
| Instantaneous Trip | Adjustable |
| Low Amp Trip Setting | 2000A |
| Max. Air Rating | 42 kA At 240V AC |
| Max. Air Rating | Not Rated |
| Max. Wire Size | 250 mcm, 600 mcm |
| Min. Wire Size | 1/0 AWG |
| Mounting | Free Standing |
| Number Of Poles | 3 |
| Phase | 3 |
| Phase Connection | ABC |
| Standards | Csa, Iec, Ul Listed |
| Terminal Connection | Lug |
| Terminal Connection Type | Lug |
| Trip Type | Thermal Magnetic |
| Width | 6" |
Shipping Info:
| Ship weight (kg) | 6.68 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 14.83 |
| Ship width (cm) | 15.24 |
| HS code | 8536200020 |
| Country of Origin | MX |
Product Details:
- Instantaneous Trip (Adjustable)
Product Variants
| Product | Model | Number Of Poles | Amps | Circuit Breaker Type | Phase | Voltage | Min. Wire Size | High Amp Trip Setting | Low Amp Trip Setting | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LAL26200 | 2 | 200A | Standard | 1 | - | 1/0 AWG | 2000A | 1000A | €4,858.50 | |
|
LAL26250 | 2 | 250A | Standard | 1 | - | 1/0 AWG | 2500A | 1250A | €4,819.49 | |
|
LAL26350 | 2 | 350A | Standard | 1 | - | 1/0 AWG | 3500A | 1750A | €6,748.00 | |
 |
LAL26400 | 2 | 400A | Standard | 1 | - | 1/0 AWG | 4000A | 2000A | €5,115.48 | |
|
LAL26300 | 2 | 300A | Standard | 1 | - | 1/0 AWG | 3000A | 1500A | €5,319.08 | |
 |
LAL36150 | 3 | 150A | Standard | 3 | - | 1/0 AWG | 1500A | 750A | €6,434.49 | |
 |
LAL36200 | 3 | 200A | Standard | 3 | - | 1/0 AWG | 2000A | 1000A | €6,513.26 |
