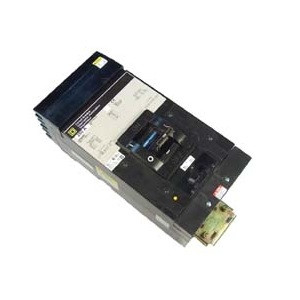

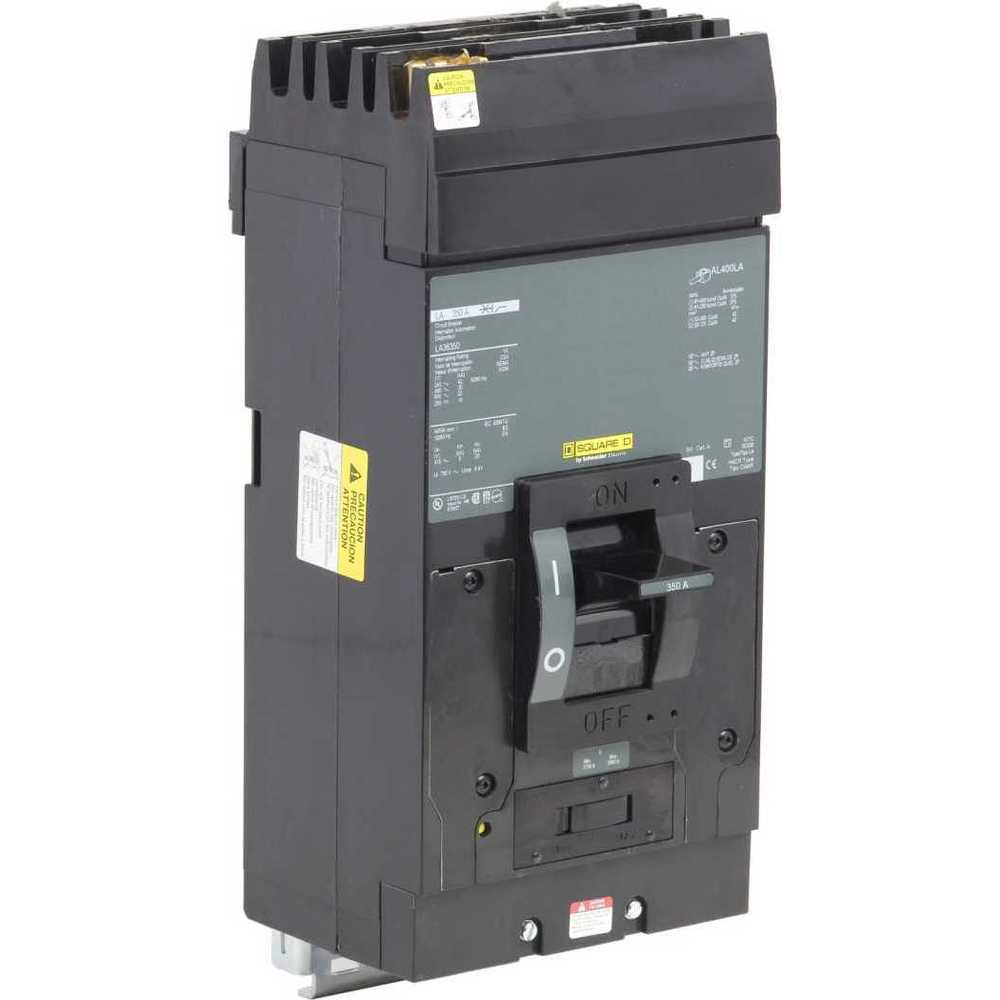

SQUARE D LAB36350 3-Pole Circuit Breaker, 350A, 3P, 30kAIC at 480V, 3 Phase
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Circuit Breaker |
| Amps | 350A |
| Frame Type | LA |
| Number Of Poles | 3 |
| Voltage | 600V |
| Voltage Type | AC |
Shipping Info:
| Ship height (cm) | 27.94 |
| Ship length (cm) | 14.83 |
| Ship width (cm) | 15.24 |
| Country of Origin | US |
Product Details:
- Square D LAB36350 circuit breaker designed for providing short-circuit & overload protection to sensitive electrical circuits
- Thermal-magnetic trip delivers both instantaneous and time-delayed current limiting functions
- I-Line style plug-in design for ensuring ease-of-installation and load-side lugs for hassle-free wiring
- Supports 600 kcmil - 1 AWG aluminium and copper wires
- IEC-approved, UL-listed and CSA-certified
Product Variants
| Product | Model | Number Of Poles | Amps | Phase Connection | Phase | Min. Wire Size | High Amp Trip Setting | Low Amp Trip Setting | Instantaneous Trip | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LA36400 | 3 | 400A | ABC | 3 | 1/0 AWG | 4000A | 2000A | Instantaneous | €7,321.47 | |
 |
LA36200 | 3 | 200A | ABC | 3 | 1/0 AWG | 2000A | 1000A | Instantaneous | €7,699.97 | |
 |
LA36300 | 3 | 300A | ABC | 3 | 1/0 AWG | 3000A | 1500A | Instantaneous | €7,316.65 | |
 |
LA36350 | 3 | 350A | ABC | 3 | 1/0 AWG | 3500A | 1750A | Adjustable | €7,385.10 | |
 |
LA26125AC | 2 | 125A | AC | 1 | 1 AWG | 1250A | 625A | Adjustable | €9,301.60 | |
|
LA26200AB | 2 | 200A | AB | 1 | 1 AWG | 2000A | 1000A | Adjustable | €10,009.53 | |
 |
LA26200AC | 2 | 200A | AC | 1 | 1 AWG | 2000A | 1000A | Adjustable | €6,929.03 |
