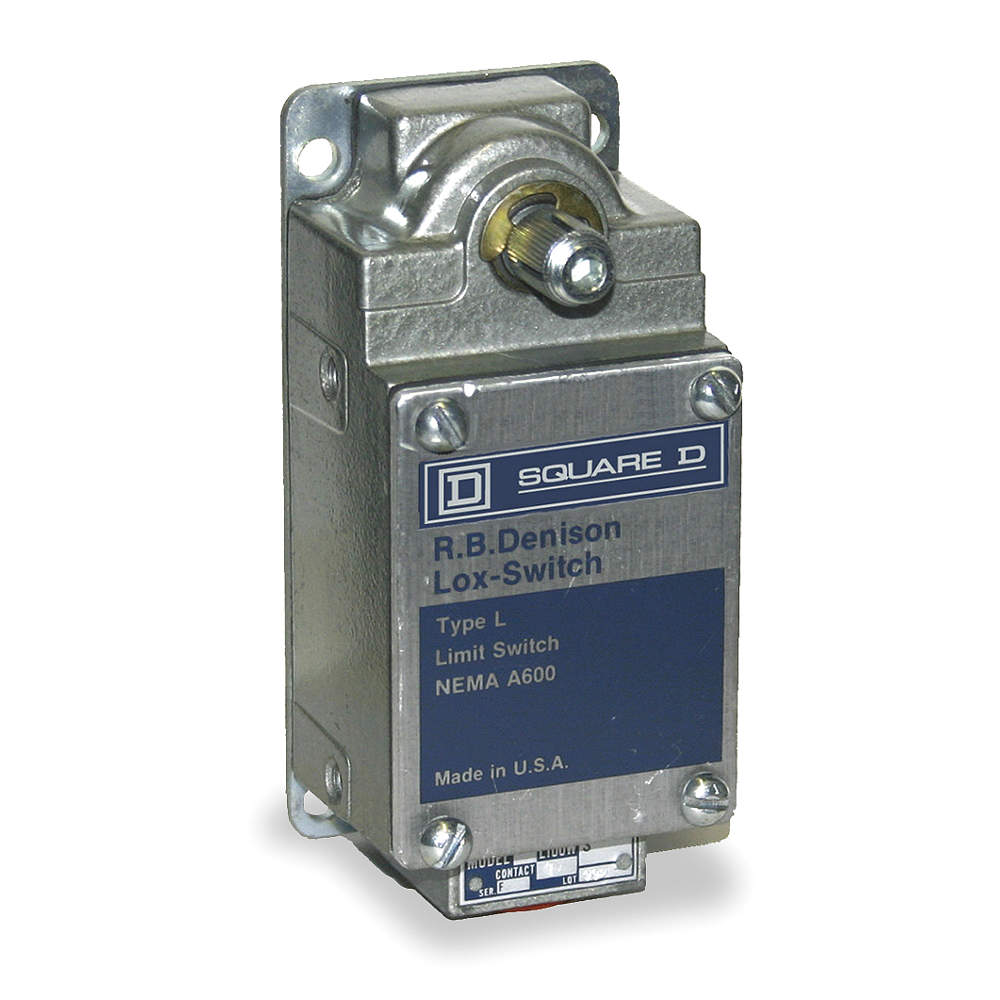

SQUARE D L100WNSL2M29 Limit Switch Side Actuator 2no 600vac/dc
Get it by Monday, Dec 22
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Limit Switch |
| Ac Contact Rating | 12.5A @ 240V, 20A @ 120V, 5A @ 600V, 6.25A @ 480V |
| Action | Maintained |
| Actuator Location | Side |
| Actuator Style | No Lever, Rotary Head |
| Amps | 20A |
| Body Depth | 2.41" |
| Body Height | 4.95" |
| Body Material | Aluminum |
| Body Width | 2.25" |
| Boot Sealed Actuator | No Boot Included |
| Contact Form | 2NO |
| Dc Contact Rating | 0.2A @ 600V, 1A @ 250V, 5A @ 120V |
| Depth | 2.1" |
| Directional Movement | CW |
| Electrical Connection | Screw Clamp Terminals |
| Height | 4.95" |
| Includes Actuator | Actuator Not Included |
| Ip Rating | IP67 |
| Manufacturer Warranty Length | 18 Months |
| Mounting Style | Surface |
| Movement | CCW/CW/Maintained CW/Neutral |
| Nema Enclosure Rating | Nema 1, Nema 2, Nema 4, Nema 12, Nema 13 |
| Nema Rating | NEMA 1, NEMA 4, NEMA 13 |
| Number Of Mounting Holes | 4 |
| Operating Temp. Range | -10°F to +185°F |
| Operating Temperature - Maximum | 185°F |
| Operating Temperature - Minimum | -10°F |
| Operating Torque - Maximum | 10.6 lbs.-in. |
| Overall Depth | 3.41" |
| Overall Height | 4.95" |
| Overall Width | 2 1/4" |
| Pretravel | 9° |
| Resistance Properties | Shock Resistant, Vibration Resistant |
| Series | L100 Series |
| Total Travel | 70° |
| Travel Length | 70° |
| Width | 2.31" |
Shipping Info:
| Ship weight (kg) | 0.68 |
| Ship height (cm) | 5.84 |
| Ship length (cm) | 12.95 |
| Ship width (cm) | 7.11 |
| HS code | 8536509055 |
| Country of Origin | MX |
