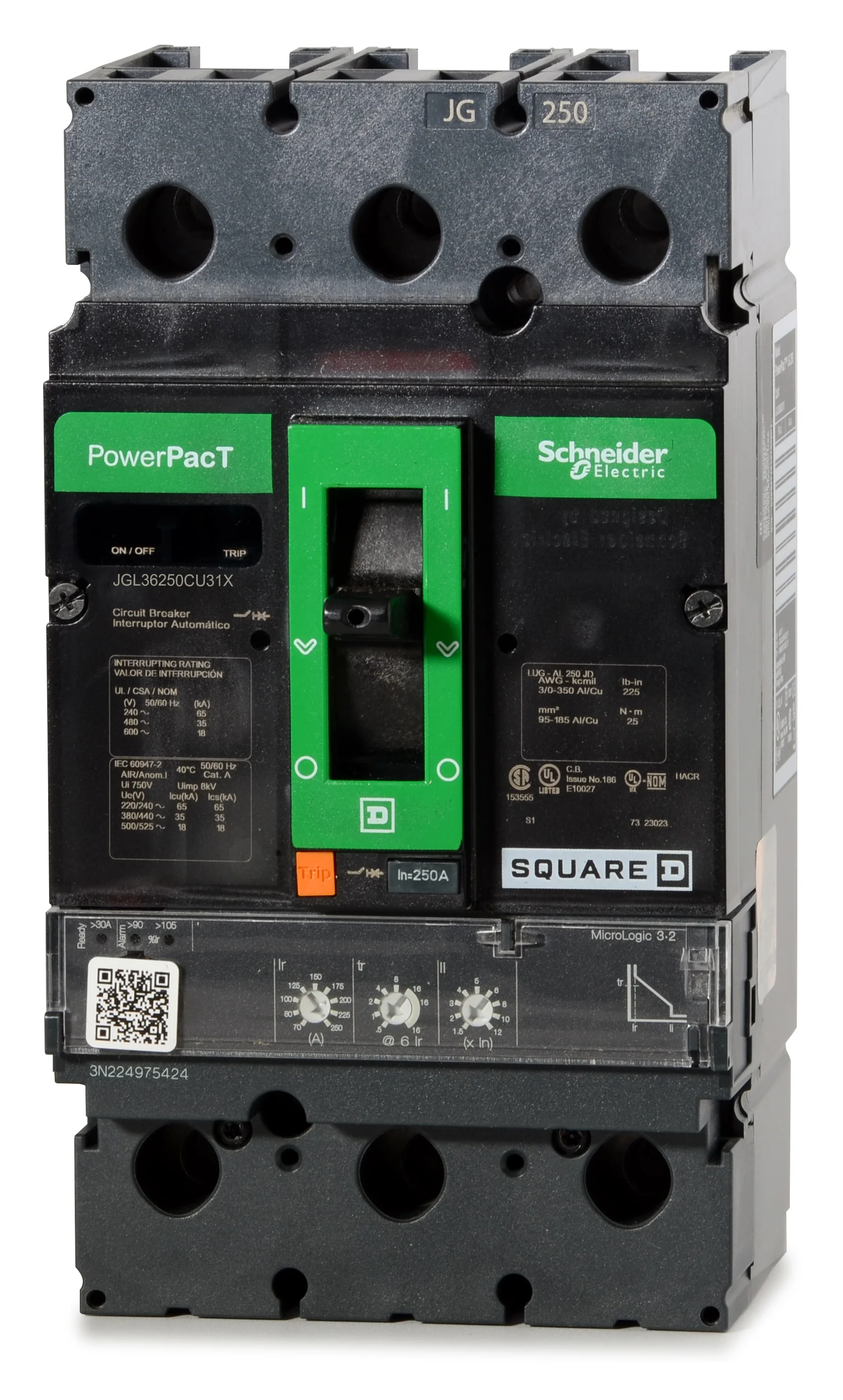

SQUARE D JGL36250CU31X Circuit Breaker, 250A, 600V, 3 Pole, JGL Frame Type
Item: EC2QCAModel: JGL36250CU31X
7 In Stock
Ships within 2 days via
5.00% off
€4,397.85 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Circuit Breaker |
| Ambient Air Temp. For Operation | -13°F to +158°F |
| Ambient Air Temp. For Storage | -58°F to +185°F |
| Application | Electrical Distribution |
| Circuit Breaker Mounting Style | Unit Mount |
| Comm Code Enhanced | 32613 |
| Connection Type | Feed Thru |
| Continuous Amps | 100% |
| Depth | 3 2/5" |
| Discount Schedule | 0DE2 |
| Electrical Connection | Lugs, Line, Load |
| Frame Type | JGL |
| Height | 7 1/2" |
| Ics Rated Service Breaking Capacity | 65 kA 220/240V AC 50/60 Hz, 35 kA 380/440/415V AC 50/60 Hz, 18 kA 500/525V AC 50/60 Hz, 20 kA 250V DC, 20 kA 500V DC |
| Interrupt Rating | 18 kAIC @ 480V |
| Ip Degree Of Protection | Front Cover IP40 |
| Local Signalling | Ready 1 LED Green) Alarm 1 LED 90 % Ir Orange) Alarm 1 LED 105 % Ir Red) Switched Off (Off) 1 Trip Indicator Green) |
| Long Time Pick-up Adjustment Range | 1/4" to 1" |
| Max. Air Rating | 65 kA |
| Max. Wire Size | 350 kcmil |
| Min. Wire Size | 3/0 AWG |
| Mounting Type | Unit |
| No. Of Poles | 3P |
| No. Of Slots | 5 |
| Operating Altitude | Less Than 6561.68 ft. (2000m) Without Derating 5000m With Derating |
| Pollution Degree | 3 IEC 60947-1 |
| Power Wire Stripping Length | 1" |
| Protection Type | Overload Protection, Short-Circuit Protection |
| Quality Labels | CE |
| Range | Powerpact |
| Series | JGL Series |
| Suitability For Isolation | Yes |
| Terminal Connection | Line And Load Side Lug |
| Terminal Identifier | AL250JD |
| Trip Type | Electronic |
| Ui Rated Insulation Voltage | 750V |
| Uimp Rated Impulse Withstand Voltage | 8 kV |
| Width | 4.09" |
Shipping Info:
| Ship weight (kg) | 2.25 |
| Ship height (cm) | 14.22 |
| Ship length (cm) | 22.1 |
| Ship width (cm) | 18.8 |
| Country of Origin | US |
