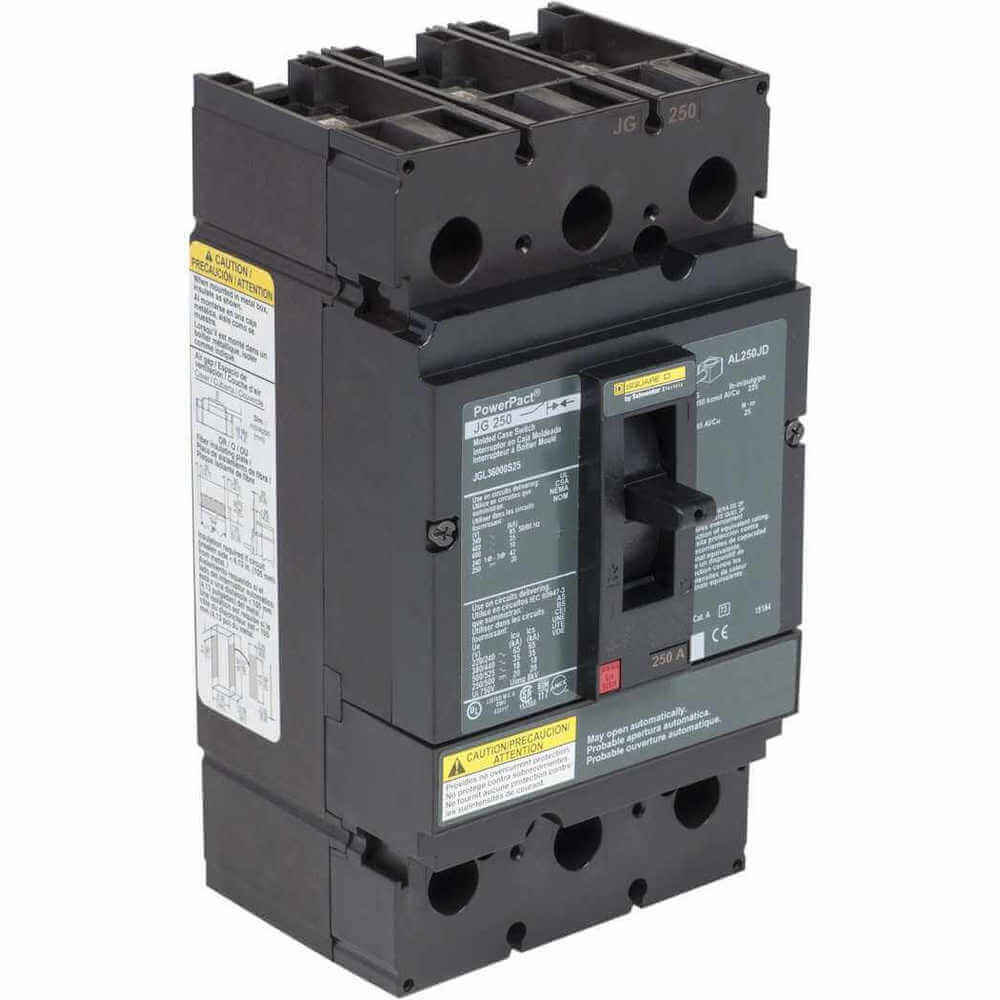

SQUARE D JGL36000S25 Circuit Breaker 250a 3p 600vac Lug
Item: AF6PUFModel: JGL36000S25Cross Ref: 1MBB7
7 In Stock
Ships within 2 days via
5.00% off
€2,931.91 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Circuit Breaker |
| Ac Voltage Rating | 600V AC |
| Amps | 250A |
| Awg Gauge | 3/0 AWG to 350 kcmil |
| Breaking Capacity Code | G |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Free Standing |
| Circuit Breaker Type | Shunt Trip |
| Component Type | Automatic Switch |
| Dc Voltage | 250V AC , 250V DC |
| Depth | 4 1/2" , 4.5" |
| Electrical Connection | Lugs, Line, Load |
| For Use With | I Line Panelboards |
| Frame Size | 250A, JG |
| Height | 7 13/25" , 7.52" |
| High Amp Trip Setting | 3125A |
| Instantaneous Trip | Fixed |
| Line Rated Amps | 250A |
| Low Amp Trip Setting | 3125A |
| Magnetic Tripping Amps | 3125A |
| Max. Air Rating | 65 kA At 240V AC |
| Max. Air Rating | Not Rated |
| Max. Wire Size | 350 MCM |
| Min. Wire Size | 3 AWG |
| Mounting | Free Standing |
| Mounting Mode | Unit Mount |
| No. Of Poles | 3 |
| Phase | 3 |
| Phase Connection | ABC |
| Rated Operational Voltage | 600V AC/250V DC |
| Returnability | Yes |
| Short-circuit Withstand | 65 kA, 240V, UL 489, 35 kA, 480V, UL 489, 18 kA, 600V, UL 489 |
| Terminal Connection | Line/Load Lug |
| Terminal Connection Type | Lug |
| Tightening Torque | 26 N-m |
| Trip Type | Thermal Magnetic |
| Trip Unit Technology | Magnetic |
| Width | 4.12" |
Shipping Info:
| Ship weight (kg) | 2.19 |
| Ship height (cm) | 18.8 |
| Ship length (cm) | 22.35 |
| Ship width (cm) | 14.73 |
| HS code | 8536509065 |
| Country of Origin | MX |
Product Details:
- Instantaneous Trip (Fixed)
Product Variants
| Product | Model | Height | No. Of Poles | Amps | Depth | Line Rated Amps | Mounting Mode | Rated Operational Voltage | Awg Gauge | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
JGL36250U31X | 7 1/2" | 3 | 250A | 5" | 250A | Unit Mount Lug | 600V | 3/0 AWG to 350 kcmil | €4,012.04 | |
|
JGL36250U33X | 7 1/2" | 3 | 250A | 5" | 250A | Unit Mount Lug | 600V | 3/0 AWG to 350 kcmil | €4,166.32 | |
 |
JGL36250U43X | 7 1/2" | 3 | 250A | 5" | 250A | Unit Mount Lug | 600V | 3/0 AWG to 350 kcmil | €9,345.77 | |
 |
JGL36250U44X | 7 1/2" | 3 | 250A | 5" | 250A | Unit Mount Lug | 600V | 3/0 AWG to 350 kcmil | €6,172.38 | |
 |
JGL26150 | 7 1/2" | 2 | 150A | 5" | 150A | Unit Mount Lug | 600V | 4 AWG to 4/0 AWG | €6,137.68 | |
|
JGL26200 | 7 1/2" | 2 | 200A | 5" | 200A | Unit Mount Lug | 600V | 3/0 AWG to 350 kcmil | €3,086.23 | |
|
JGL26225 | 7 1/2" | 2 | 225A | 5" | 225A | Unit Mount Lug | 600V | 3/0 AWG to 350 kcmil | €4,724.99 |
