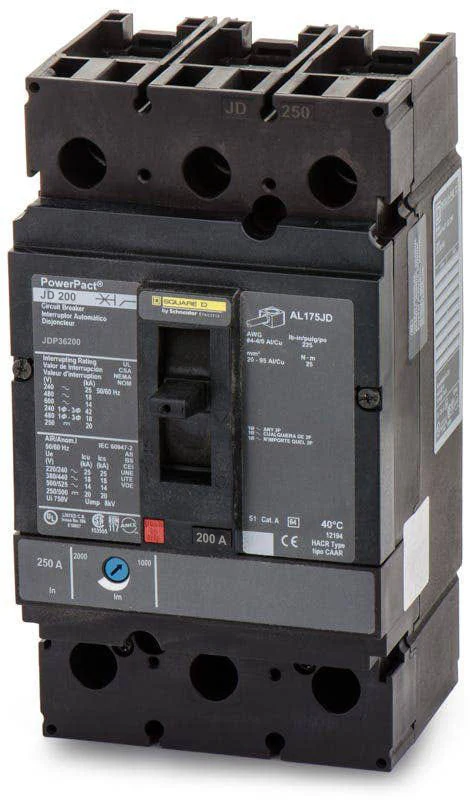

SQUARE D JDP36200 Circuit Breaker, 200A, 600V, 3 Pole, JDL Frame Type
Item: EC2QBUModel: JDP36200
7 In Stock
Ships within 2 days via
5.00% off
€2,902.52 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Circuit Breaker |
| Ac Voltage | 600V AC |
| Ambient Air Temp. For Operation | -13°F to +158°F |
| Ambient Air Temp. For Storage | -58°F to +185°F |
| Application | HACR Rated Applications, Distribution |
| Breaking Capacity Code | D |
| Comm Code Enhanced | 32613 |
| Continuous Amps | 80% |
| Depth | 3 2/5" |
| Discount Schedule | 0DE2 |
| Frame Type | J |
| Height | 7 1/2" |
| Ics Rated Service Breaking Capacity | 25 kA 220/240V AC 50/60 Hz, 18 kA 380/440/415V AC 50/60 Hz, 14 kA 500/525V AC 50/60 Hz, 20 kA 250V DC, 20 kA 500V DC |
| Interrupt Rating | 25 kA at 220/240V AC, 18 kA at 380/440/415/480V AC, 14 kA at 500/525/600V AC, 20 kA at 250/500V DC |
| Ip Degree Of Protection | Front Cover IP40 |
| Long Time Pick-up Adjustment Range | 1/4" to 1" |
| Magnetic Hold Amps | 1000A |
| Max. Air Rating | 25 kA |
| Max. Wire Size | 350 kcmil |
| Min. Wire Size | 3/0 AWG |
| Mounting Support | Lug |
| Mounting Type | Bolt On |
| No. Of Poles | 3P |
| No. Of Slots | 5 |
| Operating Altitude | Less Than 6561.68 ft. (2000m) Without Derating 5000m With Derating |
| Pollution Degree | 3 IEC 60947-1 |
| Power Wire Stripping Length | 1" |
| Product Or Component Type | Circuit Breaker |
| Prop 65 Warning | Warn |
| Protection Type | Overload Protection, Short-Circuit Protection |
| Quality Labels | CE |
| Range | Powerpact |
| Series | JDP Series |
| Suitability For Isolation | Yes |
| Terminal Connection | Lug, Terminal Nut |
| Terminal Identifier | AL250JD |
| Trip Type | Thermal Magnetic |
| Type | Molded Case, Thermal Magnetic |
| Ui Rated Insulation Voltage | 750V |
| Uimp Rated Impulse Withstand Voltage | 8 kV |
| Width | 4.09" |
Shipping Info:
| Ship weight (kg) | 2.38 |
| Ship height (cm) | 10.39 |
| Ship length (cm) | 19.1 |
| Ship width (cm) | 8.61 |
