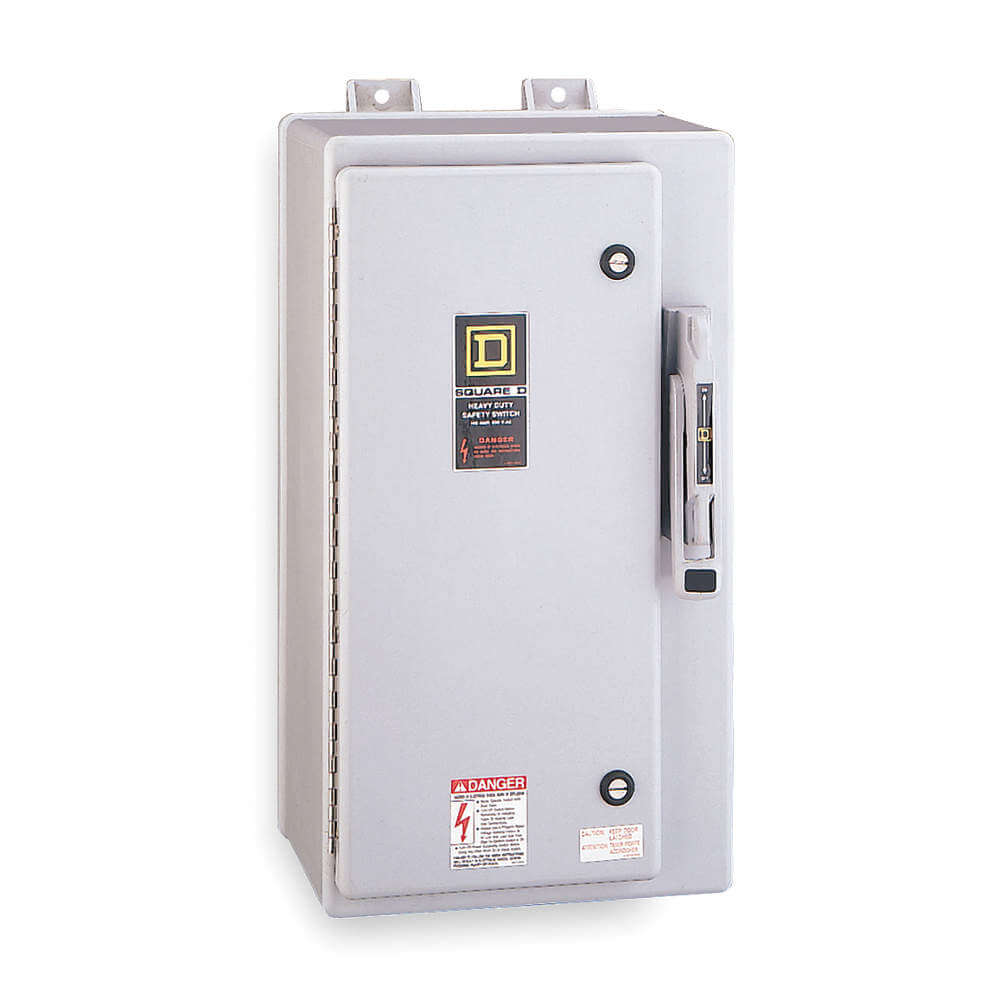

SQUARE D HU362DF Safety Switch 600VAC 3PST 60 Amps AC
Get it by Tuesday, Mar 31
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€4,434.87 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Safety Switch |
| Amps | 60A |
| Amps Rating | 60A |
| Contact Form | 3PST |
| Current Rating | 60A |
| Depth | 8 3/4" , 8.8" |
| Device Application | HeavyApplication |
| Disconnect Type | Non Fusible Disconnect |
| Duty | Heavy Duty |
| Duty Rating | Heavy Duty |
| Electrical Connection | Lugs |
| Enclosure Rating | NEMA 4X Fiberglass Reinforced Polyester |
| Environment | Indoor, Outdoor |
| Factory Installed Neutral | No |
| Height | 16 1/2" |
| Horsepower @ 240v Ac | 7 1/2 hp |
| Horsepower @ 480v Ac | 50 hp |
| Horsepower @ 600v Ac | 60 hp |
| Housing Material | Fiberglass Reinforced Polyester |
| Hp | 50 hp @ 600V |
| Material | Fiberglass Reinforced Polyester |
| Motor Hp | 50 hp at 480V AC 50-60 Hz for 3 Phase Motors, 60 hp at 600V AC 50-60 Hz for 3 Phase Motors, 30 hp at 600V DC |
| Mounting Type | Surface |
| Nema Enclosure Rating | NEMA 4X |
| Nema Enclosure Type | NEMA 4X |
| No. Of Poles | 3 |
| No. Of Wires | 3 |
| Number Of Poles | 3 |
| Number Of Wires | 3 |
| Phase | 3.0 |
| Protection Method | Non Fusible |
| Returnability | Yes |
| Tightening Torque | 50 lbf.in. @ 3 AWG, 45 lbf.in. @ 6 AWG to 4 AWG, 40 lbf.in. @ 0.013 sq. in. @ 8 AWG, 50 lbf.in. @ 0.003 sq. in.to 0.008 sq. in. @ 14 AWG to 10 AWG |
| Voltage Rating | 600V AC |
| Width | 11" |
| Wire Size | 14 AWG to 3 AWG, 12 AWG to 3 AWG |
Shipping Info:
| Ship weight (kg) | 9.19 |
| Ship height (cm) | 41.91 |
| Ship length (cm) | 22.23 |
| Ship width (cm) | 27.94 |
| Country of Origin | US |
Product Details:
- Fusible / Nonfusible : Nonfusible
- Metallic / Non-Metallic : Non-Metallic
Product Variants
| Product | Model | Phase | Number Of Poles | Number Of Wires | Contact Form | Environment | Nema Enclosure Rating | Amps | Duty | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HU361DS | 3.0 | 3 | 3 | 3PST | Indoor, Outdoor | NEMA 4, NEMA 4X, NEMA 5 | - | Heavy Duty | €2,469.82 | |
 |
HU361RB | 3.0 | 3 | 3 | 3PST | Indoor, Outdoor | NEMA 3R | - | Heavy Duty | €413.38 | |
|
HU362 | 3.0 | 3 | 3 | 3PST | Indoor | 1 | 60A | Heavy Duty | €427.88 | |
|
HU362DS | 3.0 | 3 | 3 | 3PST | Indoor, Outdoor | NEMA 4, NEMA 4X, NEMA 5 | 60A | Heavy Duty | €2,984.62 | |
|
HU362RB | 3.0 | 3 | 3 | 3PST | Indoor, Outdoor | NEMA 3R | 60A | Heavy Duty | €775.37 | |
 |
HU363 | 3.0 | 3 | 3 | 3PST | Indoor | 1 | 100A | Heavy Duty | €559.76 | |
 |
DTU361 | 3.0 | 3 | 3 | 3PDT | Indoor | 1 | - | Heavy Duty | €2,160.52 |
