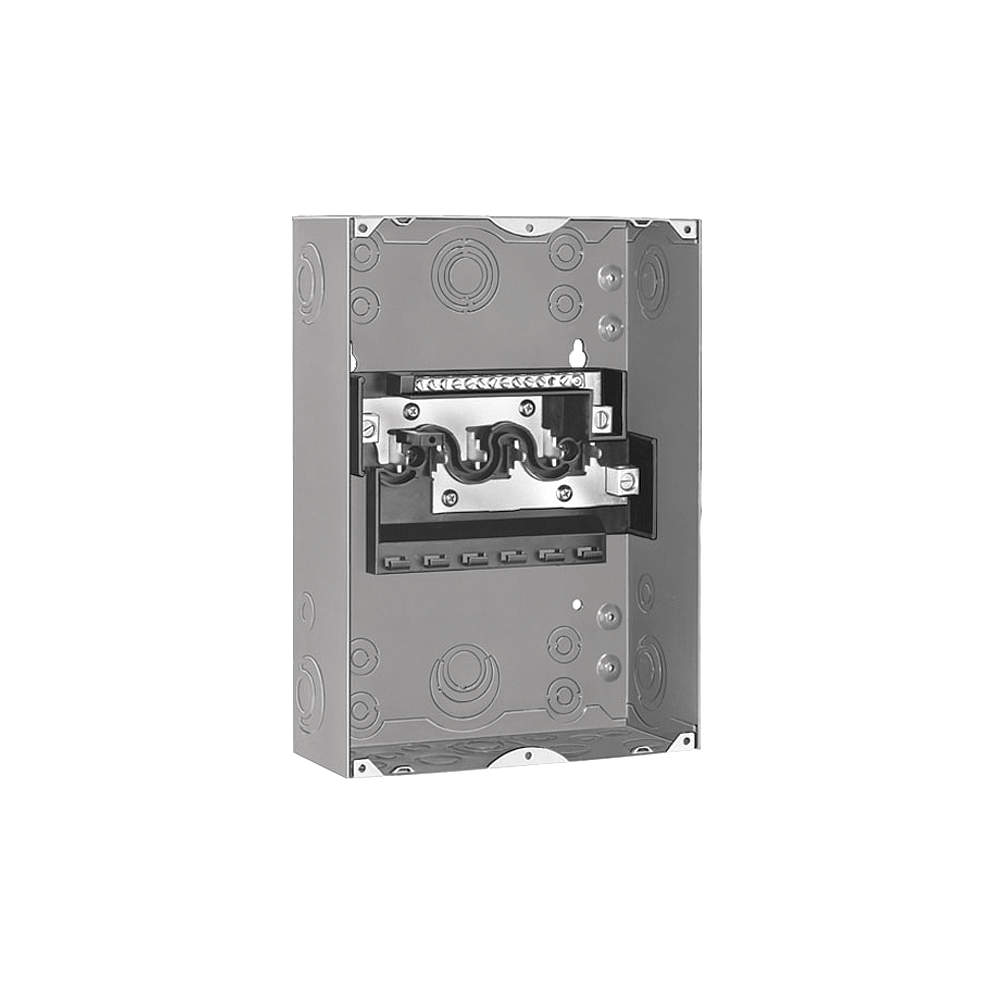

SQUARE D HOM612L100F Load Center Lug 100A 120/240VAC 1-Phase
Item: AG9FMTModel: HOM612L100FCross Ref: 1D519
7 In Stock
Ships within 2 days via
5.00% off
€102.88 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Load Center |
| Ambient Air Temp. For Operation | 23°F, 104°F |
| Amps | 100A |
| Amps Rating | 100A |
| Box No. | 4 |
| Bus Material | Tin Plated Aluminum |
| Bus Rated Current | 100A |
| Busbar Material | Aluminium |
| Busbar Material Finish | Tin Plated |
| Circuit Breaker Type | HOM |
| Color | Gray |
| Cover Attachment Style | Screw On |
| Cover Closure Method | Door Handle |
| Cover Type | Flush Cover |
| Depth | 3.8" , 4 1/4" |
| Electrical Connection | Lugs |
| Enclosure Material | Steel , Welded Sheet Steel |
| Enclosure Nema Rating | 1 |
| Enclosure Rating | NEMA 1 Indoor Enclosure |
| Enclosure Surface Finish | Enamel |
| Feed Location | Bottom/Top |
| For Use With | Square D Hom Circuit Breakers |
| Height | 12 3/5" , 12.56" |
| Included Enclosure Cover | Flush Cover |
| Load Center Type | Fixed Mains |
| Location | Indoor |
| Main Circuit Breaker Or Main Lug | Main Lug |
| Max. No. Of Single Pole Circuits | 12 |
| Max. No. Of Tandem Breakers | 6 |
| Max. Operating Temp. | 104°F |
| Max. Short Circuit Amps Rating | 10 kA |
| Min. Operating Temp. | 23°F |
| No. Of Spaces | 6 |
| Number Of Phases | 1 |
| Number Of Spaces | 6 |
| Phase | 1 |
| Recommended Flush Cover | Included |
| Recommended Ground Bar Kit | 1D374 |
| Returnability | Yes |
| Short Circuit Amps Rating | 10 kA |
| Short Circuit Current Rating | 10kA |
| Special Features | Green Premium Product, Mercury Free |
| Standards | Rohs Compliant, Ul Listed |
| Surface Finish | Baked Enamel Gray |
| Voltage | 120/240V AC |
| Voltage Rating | 120/240V AC |
| Width | 8.9" , 8.91" |
| Wire Size | 8 AWG to 1 AWG |
Shipping Info:
| Ship weight (kg) | 3.47 |
| Ship height (cm) | 10.69 |
| Ship length (cm) | 36.8 |
| Ship width (cm) | 27.2 |
| Country of Origin | MX |
Product Details:
- Enclosure NEMA Rating : 1
- Main Circuit Breaker or Main Lug : Main Lug
- Max. No. of Tandem Breakers : 6
- Bus Material : Tin Plated Aluminium
- Recommended Ground Bar Kit : 1D374
- Recommended Flush Cover : Included
- Special Features: Top or Bottom Feed
Product Variants
| Product | Model | Height | Amps | Enclosure Material | Recommended Ground Bar Kit | Included Enclosure Cover | Max. No. Of Tandem Breakers | Phase | Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

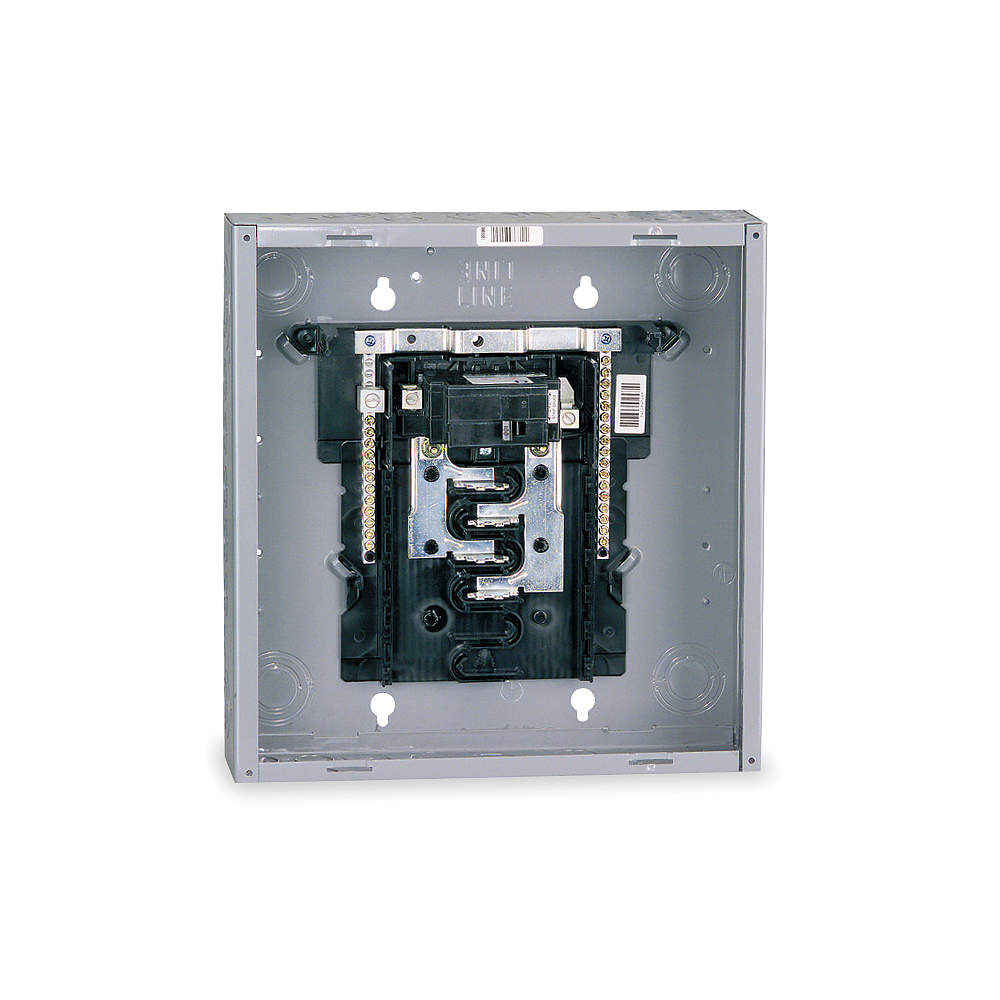

HOM24L70S | 9.3" | 70A | Steel | 5B717 | Surface Cover | 2 | 1 | 120/240V AC | €81.42 | |
 |

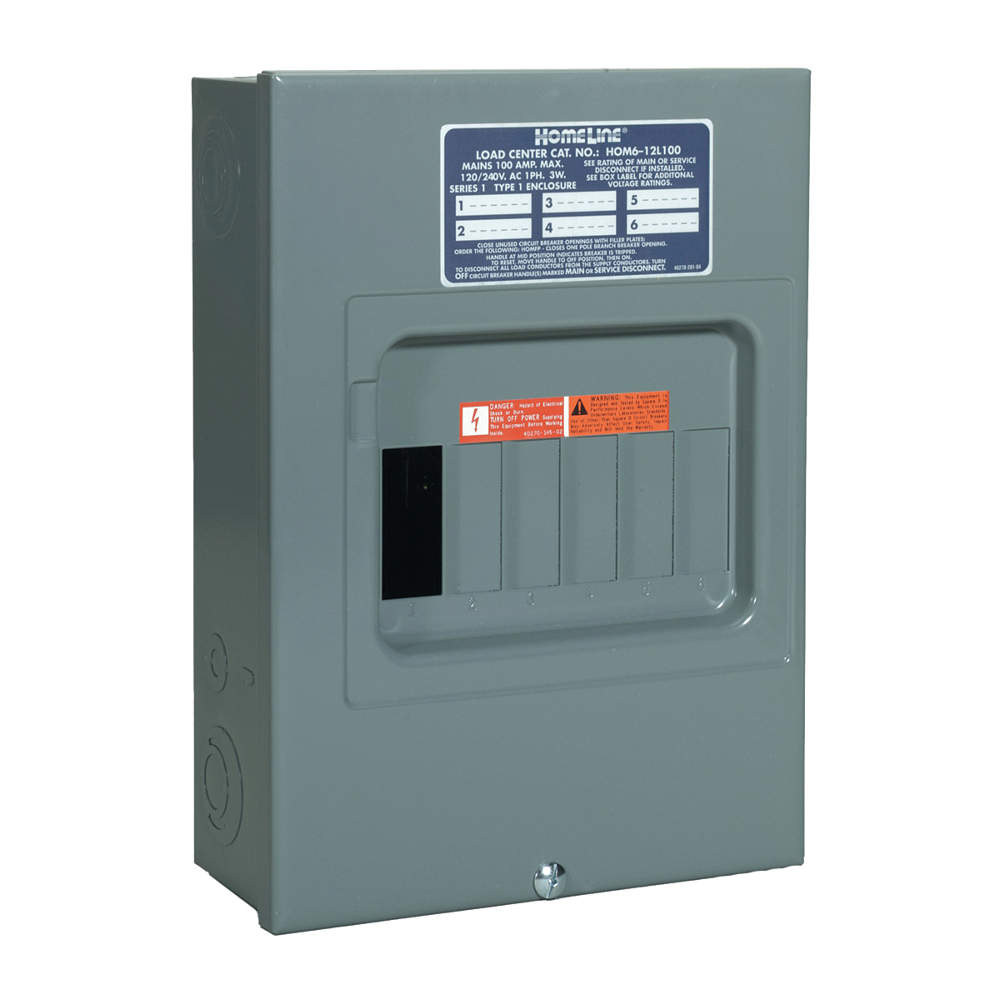

HOM612L100S | 12 3/5" | 100A | Steel | 1D374 | Surface Cover | 6 | 1 | 120/240V AC | €96.39 |
