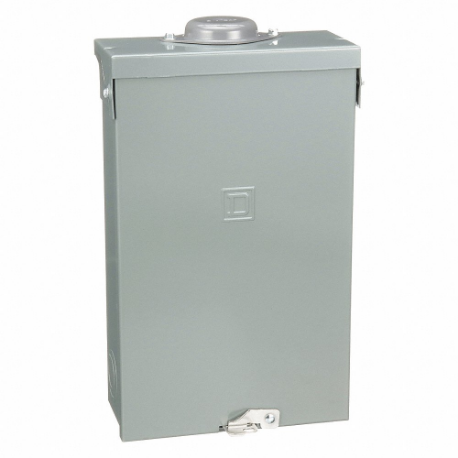

SQUARE D HOM48L125GRB Load Center
Get it by Tuesday, Aug 18
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€177.81 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Load Center |
| Ambient Air Temp. For Operation | 23°F, 104°F |
| Amps | 125A |
| Box No. | 15R |
| Bus Material | TiN Plated Aluminium Busbar |
| Bus Rated Amps | 125A |
| Busbar Material | Aluminium |
| Busbar Material Finish | Tin Plated |
| Circuit Breaker Type | Hom |
| Circuit Configuration | 1 Phase, 3 Wire |
| Comm Code Enhanced | 33110 |
| Configuration | Enclosed |
| Cover Type | Surface Cover |
| Depth | 4.3" |
| Discount Schedule | DE3C |
| Electrical Connection | Lugs |
| Enclosure Material | Welded Galvannealed Steel , Welded Steel |
| Enclosure Rating | NEMA 3R Weatherproof Enclosure |
| Enclosure Size Designation | 16R |
| Enclosure Type | NEMA 3R, Outdoor, Rainproof |
| Family Series | Square D Miscellaneous |
| Feed Location | Top |
| Ground Bar | Grounding Bar Included (Not Installed) |
| Ground Bar Kit | Grounding Bar Included (Not Installed), Grounding Bar 1 |
| Height | 14 4/5" |
| Load Center Type | Fixed Mains , Fixed Mains (Lugs) |
| Main Circuit Breaker Or Main Lug | Main Lugs |
| Marketing Trade Name | Homeline |
| Max. No. Of Single Pole Circuits | 8 |
| Max. No. Of Tandem Breakers | 4 |
| Max. Short Circuit Amps | 10 kA |
| Nema Enclosure Rating | NEMA 3R |
| Neutral Type | Bonded |
| No. Of Phase | 1 |
| No. Of Spaces | 4 |
| Provided Equipment | Grounding Bar 1 |
| Returnability | Yes |
| Series | HOM Series |
| Surface Finish | Baked Enamel Gray |
| Type | Fixed Main Lug |
| Voltage | 120/240V AC , 240V |
| Width | 8.9" |
| Wire Size | 14 AWG to 2/0 AWG, 12 AWG to 2/0 AWG |
| Wiring Configuration | 3 Wire |
Shipping Info:
| Ship weight (kg) | 5.06 |
| Ship height (cm) | 37.6 |
| Ship length (cm) | 10.8 |
| Ship width (cm) | 22.6 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Enclosure Material | Depth | Enclosure Size Designation | Box No. | Load Center Type | Enclosure Type | Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

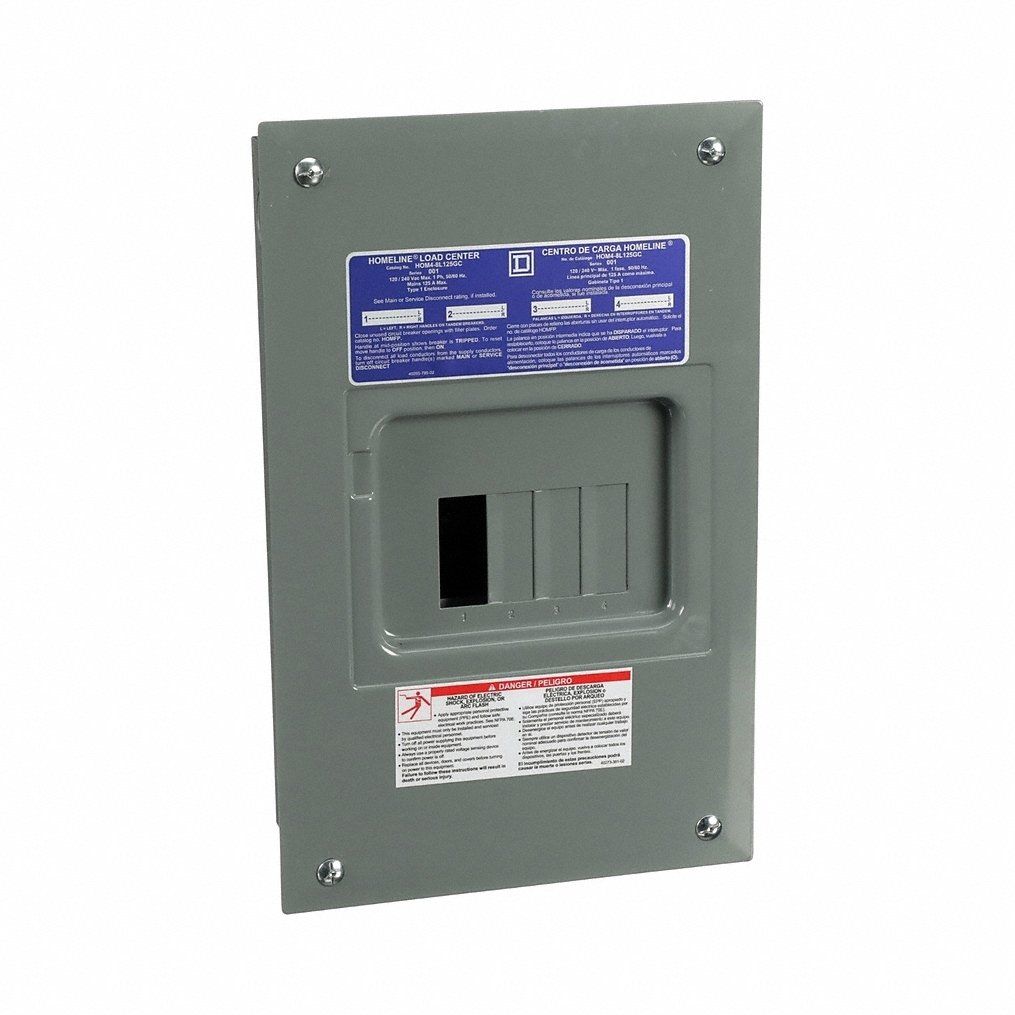

HOM48L125GC | 240V | Welded Sheet Steel | 3.8" | 21 | 21 | Fixed Mains | NEMA 1, Indoor | 14 4/5" | €138.11 |
