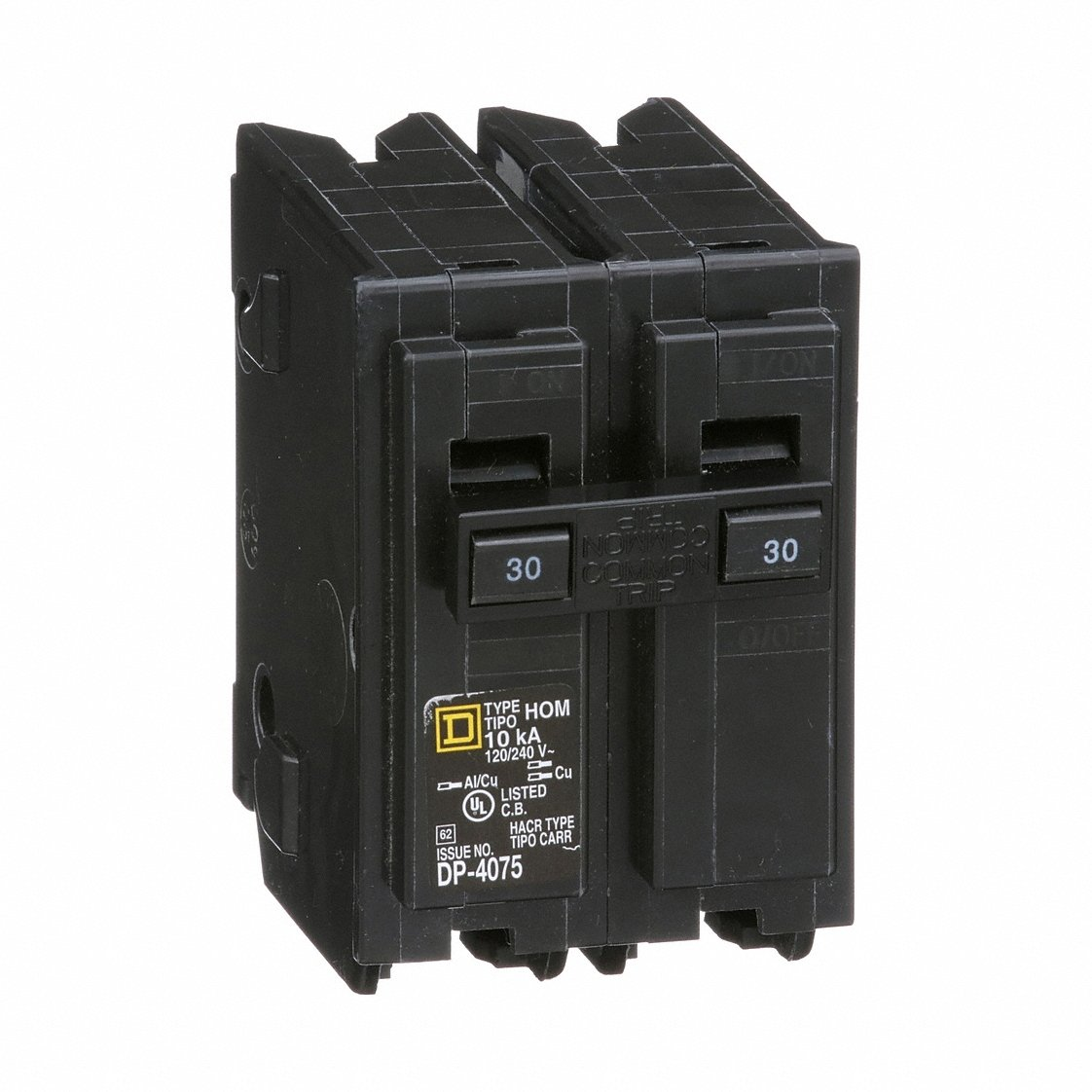

SQUARE D HOM2305219 Miniature Circuit Breaker 120/240V 30A
Item: CU4FVQModel: HOM2305219Cross Ref: 48M162
7 In Stock
Ships within 2 days via
5.00% off
€70.88 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Miniature Circuit Breaker |
| Ac Voltage Rating | 120/240VAC |
| Ambient Air Temp. For Operation | 104°F |
| Amps | 30A |
| Application | HACR Rated Applications |
| Circuit Breaker Mounting Style | Plug-In |
| Circuit Breaker Type | Standard |
| Comm Code Enhanced | 32112 |
| Discount Schedule | DE3D |
| Electrical Connection | Box Lugs |
| Max. Wire Size | 2 AWG |
| Mfr. Series | HOM |
| Min. Wire Size | 8 AWG |
| Mounting Type | Plug In |
| No. Of Poles | 2 , 2P |
| No. Of Spaces | 2 |
| Range | Homeline |
| Rating | Hacr Rated |
| Returnability | Yes |
| Series | HOM Series |
| Short Circuit Amps | 10 kA |
| Terminal Connection | Box Lugs |
| Tightening Torque | 35.4 lbf.in. @ 0.004 sq. in. to 0.02 sq. in. @ 16 AWG to 14 AWG, 35.4 lbf.in. @ 0.006 sq. in. to 0.03 sq. in. @ 12 AWG to 4 AWG |
| Type | Co Mmon Trip, Thermal Magnetic |
| Voltage | 120/240V AC |
| Wire Size | 8 AWG to 2 AWG |
Shipping Info:
| Ship weight (kg) | 0.32 |
| Country of Origin | MX |
Product Variants
| Product | Model | No. Of Poles | Amps | Voltage | Depth | Returnability | Electrical Connection | Rating | No. Of Spaces | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HOM115 | 1 | 15A | 120/240V AC | 2.98" | Yes | Clamp Terminal For 2 Cables | HACR and Switching Duty Rated | 1 | €13.57 | |
 |
HOM115GFI | 1 | 15A | 120V AC | 2.98" | Yes | Screw Clamp Terminal | HACR Rated | 1 | €133.36 | |
|
HOM120 | 1 | 20A | 120/240V AC | 2.98" | Yes | Clamp Terminal For 2 Cables | HACR and Switching Duty Rated | 1 | €13.57 | |
 |
HOM120GFI | 1 | 20A | 120V AC | 2.98" | Yes | Screw Clamp Terminal | HACR Rated | 1 | €133.36 | |
|
HOM130 | 1 | 30A | 120/240V AC | 2.98" | Yes | Clamp Terminal For 2 Cables | HACR Rated | 1 | €13.57 | |
 |
HOM140 | 1 | 40A | 120/240V AC | 2.98" | Yes | Box Lugs | HACR Rated | 1 | €16.90 | |
|
HOM150 | 1 | 50A | 120/240V AC | 2.98" | Yes | Box Lugs | HACR Rated | 1 | €16.90 |
