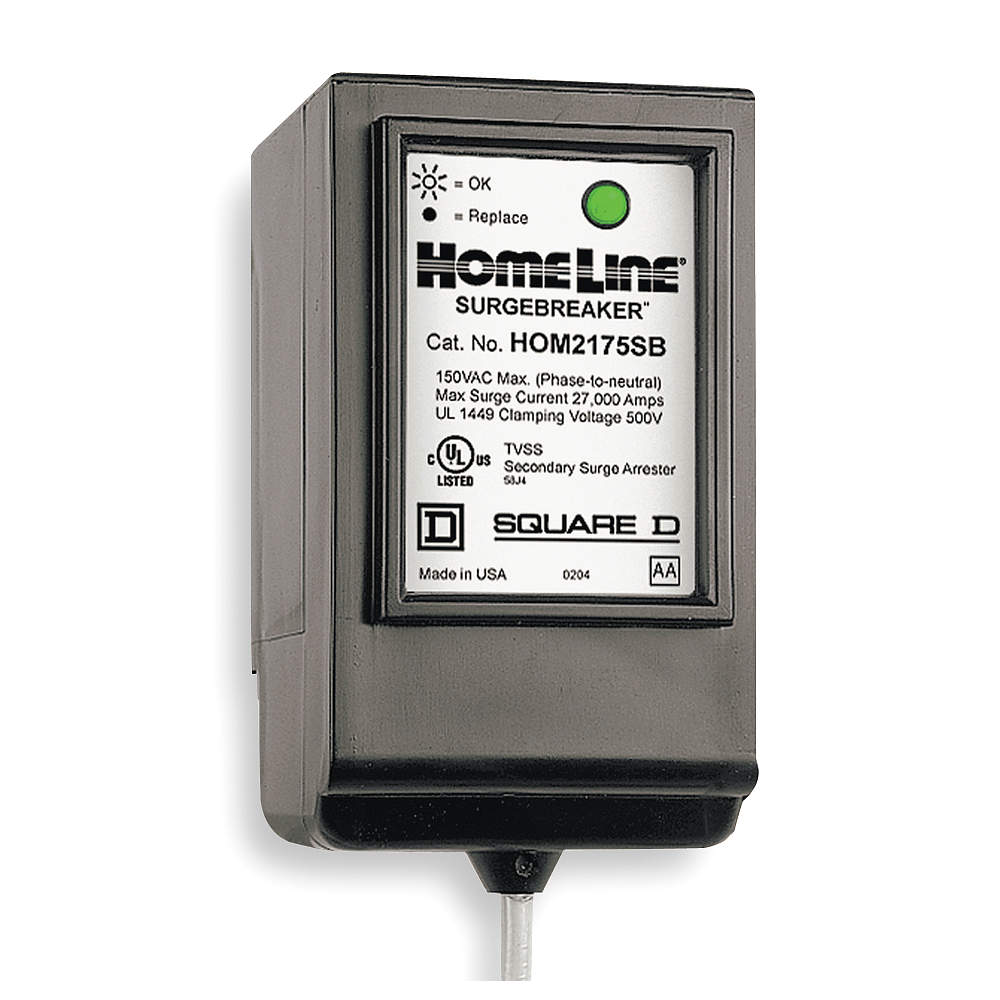

SQUARE D HOM2175SB Spd 2 Pole
Item: AG6QEEModel: HOM2175SBCross Ref: 3XB85
7 In Stock
Ships within 2 days via
5.00% off
€222.03 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Panel Mount Surge Suppressor |
| Ambient Operating | 149°F |
| Amps | 10 kA , 5 kA |
| Basic Material | Nonmetallic |
| Color | Black |
| Depth | 2.6" |
| Enclosure Material | Plastic |
| Enclosure Nema Rating | 2 |
| Enclosure Rating | NEMA 1 |
| Filter Type | Nonfiltering |
| Filtering | No |
| Height | 3.7" |
| Joules | 900J |
| Length | 3.7" |
| Local Signalling | 1 LED Green Normal Operation |
| Location Type | 2 |
| Material | Plastic |
| Max. Continuing Operating Voltage | 150 |
| Max. Continuing Operating Voltage | 150V AC |
| Max. Operating Temp. | 149°F |
| Max. Surge Amps Per Mode | 22.5 kA |
| Max. Surge Amps Per Phase | 22.5 kA |
| Max. Surge Current Per Mode | 22.5kA |
| Max. Surge Current Per Phase | 22.5kA |
| Mcov | 150/300V |
| Modes Of Protection | 3 |
| Modular | No |
| Mounting Style | For HOM Load Centers |
| No. Of Phase | 1 |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Nominal Discharge Amps | 5 kA |
| Nominal Discharge Current | 5kA |
| Phase | 1 |
| Rated Joules | 900 |
| Returnability | Yes |
| Sccr | 25 kA |
| Short Circuit Amps | 22 kA |
| Short Circuit Current Rating | 22kA |
| Surge Amps | 25 kA |
| System Connection | Parallel |
| Type | Plug In |
| Ul Spd Type | Type 2 |
| Voltage | 120/240V AC |
| Voltage Protection Rating | 700 V (L-N), 1500 V (L-L) |
| Width | 2" |
Shipping Info:
| Ship weight (kg) | 0.36 |
| Ship height (cm) | 5.59 |
| Ship length (cm) | 13.46 |
| Ship width (cm) | 6.86 |
| HS code | 8536308000 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Voltage Protection Rating | Max. Continuing Operating Voltage | Nominal Discharge Amps | Enclosure Rating | Amps | Phase | Modes Of Protection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

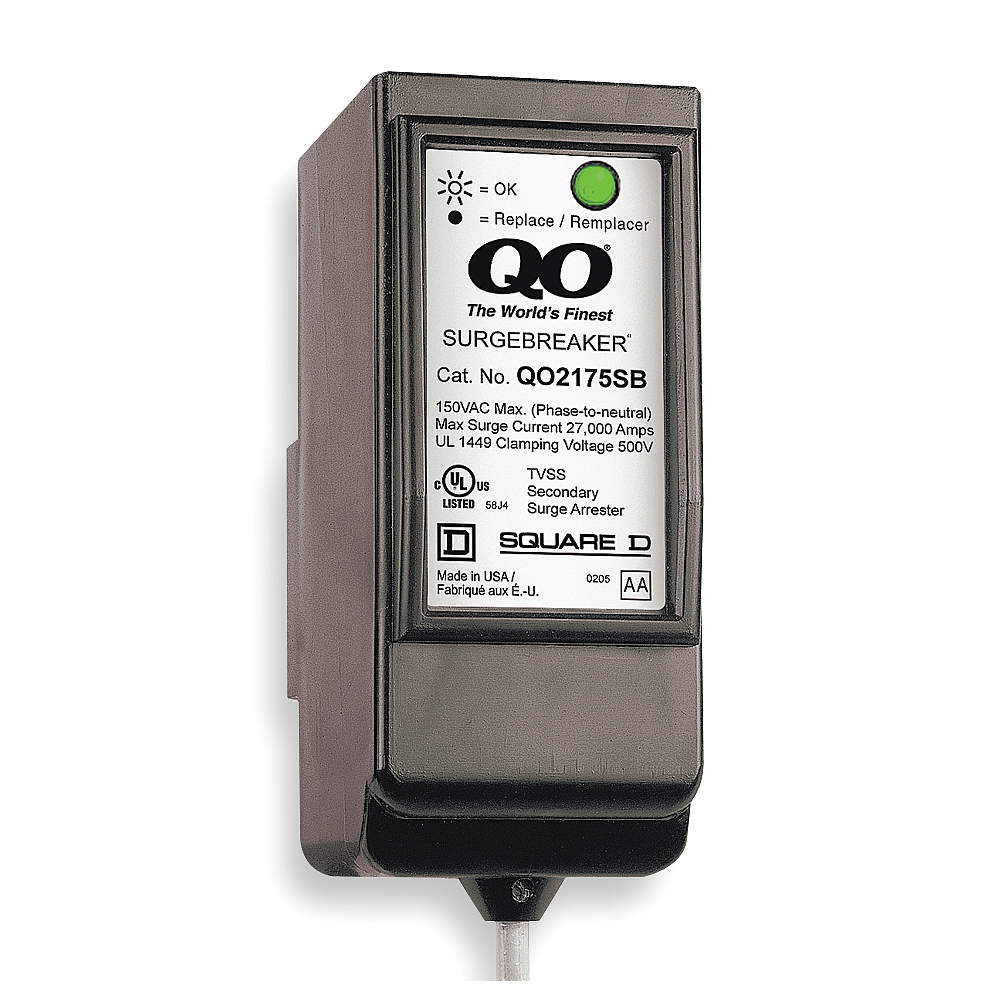

QO2175SB | 120/240V AC | 699 V (L-N), 1500 V (L-L) | 150V | 10 kA | NEMA 2 | - | 1 | 3 | €151.45 |
