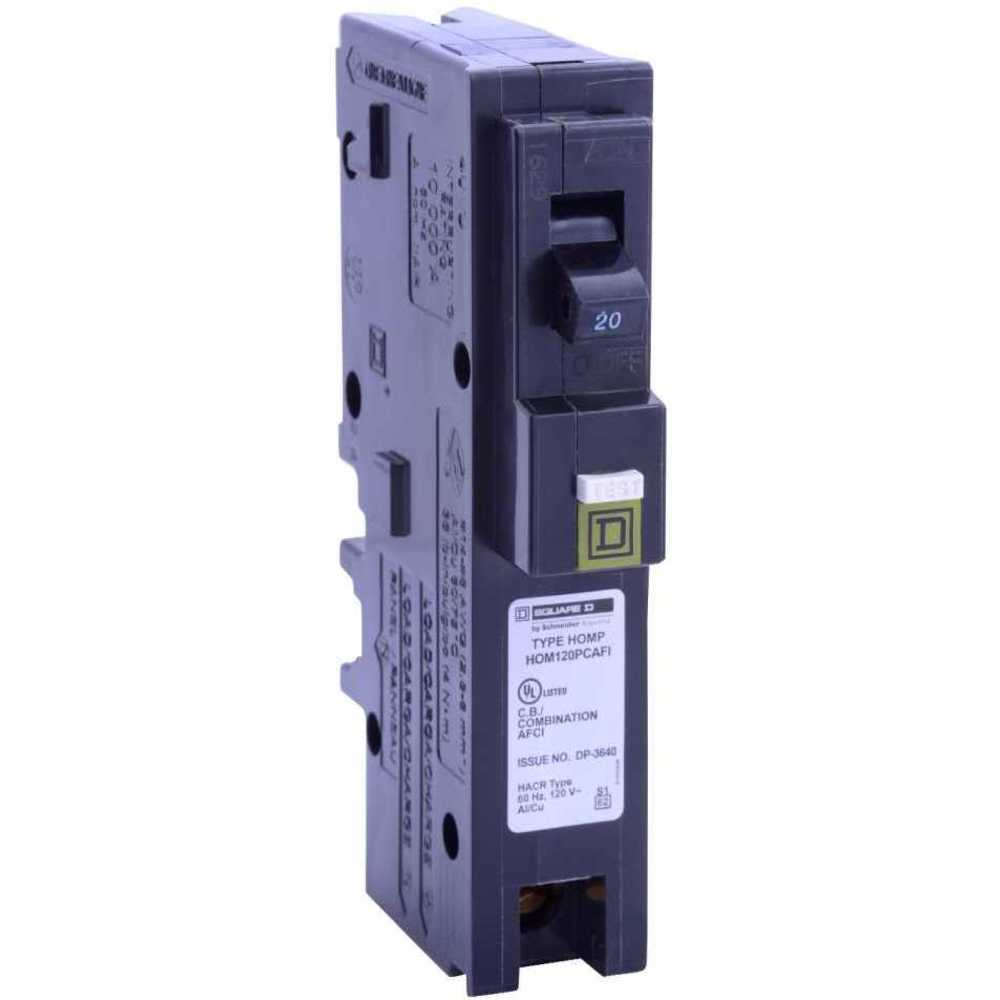

SQUARE D HOM120PCAFI Plug In Circuit Breaker Hom 20 Amp 120vac 1p 10kaic@120v
Item: AG8PYYModel: HOM120PCAFI
7 In Stock
Ships within 2 days via
5.00% off
€77.78 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Plug In Circuit Breaker |
| Aic Rating | 10 kAIC @ 120V |
| Ambient Air Temp. For Operation | 104°F |
| Amps Rating | 20A |
| Circuit Breaker Type | Combination Arc-Fault |
| Connections Terminals | Plug On Neutral |
| Depth | 2.98" |
| Electrical Connection | Clamp Terminal For 2 Cables |
| Frame Type | Home |
| Height | 3.13" |
| Mounting Type | Plug In |
| No. Of Poles | 1 |
| No. Of Spaces | 1 |
| Number Of Poles | 1 |
| Ratings | HACR Rated |
| Returnability | Yes |
| Short Circuit Current Rating | 10 kA |
| Tightening Torque | 35.4 lbf.in. @ 0.004 sq. in. to 0.009 sq. in. @ 14 AWG to 8 AWG |
| Voltage | 120V AC |
| Voltage Rating | 120V AC |
| Voltage Type | AC |
| Width | 1" |
| Wire Size | 14 AWG to 8 AWG |
Shipping Info:
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 12.95 |
| Ship width (cm) | 3.56 |
| Country of Origin | MX |
Product Variants
| Product | Model | Number Of Poles | Amps | Ac Voltage Rating | Max. Air Rating | Depth | Dc Voltage | Terminal Connection Type | Terminal Connection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HOM115 | 1 | 15A | 120V AC | 10 kA At 120V AC | 2.98" | Not Rated | - | Screw Clamp | €13.57 | |
 |
HOM115GFI | 1 | 15A | 120V AC | 10 kA At 120V AC | 2.98" | Not Rated | Screw Clamp | Screw Clamp | €133.36 | |
|
HOM120 | 1 | 20A | 120V AC | 10 kA At 120V AC | 2.98" | Not Rated | Screw Clamp | Screw Clamp | €13.57 | |
 |
HOM120GFI | 1 | 20A | 120V AC | 10 kA At 120V AC | 2.98" | Not Rated | Screw Clamp | Screw Clamp | €133.36 | |
|
HOM130 | 1 | 30A | 120V AC | 10 kA At 120V AC | 2.98" | Not Rated | Screw Clamp | Screw Clamp | €13.57 | |
 |
HOM140 | 1 | 40A | 120V AC | 10 kA At 120V AC | 2.98" | Not Rated | Lug | Lug | €16.90 | |
|
HOM150 | 1 | 50A | 120V AC | 10 kA At 120V AC | 2.98" | Not Rated | Lug | Lug | €16.90 |
