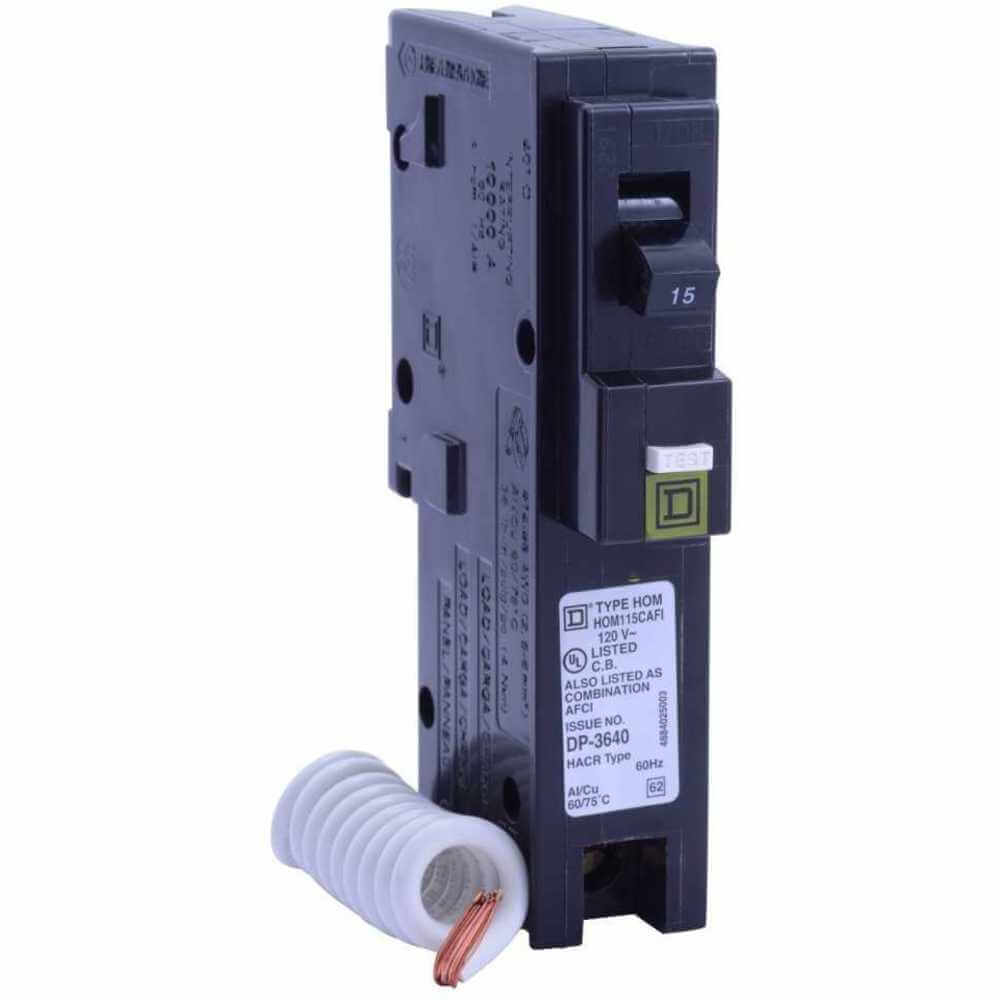

SQUARE D HOM115CAFI Plug In Circuit Breaker 15a 1 Pole 10ka 240v
Item: AF6FXJModel: HOM115CAFICross Ref: 12R452
7 In Stock
Ships within 2 days via
5.00% off
€107.29 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Plug In Circuit Breaker |
| Ac Voltage Rating | 120V AC |
| Ambient Air Temp. For Operation | 104°F |
| Amps | 15A |
| Circuit Breaker Actuator | Paddle |
| Circuit Breaker Mounting Style | Plug In |
| Circuit Breaker Type | Combination ARC Fault Circuit Interrupter , Combination ARC-Fault |
| Compatible Panelboard/load Center Series | Series HOM |
| Connections Terminals | Pigtail Neutral |
| Dc Voltage | Not Rated |
| Depth | 2.98" |
| Electrical Connection | Screw Clamp Terminal |
| For Use With | Homeline Load Center |
| Frame Size | 100A/HOM |
| Height | 3.13" |
| Length | 3.13" |
| Max. Air Rating | 10kA |
| Max. Air Rating | 10 kA At 120V AC |
| Max. Operating Temp. | 104°F |
| Max. Wire Size | 8 AWG |
| Min. Operating Temp. | 77°F |
| Min. Wire Size | 14 AWG |
| Mounting Type | Plug In |
| No. Of Poles | 1 |
| No. Of Spaces | 1 |
| Phase | 1 |
| Rating | HACR Rated |
| Returnability | Yes |
| Short Circuit Amps | 10 kA |
| Terminal Connection | Screw Clamp |
| Terminal Connection Type | Screw Clamp |
| Tightening Torque | 35.4 lbf.in. @ 0.004 sq. in. to 0.009 sq. in. @ 14 AWG to 8 AWG |
| Voltage | 120V AC |
| Width | 1" |
| Wire Size | 14 AWG , 14 AWG to 8 AWG |
Shipping Info:
| Ship weight (kg) | 0.29 |
| Ship height (cm) | 3.3 |
| Ship length (cm) | 13.97 |
| Ship width (cm) | 10.16 |
| HS code | 8536200020 |
| Country of Origin | MX |
Product Variants
| Product | Model | No. Of Poles | Amps | Voltage | Depth | Returnability | Electrical Connection | Rating | No. Of Spaces | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HOM115 | 1 | 15A | 120/240V AC | 2.98" | Yes | Clamp Terminal For 2 Cables | HACR and Switching Duty Rated | 1 | €13.57 | |
 |
HOM115GFI | 1 | 15A | 120V AC | 2.98" | Yes | Screw Clamp Terminal | HACR Rated | 1 | €133.36 | |
|
HOM120 | 1 | 20A | 120/240V AC | 2.98" | Yes | Clamp Terminal For 2 Cables | HACR and Switching Duty Rated | 1 | €13.57 | |
 |
HOM120GFI | 1 | 20A | 120V AC | 2.98" | Yes | Screw Clamp Terminal | HACR Rated | 1 | €133.36 | |
|
HOM130 | 1 | 30A | 120/240V AC | 2.98" | Yes | Clamp Terminal For 2 Cables | HACR Rated | 1 | €13.57 | |
 |
HOM140 | 1 | 40A | 120/240V AC | 2.98" | Yes | Box Lugs | HACR Rated | 1 | €16.90 | |
|
HOM150 | 1 | 50A | 120/240V AC | 2.98" | Yes | Box Lugs | HACR Rated | 1 | €16.90 |
