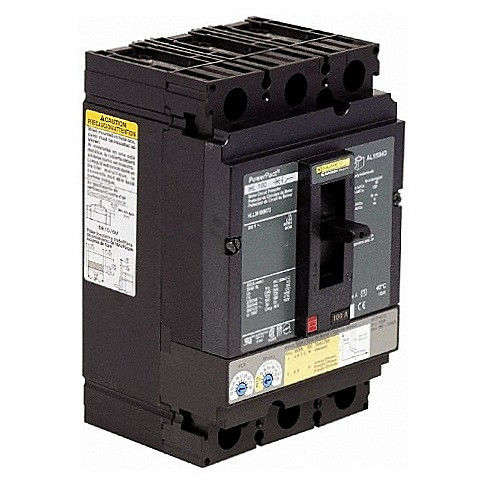

SQUARE D HLL36030M71AA Molded Case Circuit Breaker, 30A, Auxiliary Switch
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Circuit Breaker |
| Amps | 30A |
| Frame Type | HLL |
| No. Of Poles | 3 |
| Voltage | 600V |
| Voltage Type | AC |
Shipping Info:
| Country of Origin | US |
Product Details:
- Square D HLL36030M71AA motor circuit protector designed to provide short circuit protection to prevent motor damage
- Electronic trip unit with adjustable tripping settings (both time & current) allowing transient initial in-rush current without nuisance tripping of the motor circuit during start-up operation
- Unit mount design with load & line lugs capable of accommodating wires (copper / aluminium) of sizes ranging between 14 & 3 AWG, providing flexibility and ease of installation
- Supports a field-installable 1A / 1B auxiliary switch for monitoring & remotely indicating the contacts in open / closed position
- UL-listed and IEC-approved
Product Variants
| Model | No. Of Poles | Amps | Line Rated Amps | Breaking Capacity | Returnability | Component Type | Magnetic Tripping Amps | Magnetic Hold Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| HLL26015 | 2 | - | 15A | 125 kA 240V AC 50/60 Hz UL 489, 100 kA 480V AC 50/60 Hz UL 489, 50 kA 600V AC 50/60 Hz UL 489, 20 kA 250V DC UL 489, 50 kA 500V DC UL 489 | Yes | Circuit Breaker | 750A | 350A | €6,164.40 | |
| HLL26020 | 2 | - | 20A | 125 kA 240V AC 50/60 Hz UL 489, 100 kA 480V AC 50/60 Hz UL 489, 50 kA 600V AC 50/60 Hz UL 489, 20 kA 250V DC UL 489, 50 kA 500V DC UL 489 | Yes | Circuit Breaker | 750A | 350A | €925.88 | |
| HLL26030 | 2 | - | 30A | 125 kA 240V AC 50/60 Hz UL 489, 100 kA 480V AC 50/60 Hz UL 489, 50 kA 600V AC 50/60 Hz UL 489, 20 kA 250V DC UL 489, 50 kA 500V DC UL 489 | Yes | Circuit Breaker | 750A | 350A | €4,111.80 | |
| HLL26035 | 2 | - | 35A | 125 kA 240V AC 50/60 Hz UL 489, 100 kA 480V AC 50/60 Hz UL 489, 50 kA 600V AC 50/60 Hz UL 489, 20 kA 250V DC UL 489, 50 kA 500V DC UL 489 | Yes | Circuit Breaker | 850A | 400A | - | RFQ
|
| HLL26040 | 2 | - | 40A | 125 kA 240V AC 50/60 Hz UL 489, 100 kA 480V AC 50/60 Hz UL 489, 50 kA 600V AC 50/60 Hz UL 489, 20 kA 250V DC UL 489, 50 kA 500V DC UL 489 | No | Circuit Breaker | 850A | 400A | - | RFQ
|
| HLL26045 | 2 | - | 45A | 125 kA 240V AC 50/60 Hz UL 489, 100 kA 480V AC 50/60 Hz UL 489, 50 kA 600V AC 50/60 Hz UL 489, 20 kA 250V DC UL 489, 50 kA 500V DC UL 489 | Yes | Circuit Breaker | 850A | 400A | - | RFQ
|
| HLL26050 | 2 | - | 50A | 125 kA 240V AC 50/60 Hz UL 489, 100 kA 480V AC 50/60 Hz UL 489, 50 kA 600V AC 50/60 Hz UL 489, 20 kA 250V DC UL 489, 50 kA 500V DC UL 489 | Yes | Circuit Breaker | 850A | 400A | €2,739.00 |
