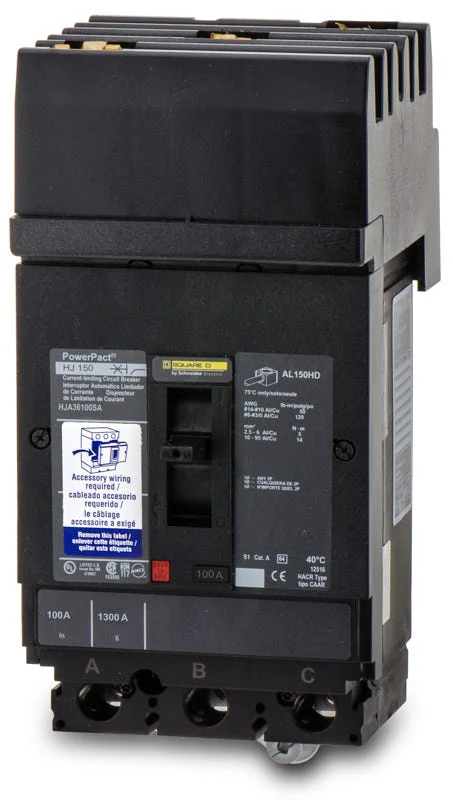

SQUARE D HJA36100SA Circuit Breaker, 100A, 600V, 3 Pole, HJA Frame Type
Item: EC2QAZModel: HJA36100SA
In Stock : 2 Units Get it by Friday, Aug 21
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Circuit Breaker |
| Ambient Air Temp. For Operation | -13°F to +158°F |
| Ambient Air Temp. For Storage | -58°F to +185°F |
| Application | Power Distribution |
| Breaking Capacity Code | J |
| Color | Black |
| Comm Code Enhanced | 32613 |
| Contactor Type | Magnetic |
| Continuous Amps | 80% |
| Control Type | Toggle |
| Depth | 3 2/5" |
| Discount Schedule | 0DE2 |
| Height | 6 2/5" |
| Ics Rated Service Breaking Capacity | 100 kA 220/240V AC 50/60 Hz, 65 kA 380/440/415V AC 50/60 Hz, 25 kA 500/525V AC 50/60 Hz, 20 kA 250V DC, 20 kA 500V DC |
| Ip Degree Of Protection | Front Cover IP40 IEC 60529 |
| Magnetic Hold Amps | 900A |
| Magnetic Tripping Amps | 1700A |
| Mounting Height | 4 1/2" |
| Mounting Mode | I Line Bracket |
| Mounting Support | Bracket |
| No. Of Poles | 3P |
| No. Of Slots | 5 |
| Operating Altitude | Less Than 6561.68 ft. (2000m) Without Derating 5000m With Derating |
| Phase Connection | ABC |
| Pollution Degree | 3 IEC 60947-1 |
| Power Wire Stripping Length | 3/5" |
| Product Or Component Type | Circuit Breaker |
| Quality Labels | CE |
| Range | Powerpact |
| Series | HJA Series |
| Suitability For Isolation | Yes |
| Terminal Identifier | AL150HD |
| Trip Setting | 900-1700A |
| Ui Rated Insulation Voltage | 750V |
| Uimp Rated Impulse Withstand Voltage | 8 kV |
| Voltage | 600V |
| Width | 4.09" |
Shipping Info:
| Ship weight (kg) | 2.7 |
| Ship height (cm) | 16.26 |
| Ship length (cm) | 8.64 |
| Ship width (cm) | 10.39 |
| Country of Origin | US |
