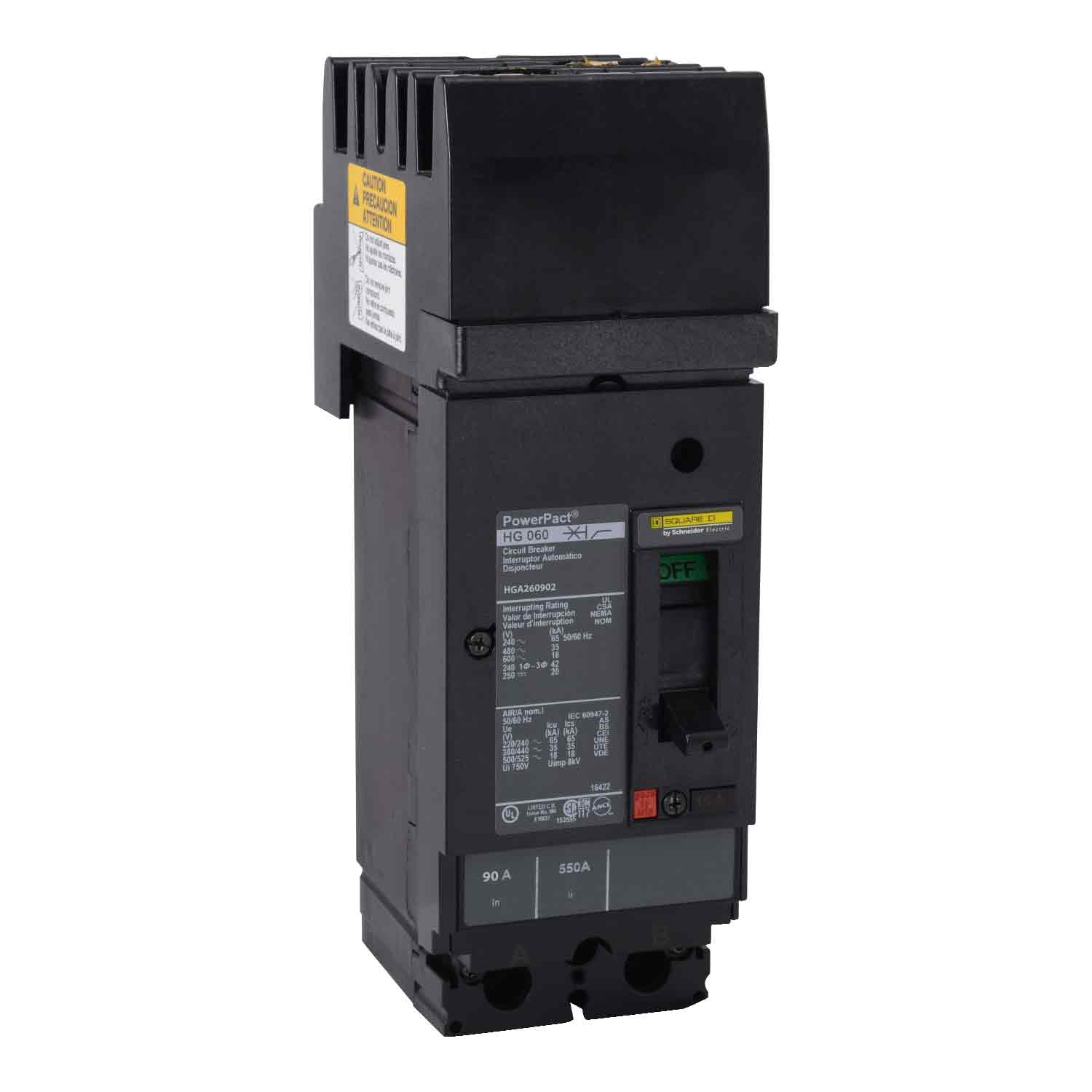

SQUARE D HGA260902 Circuit Breaker, 90A, 600V, 2 Pole, HGA Frame Type
Item: EC2QAUModel: HGA260902
7 In Stock
Ships within 2 days via
5.00% off
€1,202.03 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Circuit Breaker |
| Ac Voltage | 600V AC |
| Ambient Air Temp. For Operation | -13°F to +158°F |
| Ambient Air Temp. For Storage | -58°F to +185°F |
| Breaking Capacity Code | G |
| Circuit Breaker Mounting Style | I-Line |
| Circuit Breaker Type | Standard |
| Color | Black |
| Comm Code Enhanced | 32612 |
| Continuous Amps | 80% |
| Depth | 3 2/5" |
| Discount Schedule | 0DE2 |
| For Use With | I Line Panelboards |
| Frame Size | 150a/Hg |
| Height | 6 2/5" |
| Ics Rated Service Breaking Capacity | 65 kA 220/240V AC 50/60 Hz, 35 kA 380/440/415V AC 50/60 Hz, 18 kA 500/525V AC 50/60 Hz, 20 kA 250V DC, 20 kA 500V DC |
| Ip Degree Of Protection | Front Cover IP40 IEC 60529 |
| Max. Air Rating | 65 kA at 240V AC |
| Max. Operating Temp. | 104°F |
| Max. Wire Size | 3 AWG |
| Min. Wire Size | 14 AWG |
| Mounting Height | 3" |
| Mounting Mode | I Line Bracket |
| Mounting Support | Bracket |
| No. Of Poles | 2P |
| No. Of Slots | 5 |
| Operating Altitude | Less Than 6561.68 ft. (2000m) Without Derating 5000m With Derating |
| Phase | 1 |
| Phase Connection | AC |
| Pollution Degree | 3 IEC 60947-1 |
| Power Wire Stripping Length | 3/5" |
| Product Or Component Type | Circuit Breaker |
| Quality Labels | CE |
| Range | Powerpact |
| Series | HG Series |
| Suitability For Isolation | Yes |
| Terminal Connection | Lug |
| Terminal Identifier | AL150HD |
| Trip Type | Thermal Magnetic |
| Ui Rated Insulation Voltage | 750V |
| Uimp Rated Impulse Withstand Voltage | 8 kV |
| Voltage Dc | 250/500/600V DC |
| Width | 4.09" |
Shipping Info:
| Ship weight (kg) | 0.68 |
| Ship height (cm) | 11.99 |
| Ship length (cm) | 5.99 |
| Ship width (cm) | 21.01 |
| Country of Origin | US |
