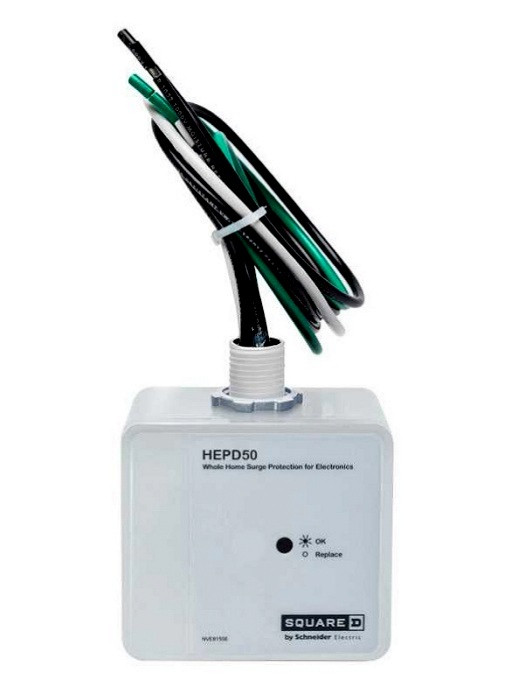

SQUARE D HEPD50 Surge Suppressor, 3 Wire, 2 Pole
Item: CE6JVPModel: HEPD50
7 In Stock
Ships within 2 days via
5.00% off
€223.31 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Surge Suppressor |
| Ambient Operating | -31°F to +149°F |
| Amps Rating | 10 kA |
| Depth | 2.1" |
| Enclosure Rating | NEMA 4X |
| Frame Type | QO |
| Height | 3.23" |
| Local Signalling | 1 LED Green Normal Operation |
| Mcov | 150V |
| No. Of Wires | 3 |
| Nominal Discharge Amps | 10 kA |
| Number Of Phases | 1 |
| Number Of Poles | 2 |
| Returnability | Yes |
| Sccr | 25 kA |
| Surge Amps | 50 kA |
| Voltage | 240V |
| Voltage Protection Rating | 600/900/1000V |
| Voltage Rating | 120/240V AC |
| Voltage Type | AC |
| Width | 3.72" |
Shipping Info:
| Ship weight (kg) | 0.64 |
| Ship height (cm) | 8.2 |
| Ship length (cm) | 5.33 |
| Ship width (cm) | 9.45 |
| Country of Origin | US |
