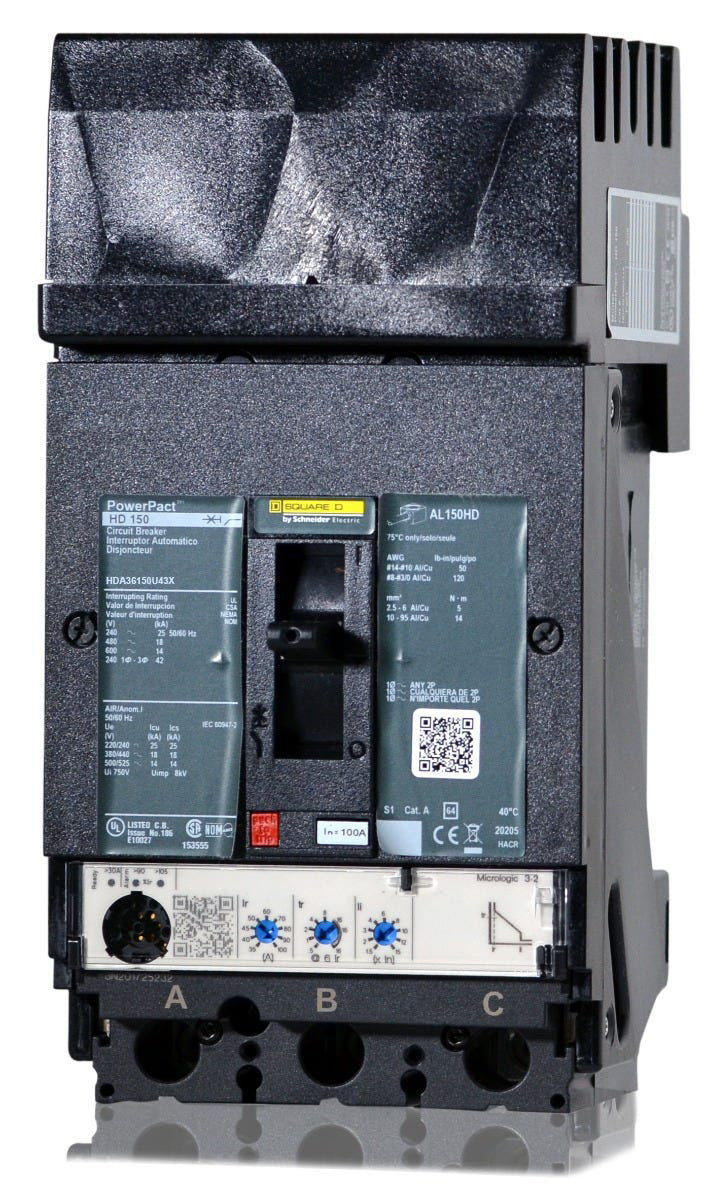

SQUARE D HDA36150U43X Circuit Breaker, 150A, 600V, 3 Pole, HDA Frame Type
Get it by Monday, Aug 24
€3,294.71 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Circuit Breaker |
| Ambient Air Temp. For Operation | -13°F to +158°F |
| Ambient Air Temp. For Storage | -58°F to +185°F |
| Breaking Capacity Code | D |
| Color | Black |
| Connection Type | I Line Style Plug In |
| Continuous Amps | 80% |
| Depth | 3 2/5" |
| Discount Schedule | 0DE2 |
| Frame Type | HDA |
| Height | 6 2/5" |
| Ics Rated Service Breaking Capacity | 25 kA 220/240V AC 50/60 Hz, 18 kA 380/440/415V AC 50/60 Hz, 14 kA 500/525V AC 50/60 Hz, 20 kA 250V DC, 20 kA 500V DC |
| Interrupt Rating | 18 kAIC @ 480V |
| Ip Degree Of Protection | Front Cover IP40 IEC 60529 |
| Local Signalling | Ready 1 LED Green) Alarm 1 LED 90 % Ir Orange) Alarm LED 105 % Ir Red) Switched Off (Off) 1 Trip Indicator Green) |
| Long Time Pick-up Adjustment Range | 1/4" to 1" |
| Mounting Height | 4 1/2" |
| Mounting Mode | I Line Bracket |
| Mounting Support | Bracket |
| No. Of Poles | 3P |
| No. Of Slots | 5 |
| Operating Altitude | Less Than 6561.68 ft. (2000m) Without Derating 5000m With Derating |
| Phase Connection | ABC |
| Pollution Degree | 3 IEC 60947-1 |
| Power Wire Stripping Length | 3/5" |
| Product Or Component Type | Circuit Breaker |
| Quality Labels | CE |
| Range | Powerpact |
| Series | HDA Series |
| Suitability For Isolation | Yes |
| Temp. Rating | 40°C |
| Terminal Connection | Line And Load Side Lug |
| Terminal Identifier | AL150HD |
| Ui Rated Insulation Voltage | 750V |
| Uimp Rated Impulse Withstand Voltage | 8 kV |
| Voltage | 600V AC |
| Width | 4.09" |
Shipping Info:
| Ship weight (kg) | 3.6 |
| Ship height (cm) | 10.39 |
| Ship length (cm) | 8.61 |
| Ship width (cm) | 16.31 |
| Country of Origin | US |
