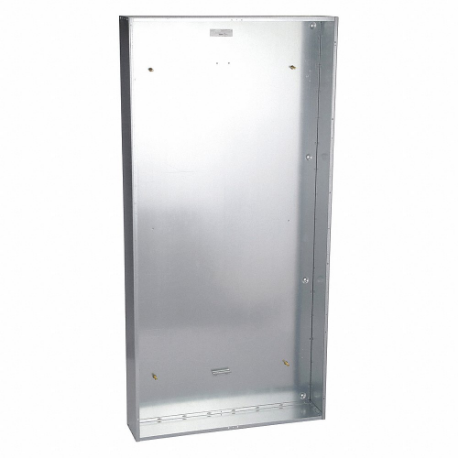

SQUARE D HC4286DB Panelboard Enclosure, Panelboard Enclosure/Box Type 1 86H 42W
Get it by Monday, Aug 17
5.00% off
€2,363.70 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Panelboard Enclosure |
| Accessory Type | Panelboard Enclosure, Box Type 1 86H 42 W , Panelboard Enclosure/Box Type 1 86H 42W |
| Amps | 1200A |
| Application | Panelboard |
| Component Type | Enclosure |
| Depth | 9 1/2" |
| Device Application | Panelboard |
| Device Short Name | Hcp |
| Discount Schedule | PE1A |
| Enclosure Nominal Depth | 241 mm , 9 1/2" |
| Enclosure Nominal Height | 2184 mm , 86" |
| Enclosure Nominal Width | 1067 mm , 42.008" |
| Environmental Disclosure | ENVPEP1407017EN |
| Height | 86" |
| Line Rated Amps | 400/600/800/1200A |
| Nema Degree Of Protection | NEMA 1 |
| Nema Enclosure Rating | NEMA 1 |
| Product Or Component Type | Enclosure |
| Pvc Free | Yes |
| Range Of Product | I-Line |
| Reach Regulation | Reference Contains Substances Of Very High Concern Above The Threshold |
| Returnability | Yes |
| Sustainable Offer Status | Green Premium Product |
Shipping Info:
| Ship weight (kg) | 73.35 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Height | Amps | Depth | Comm Code Enhanced | Nema Enclosure Rating | Enclosure Rating | Line Rated Amps | Enclosure Nominal Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HC4268DB | 68" | 1200A | 9 1/2" | 34270 | NEMA 1 | - | 400/600/800/1200A | 9 1/2" | €1,946.36 | |
 |
MH26WP | 26" | - | 6 1/2" | 34170 | - | NEMA 3R/5/12 | - | - | €2,167.21 | |
 |
MH32WP | 32" | - | 6 1/2" | 34170 | - | NEMA 3R/5/12 | - | - | €2,364.62 | |
 |
MH44WP | 44" | - | 6 1/2" | 34170 | NEMA 3R, NEMA 5, NEMA 12 | NEMA 3R/5/12 | - | - | €2,583.64 | |
 |
MH50WP | 50" | 225A | 6 1/2" | 34170 | - | NEMA 3R/5/12 | - | - | €2,589.59 | |
 |
MH32BE | 32" | - | 5 3/4" | 34170 | NEMA 2 | NEMA 1 | - | - | €166.13 | |
 |
MH38BE | 38" | - | 5 3/4" | 34170 | - | NEMA 1 | - | - | €143.35 |
