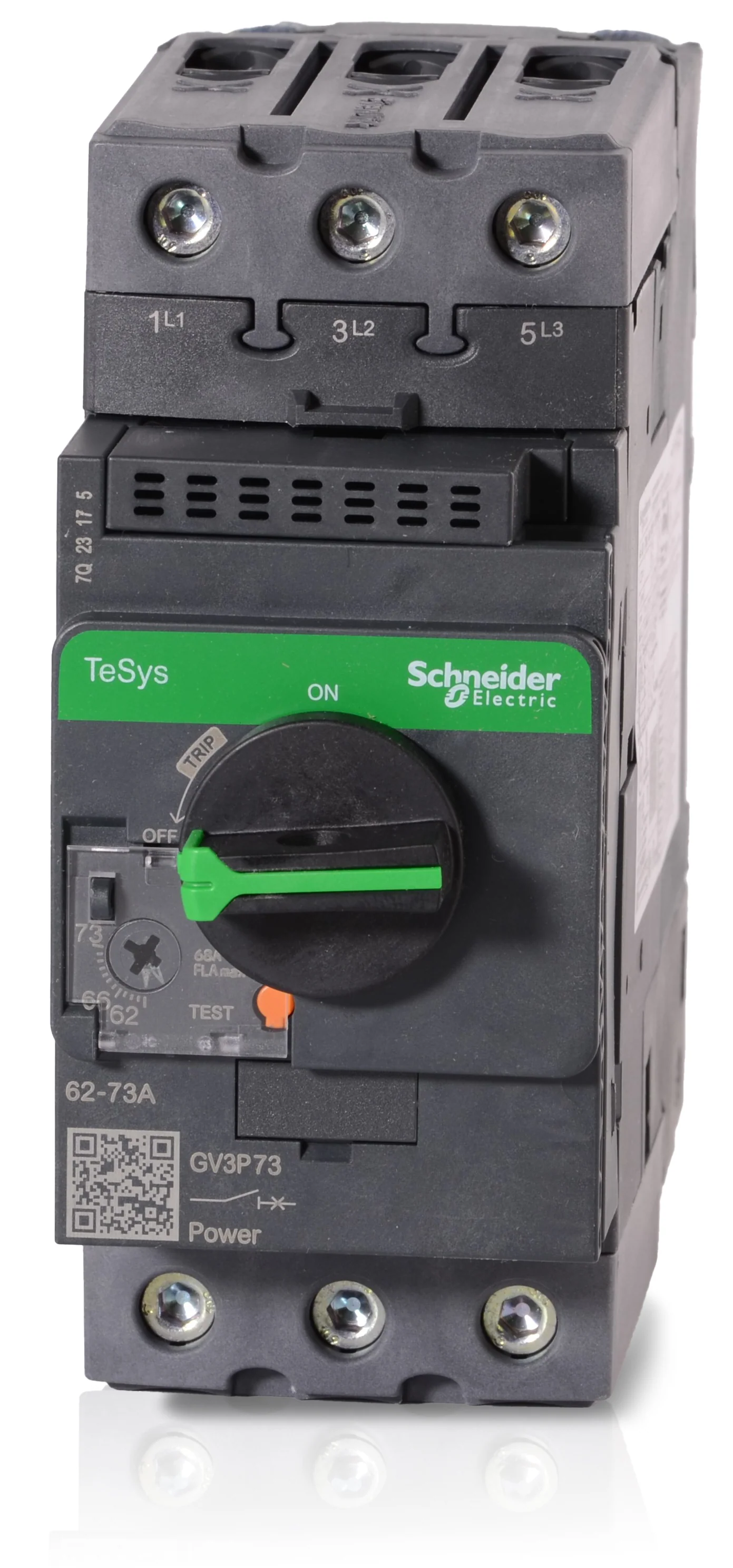

SQUARE D GV3P73 Manual Starter, 3 Pole, 62.73 A, 600V
Item: EC2TQQModel: GV3P73
7 In Stock
Ships within 2 days via
5.00% off
€584.20 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Starter |
| Ambient Air Temp. For Storage | -40°F to +176°F |
| Color | Dark Gray |
| Comm Code Enhanced | 41360 |
| Connection Type | Screw Clamp |
| Conventional Free Air Thermal Amps | 73A IEC 60947-4-1 |
| Depth | 5 2/5" |
| Device Short Name | GV3P |
| Discount Schedule | 0I11 |
| Electrical Durability | 20000 Cycles AC-3 415V |
| Family Series | Square D Circuit Breakers |
| Fire Resistance | 1760°F IEC 60695-2-11 |
| Fixing Mode | 35 mm Sy mmetrical DIN Rail Clipped, Panel Screwed With 3 X M4 Screws |
| Height | 5 1/5" |
| Ics Rated Service Short-circuit Breaking Capacity | 100% 230/240V AC 50/60 Hz, 60% 400/415V AC 50/60 Hz, 60% 440V AC 50/60 Hz, 50% 500V AC 50/60 Hz, 50% 690V AC 50/60 Hz |
| Interrupt Rating | 6 kAIC at 690V |
| Ip Degree Of Protection | IP20 IEC 60529 |
| Line Rated Amps | 73A |
| Magnetic Tripping Amps | 1120A |
| Mechanical Durability | 50000 Cycles |
| Mounting Position | Horizontal, Vertical |
| Mounting Type | Din Rail, Panel |
| Network Type | AC |
| Operating Altitude | 9842.52 ft. (3000 m) |
| Phase Failure Sensitivity | Yes IEC 60947-4-1 |
| Power Dissipation Per Pole | 8 W |
| Product Or Component Type | Motor Circuit Breaker |
| Range | Tesys Deca |
| Suitability For Isolation | Yes |
| Terminal Connection | Everlink |
| Ue Iec Rated Operational Voltage | 690V AC, 50/60 Hz |
| Ui Rated Insulation Voltage | 690V AC at 50/60 Hz |
| Uimp Rated Impulse Withstand Voltage | 6 kV |
| Voltage | 690V AC |
| Width | 2 1/5" |
Shipping Info:
| Ship weight (kg) | 1 |
| Ship height (cm) | 13.21 |
| Ship length (cm) | 5.51 |
| Ship width (cm) | 13.59 |
| Country of Origin | FR |
