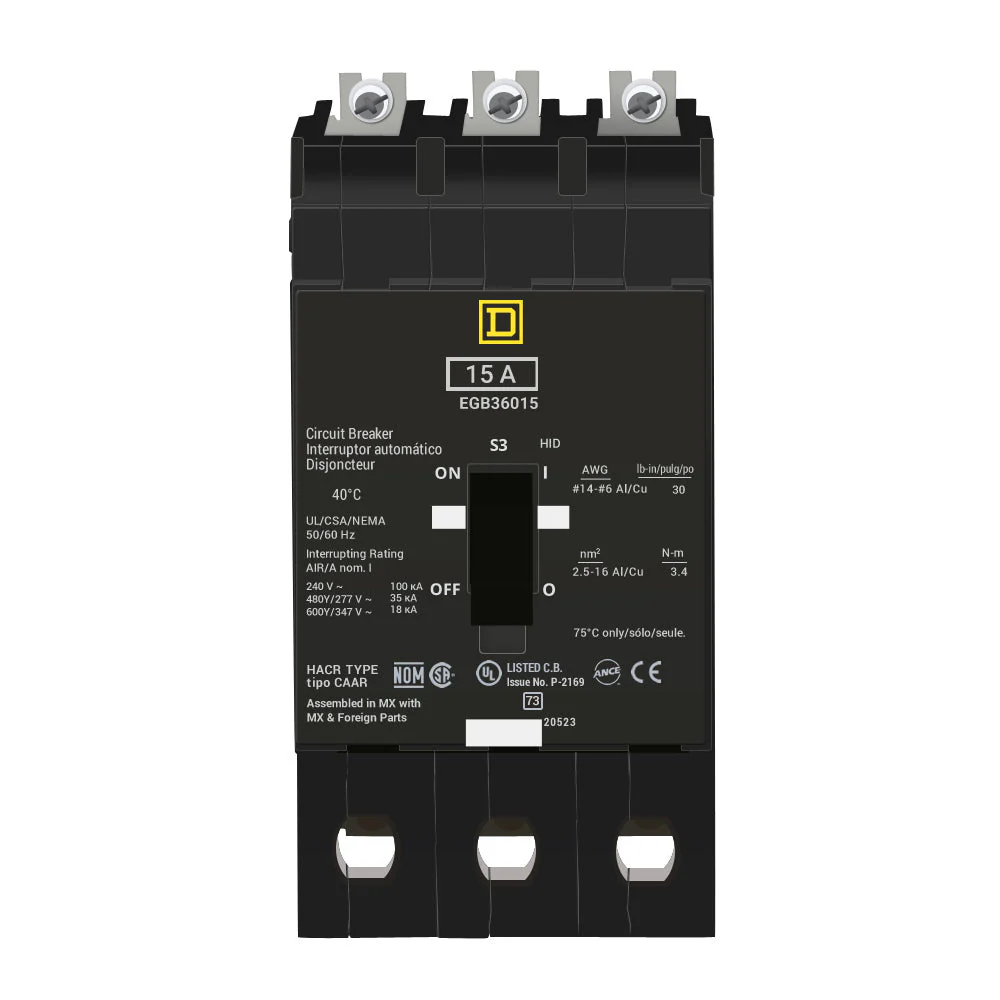

SQUARE D EGB36015 Circuit Breaker, 15A, 600V, 3 Pole, EGB Frame Type
Item: EC2PTLModel: EGB36015
7 In Stock
Ships within 2 days via
5.00% off
€831.64 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Circuit Breaker |
| Ac Voltage | 600V AC |
| Application | Lighting |
| Body Material | Thermoset Composite Resin |
| Circuit Breaker Mounting Style | Bolt-On |
| Comm Code Enhanced | 32213 |
| Depth | 4.05" |
| Discount Schedule | 0DE2 |
| Electrical Connection | Lugs Aluminium |
| For Use With | NF Panelboard |
| Frame Size | G, E |
| Frame Type | Egb |
| Height | 143.764 mm |
| Holding Amps | 270A |
| Interrupt Rating | 65 kAIC @ 240V AC, 35 kAIC @ 480V AC |
| Local Signalling | Trip Indicator |
| Max. Air Rating | 18 kA |
| Max. Wire Size | 6 AWG |
| Min. Wire Size | 12 AWG, 14 AWG |
| Protect Type | Overload Short Circuit |
| Series | EGB Series |
| Terminal Connection | Lug |
| Trip Setting | 270-875A |
| Trip Type | Thermal Magnetic |
| Type | Branch |
| Voltage | 600/347V AC |
| Width | 74.676 mm |
Shipping Info:
| Ship weight (kg) | 1.8 |
| Ship height (cm) | 7.47 |
| Ship length (cm) | 14.38 |
| Ship width (cm) | 10.29 |
