SQUARE D DTU321 Safety Switch 240VAC 3PDT 30 Amps AC
Item: AG9GFGModel: DTU321Cross Ref: 1MN32
In Stock : 4 Units Get it by Friday, Mar 27
5.00% off
€1,176.09 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Safety Switch |
| Amps Rating | 30A |
| Contact Form | 3PDT |
| Current Rating | 30A |
| Depth | 6.93" , 7" |
| Disconnect Type | Non Fusible Disconnect Switch |
| Duty | Heavy Duty |
| Duty Rating | Heavy Duty |
| Enclosure Rating | NEMA 1 |
| Environment | Indoor |
| Factory Installed Neutral | No |
| Fuse Type | H, K, R, J, T |
| Height | 29.94" , 30" |
| Horsepower @ 240v Ac | 3 hp |
| Housing Material | Steel |
| Hp | 10 hp @ 240V AC |
| Material | Steel |
| Motor Hp | 3 hp at 240V AC 50-60 Hz for 3 Phase Motors, 5 hp at 240V AC 50-60 Hz for 1 Phase Motors, 10 hp at 250V AC 50-60 Hz for 3 Phase Motors, 5 hp |
| Mounting Type | Surface |
| Nema Enclosure Rating | 1 |
| No. Of Poles | 3 |
| Number Of Poles | 3 |
| Number Of Wires | 3 |
| Phase | 3.0 |
| Protection Method | Non Fusible |
| Returnability | Yes |
| Short Circuit Current Rating | 10 kA |
| Standards | Ul 98, Ul Listed |
| Tightening Torque | 35 lbf.in. @ 0.003 sq. in. to 0.008 sq. in. @ 14 AWG to 10 AWG, 40 lbf.in. @ 0.01 sq. in. @ 8 AWG, 45 lbf.in. @ 0.02 sq. in. to 0.03 sq. in. @ 6 AWG to 4 AWG, 50 lbf.in. @ 0.04 sq. in. to 0.05 sq. in. @ 3 AWG to 2 AWG |
| Voltage Rating | 240V AC |
| Width | 11.96" , 12" |
| Wire Size | 12 AWG to 2 AWG, 14 AWG to 2 AWG |
Shipping Info:
| Ship weight (kg) | 15.75 |
| Ship height (cm) | 76.2 |
| Ship length (cm) | 17.78 |
| Ship width (cm) | 30.48 |
| Country of Origin | US |
Product Details:
- Fusible / Nonfusible : Nonfusible
- Metallic / Non-Metallic : Metallic
Product Variants
| Product | Model | Environment | Nema Enclosure Rating | Phase | Contact Form | Number Of Poles | Number Of Wires | Duty | Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
92251 | Indoor | 1 | 1.0 | DPDT | 2 | 2 | Standard | - | €798.00 | |
 |

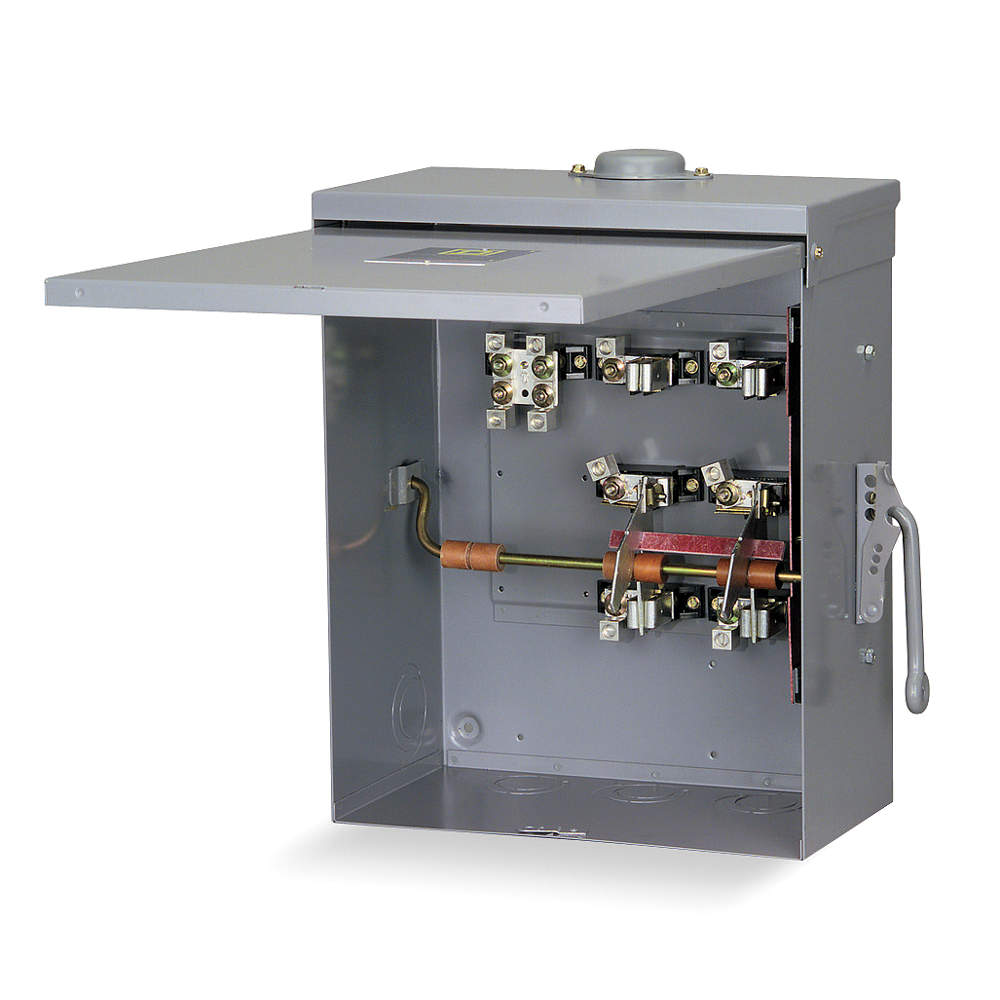

DTU324NRB | Indoor, Outdoor | 3 | 3.0 | 3PDT | 3 | 3 | Standard | 200A | €2,984.62 | |
|
DTU322 | Indoor | 1 | 3.0 | 3PDT | 3 | 3 | Heavy Duty | 60A | €1,354.40 | |
|
DTU323 | Indoor | 1 | 3.0 | 3PDT | 3 | 3 | Heavy Duty | 100A | €2,146.02 | |
 |

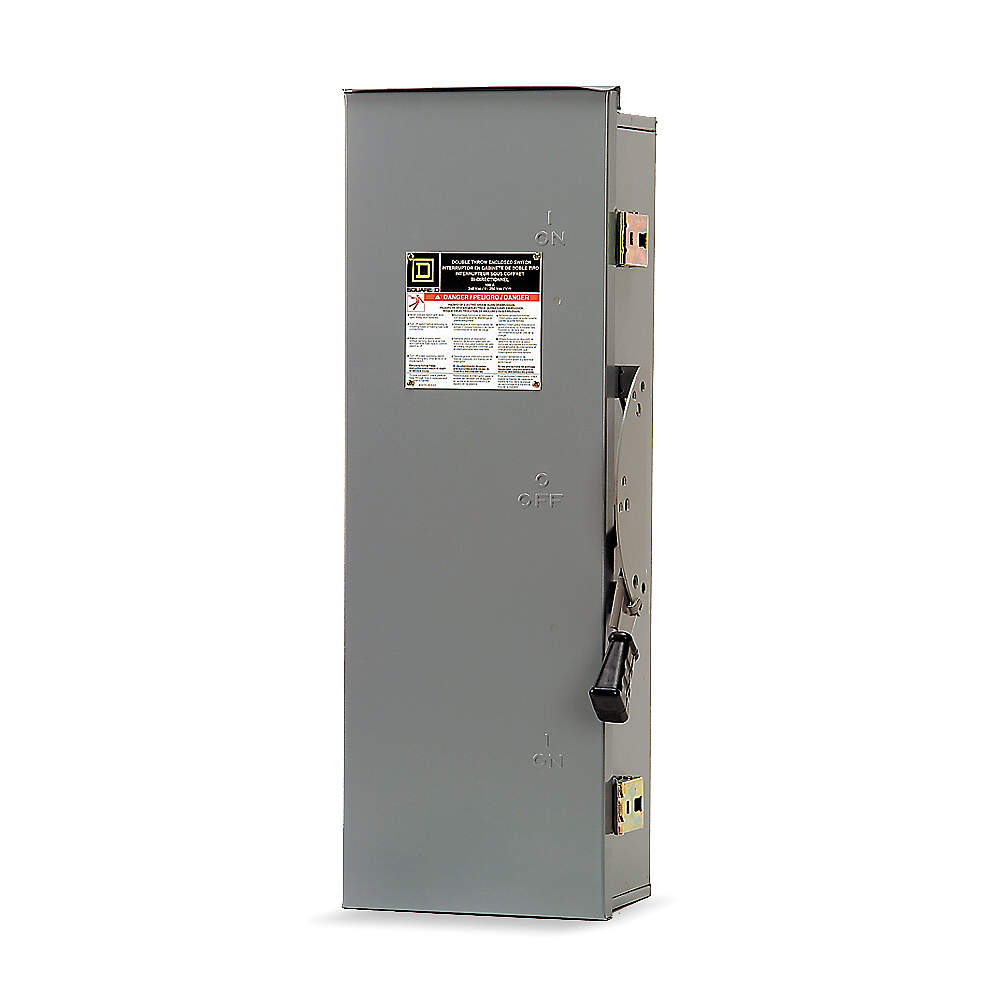

DTU323RB | Indoor, Outdoor | 3 | 3.0 | 3PDT | 3 | 3 | Heavy Duty | 100A | €3,417.11 |
