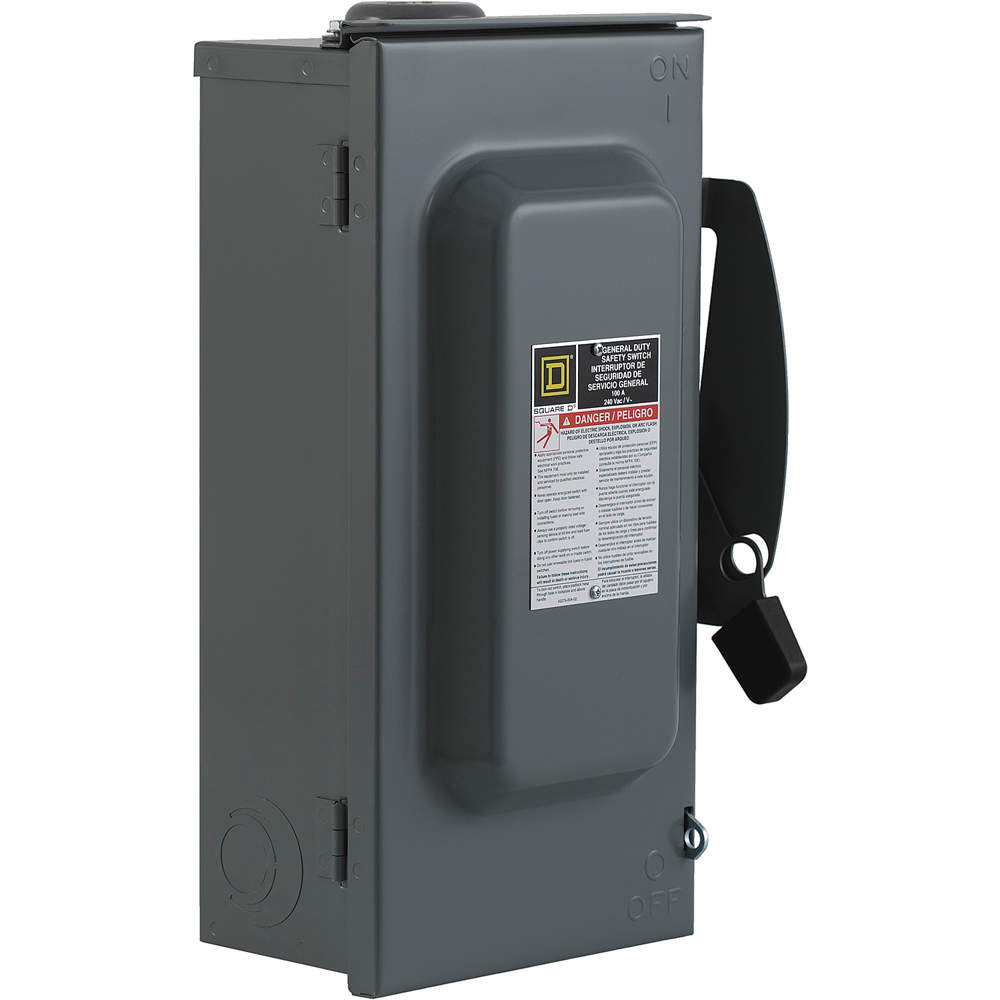

SQUARE D D323NRB Safety Switch 240VAC 3PST 100 Amps AC
Item: AG9FZKModel: D323NRBCross Ref: 1H257
In Stock : 17 Units Get it by Friday, Jun 26
5.00% off
€660.89 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Safety Switch |
| Amps | 100A |
| Contact Form | 3PST |
| Depth | 6 1/2" |
| Device Application | Residential |
| Disconnect Type | Fusible Disconnect Switch |
| Duty | Standard |
| Duty Rating | General Duty |
| Electrical Connection | Lugs |
| Environment | Indoor, Outdoor |
| Factory Installed Neutral | Yes |
| Finish | Galvannealed |
| Fuse Kit (class R) | Mfr. No. RFK10 |
| Fuse Type | H, K, R |
| Height | 17 1/2" |
| Housing Material | Steel |
| Hp | 30 hp @ 240V AC |
| Hp @ 240v | 5 hp |
| Material | Steel |
| Motor Hp | 7.5 hp at 240V AC 60 Hz for 1 Phase Motors, 15 hp at 240V AC 60 Hz for 3 Phase Motors, 15 hp at 240V AC 60 Hz for 1 Phase Motors, 30 hp at 240V AC 60 Hz for 3 Phase Motors |
| Mounting Type | Surface |
| Nema Enclosure Rating | NEMA 3R |
| Nema Enclosure Type | NEMA 3R |
| No. Of Poles | 3 |
| No. Of Wires | 4 |
| Phase | 3.0 |
| Protection Method | Fusible |
| Returnability | Yes |
| Short Circuit Amps | 100 kA |
| Tightening Torque | 35 lbf.in. @ 0.003 sq. in. to 0.008 sq. in. @ 14 AWG to 10 AWG, 35 lbf.in. @ 14 AWG to 10 AWG, 40 lbf.in. @ 0.01 sq. in. @ 8 AWG, 45 lbf.in. @ 0.02 sq. in. to 0.03 sq. in. @ 6 AWG to 4 AWG, 50 lbf.in. @ 3 AWG to 1 AWG |
| Ul Fuse Class | H, K, R |
| Voltage | 240V AC |
| Width | 10 1/2" , 10.5" |
| Wire Size | 14 AWG to 1 AWG, 12 AWG to 1 AWG |
Shipping Info:
| Ship weight (kg) | 7.22 |
| Ship height (cm) | 18.8 |
| Ship length (cm) | 51.31 |
| Ship width (cm) | 27.43 |
| Country of Origin | US |
Product Details:
- Fusible / Nonfusible : Fusible
- Metallic / Non-Metallic : Metallic
Product Variants
| Model | Nema Enclosure Rating | Phase | Amps | Voltage | Contact Form | Duty | Environment | Protection Method | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| D211N | 1 | 1 | 30A | 120V AC | DPST | Standard | Indoor | Fusible | €131.46 | |
| D221N | NEMA 1 | 1 | 30A | 240V AC | 2PST | General | - | - | €133.27 | |
| D221NRB | NEMA 3R | 1 | 30A | 240V AC | DPST | Standard | Indoor, Outdoor | Fusible | €180.88 | |
| D222N | 1 | 1 | 60A | 240V AC | DPST | Standard | Indoor | Fusible | €150.19 | |
| D222NRB | NEMA 3R | 1 | 60A | 240V AC | DPST | Standard | Indoor, Outdoor | Fusible | €305.08 | |
| D223NRB | NEMA 3R | 1 | 100A | 240V AC | DPST | Standard | Indoor, Outdoor | Fusible | €353.98 | |
| D321N | 1 | 3 | 30A | 240V AC | 3PST | Standard | Indoor | Fusible | €209.77 |
