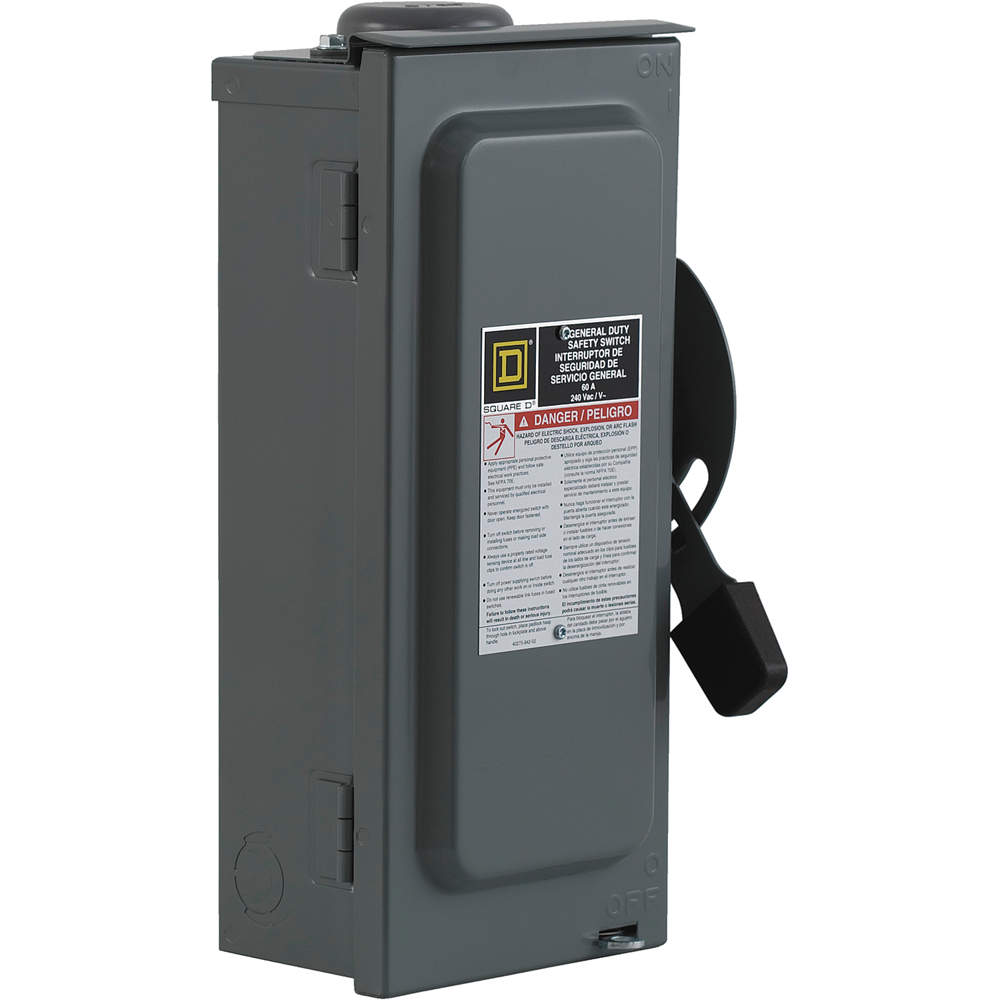

SQUARE D D322NRB Safety Switch 240VAC 3PST 60 Amps AC
Item: AG9FZHModel: D322NRBCross Ref: 1H255
7 In Stock
Ships within 2 days via
5.00% off
€377.80 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Safety Switch |
| Amps | 60A |
| Amps Rating | 60A |
| Contact Form | 3PST |
| Current Rating | 60A |
| Depth | 4 3/4" , 4.87" |
| Device Application | Residential |
| Disconnect Type | Fusible Disconnect Switch |
| Duty | Standard |
| Duty Rating | General Duty |
| Electrical Connection | Lugs |
| Environment | Indoor, Outdoor |
| Factory Installed Neutral | Yes |
| Finish | Galvannealed |
| Fuse Kit (class R) | Mfr. No. RFK03H |
| Fuse Type | H, K, R |
| Height | 14.88" , 15" |
| Horsepower @ 240v Ac | 15 hp |
| Housing Material | Steel |
| Material | Steel |
| Motor Hp | 1.5 hp at 120V AC, 3 hp at 120V AC, 3 hp at 240V AC, 7.5 hp at 240V AC,10 hp at 240V AC, 15 hp at 240V AC |
| Mounting Type | Surface |
| Nema Enclosure Rating | NEMA 3R |
| Nema Enclosure Type | NEMA 3R |
| No. Of Poles | 3 |
| No. Of Wires | 4 |
| Number Of Poles | 3 |
| Number Of Wires | 4 |
| Phase | 3.0 |
| Protection Method | Fusible |
| Returnability | Yes |
| Short Circuit Current Rating | 100 kA |
| Tightening Torque | 35 lbf.in. @ 0.003 sq. in. to 0.008 sq. in. @ 14 AWG to 10 AWG, 35 lbf.in. @ 14 AWG to 10 AWG, 45 lbf.in. @ 0.01 sq. in. @ 8 AWG, 45 lbf.in. @ 0.02 sq. in. to 0.03 sq. in. @ 6 AWG to 4 AWG, 50 lbf.in. @ 0.04 sq. in. @ 3 AWG |
| Ul Fuse Class | H, K, R |
| Voltage Rating | 240V AC |
| Width | 7 1/2" , 7.45" |
| Wire Size | 12 AWG to 3 AWG, 14 AWG to 3 AWG |
Shipping Info:
| Ship weight (kg) | 3.84 |
| Ship height (cm) | 13.21 |
| Ship length (cm) | 41.4 |
| Ship width (cm) | 19.81 |
| Country of Origin | US |
Product Details:
- Fusible / Nonfusible : Fusible
- Metallic / Non-Metallic : Metallic
Product Variants
| Model | Nema Enclosure Rating | Phase | Contact Form | Number Of Poles | Number Of Wires | Duty | Environment | Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| D211N | 1 | 1.0 | DPST | 2 | 3 | Standard | Indoor | 30A | €131.46 | |
| D221N | NEMA 1 | 1.0 | 2PST | 2 | 3 | General | - | - | €133.27 | |
| D221NRB | NEMA 3R | 1.0 | DPST | 2 | 3 | Standard | Indoor, Outdoor | - | €180.88 | |
| D222N | 1 | 1.0 | DPST | 2 | 3 | Standard | Indoor | 60A | €150.19 | |
| D222NRB | NEMA 3R | 1.0 | DPST | 2 | 3 | Standard | Indoor, Outdoor | 60A | €305.08 | |
| D223NRB | NEMA 3R | 1.0 | DPST | 2 | 3 | Standard | Indoor, Outdoor | 100A | €353.98 | |
| D321N | 1 | 3.0 | 3PST | 3 | 4 | Standard | Indoor | - | €209.77 |
