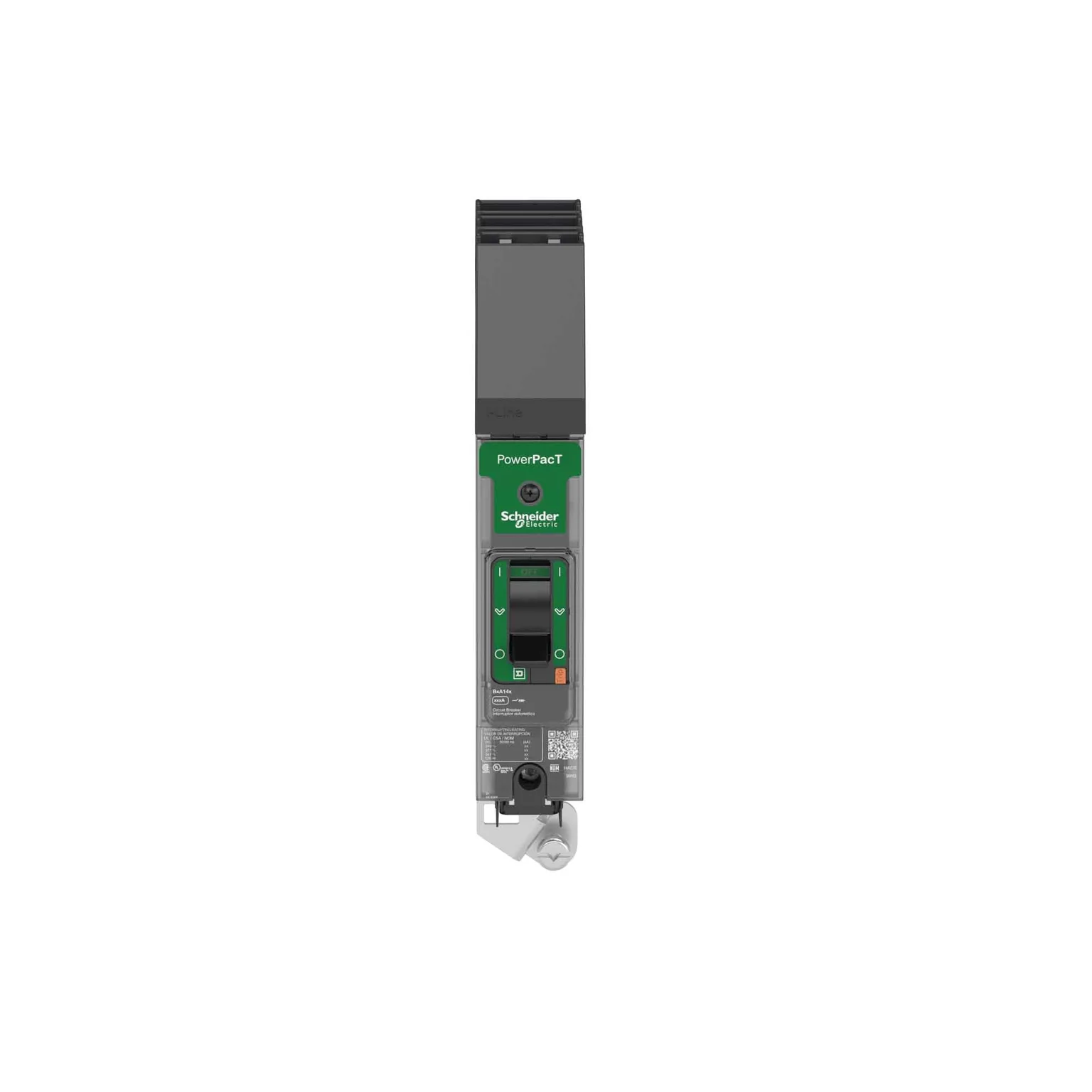

SQUARE D BGA160203 Circuit Breaker, 1 Pole, 20 A, 277 V, BGA Frame Type
Item: EC2PRTModel: BGA160203
7 In Stock
Ships within 2 days via
5.00% off
€559.75 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Circuit Breaker |
| Ac Voltage | 240V AC |
| Ambient Air Temp. For Operation | -13°F to +158°F |
| Ambient Air Temp. For Storage | -58°F to +185°F |
| Application | HACR Rated Applications |
| Color | Gray |
| Comm Code Enhanced | 32331 |
| Connection Type | I Line Style Plug In |
| Continuous Amps | 80% |
| Depth | 3 1/2" |
| Device Short Name | Bg 020 |
| Discount Schedule | 0DE2 |
| Electrical Durability | 10000 Cycles IEC 947-1 Annex K Ed 5.2 240V |
| Frame Type | BGA |
| Height | 5 2/5" |
| Ics Rated Service Breaking Capacity | 65 kA 220-240V AC 50/60 Hz |
| Interrupt Rating | 18 kAIC at 600/347V AC, 35 kAIC at 480V AC, 65 kAIC at 240V AC |
| Ip Degree Of Protection | Front Cover IP40 IEC 60529 |
| Max. Air Rating | 65 kA |
| Max. Wire Size | 2/0 AWG |
| Mechanical Durability | 20000 Cycles IEC 947-1 Annex K ed 5.2 |
| Min. Wire Size | 14 AWG |
| Mounting Height | 1 1/2" |
| Mounting Type | I Line |
| No. Of 9 Mm Pitches | 3 |
| No. Of Poles | 1P |
| Operating Altitude | Less Than 6561.68 ft. (2000m) Without Derating 5000m With Derating |
| Pollution Degree | 3 IEC 60947-1 |
| Power Wire Stripping Length | 4/5" |
| Product Or Component Type | Circuit Breaker |
| Quality Labels | CE |
| Range | Powerpact |
| Suitability For Isolation | Yes |
| Temp. Rating | -25°C to +70°C |
| Terminal Connection | Load Side Mechanical Lug |
| Trip Type | Thermal Magnetic |
| Ui Rated Insulation Voltage | 800V |
| Uimp Rated Impulse Withstand Voltage | 8 kV |
| Width | 1.06" |
| Wire Material | Aluminum, Copper |
Shipping Info:
| Ship weight (kg) | 0.77 |
| Ship height (cm) | 4.29 |
| Ship length (cm) | 32.31 |
| Ship width (cm) | 20.8 |
| Country of Origin | MX |
