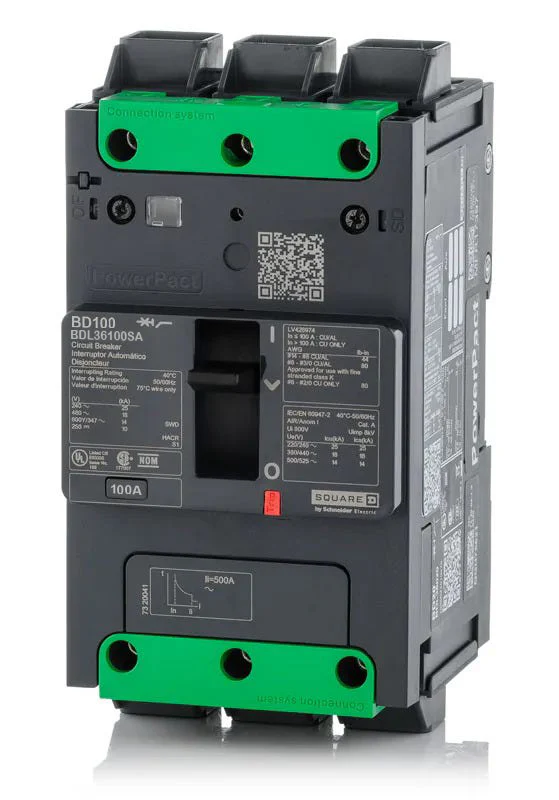

SQUARE D BDL36100SA Circuit Breaker, 100A, 600V, 3 Pole, SA Frame Type
Item: EC2PRJModel: BDL36100SA
7 In Stock
Ships within 2 days via
5.00% off
€1,671.18 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Circuit Breaker |
| Ambient Air Temp. For Operation | -13°F to +158°F |
| Ambient Air Temp. For Storage | -58°F to +185°F |
| Breaking Capacity Code | D |
| Color | Gray |
| Comm Code Enhanced | 32323 |
| Connection Type | Feed Thru |
| Continuous Amps | 80% |
| Depth | 3.1" |
| Device Short Name | Bd 100 |
| Discount Schedule | 0DE2 |
| Electrical Durability | 10000 Cycles IEC 947-1 Annex K Ed 5.2 440V |
| Frame Type | BDL |
| Height | 5 2/5" |
| Ics Rated Service Breaking Capacity | 25 kA 220-240V AC 50/60 Hz, 14 kA 500-525V AC 50/60 Hz, 18 kA 380-415V AC 50/60 Hz, 18 kA 440V AC 50/60 Hz |
| Interrupt Rating | 14 kAIC at 600/347V AC |
| Ip Degree Of Protection | Front Cover IP40 IEC 60529 |
| Mechanical Durability | 20000 Cycles IEC 947-1 Annex K ed 5.2 |
| Mounting Type | Clip On |
| No. Of 9 Mm Pitches | 9 |
| No. Of Poles | 3P |
| Operating Altitude | Less Than 6561.68 ft. (2000m) Without Derating 5000m With Derating |
| Pollution Degree | 3 IEC 60947-1 |
| Power Wire Stripping Length | 4/5" |
| Product Or Component Type | Circuit Breaker |
| Quality Labels | CE |
| Range | Powerpact |
| Suitability For Isolation | Yes |
| Temp. Rating | -25°C to +70°C |
| Terminal Connection | Line And Load Side Lug |
| Ui Rated Insulation Voltage | 800V |
| Uimp Rated Impulse Withstand Voltage | 8 kV |
| Voltage | 600/347V AC |
| Width | 3 1/5" |
Shipping Info:
| Ship weight (kg) | 1.46 |
| Ship height (cm) | 8.89 |
| Ship length (cm) | 25.7 |
| Ship width (cm) | 16.51 |
| Country of Origin | MX |
