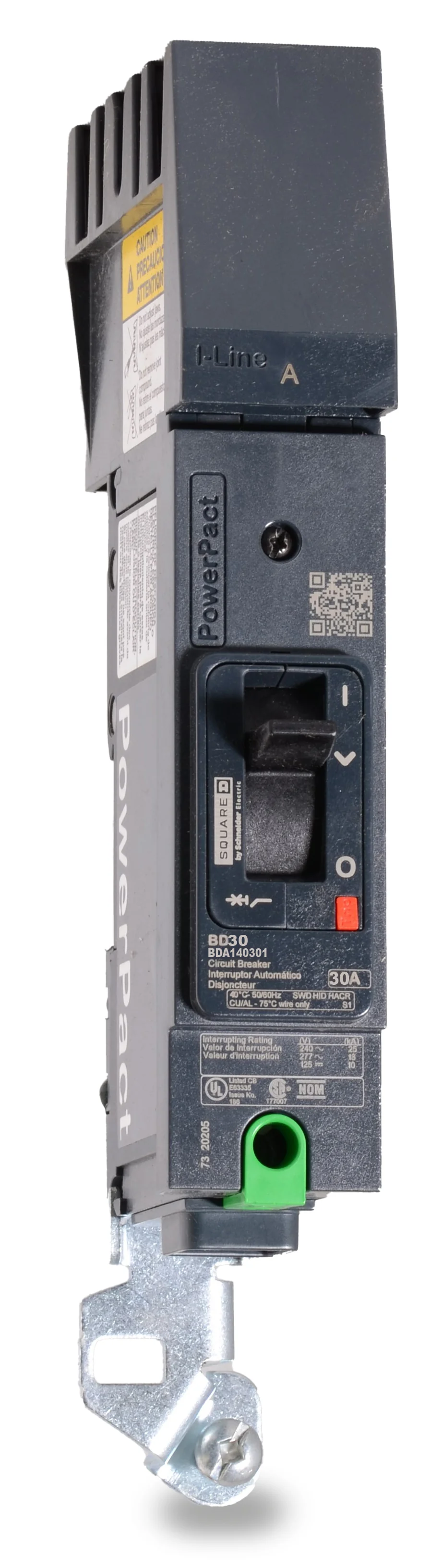

SQUARE D BDA140301 Circuit breaker, I-Line Style, Plug-In, 1 Pole, BDA Frame Type
Item: EC2RWEModel: BDA140301
7 In Stock
Ships within 2 days via
5.00% off
€527.76 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Circuit Breaker |
| Ac Voltage | 277V AC |
| Ambient Air Temp. For Operation | -13°F to +158°F |
| Ambient Air Temp. For Storage | -58°F to +185°F |
| Application | HACR Rated Applications |
| Breaking Capacity Code | D |
| Circuit Breaker Type | Standard |
| Color | Gray |
| Comm Code Enhanced | 32611 |
| Connection Type | I Line Style Plug In |
| Continuous Amps | 80% |
| Curve Type | B |
| Depth | 3 1/2" |
| Device Short Name | BD 030 |
| Dimension S | 9.7" x 1.48" |
| Discount Schedule | 0DE2 |
| Electrical Durability | 10000 Cycles IEC 947-1 Annex K Ed 5.2 440V |
| Enclosure Type | Molded Case |
| For Use With | Industrial Control Panels, Co mmercial OEM, Electrical Distribution Equipment |
| Frame Size | 125a/Bd |
| Frame Type | BDA |
| Height | 5 2/5" |
| Ics Rated Service Breaking Capacity | 25 kA 220-240V AC 50/60 Hz |
| Interrupt Rating | 18 kAIC at 480/277V AC, 25 kAIC at 120/240V AC |
| Ip Degree Of Protection | Front Cover IP40 IEC 60529 |
| Max. Air Rating | 25 kA at 120/240V AC |
| Max. Wire Size | 2/0 AWG |
| Mechanical Durability | 20000 Cycles IEC 947-1 Annex K ed 5.2 |
| Min. Wire Size | 14 AWG |
| Mounting Height | 1 1/2" |
| Mounting Type | I Line |
| No. Of 9 Mm Pitches | 3 |
| No. Of Poles | 1P |
| Operating Altitude | Less Than 6561.68 ft. (2000m) Without Derating 5000m With Derating |
| Phase Connection | A |
| Pollution Degree | 3 IEC 60947-1 |
| Power Wire Stripping Length | 4/5" |
| Product Or Component Type | Circuit Breaker |
| Quality Labels | CE |
| Range | Powerpact |
| Reset Type | Manual Reset |
| Series | BDA Series |
| Suitability For Isolation | Yes |
| Terminal Connection | Load Side Mechanical Lug |
| Trip Type | Thermal Magnetic |
| Type | Thermal, Magnetic |
| Ui Rated Insulation Voltage | 800V |
| Uimp Rated Impulse Withstand Voltage | 8 kV |
| Voltage | 277V , 480/277V AC |
| Voltage Dc | Not Rated |
| Width | 1.06" |
Shipping Info:
| Ship weight (kg) | 0.8 |
| Ship height (cm) | 4.6 |
| Ship length (cm) | 32.31 |
| Ship width (cm) | 20.8 |
| Country of Origin | MX |
