SQUARE D B25.0 Thermal Unit 14.1 - 19.2a | AF6PJP 1H618

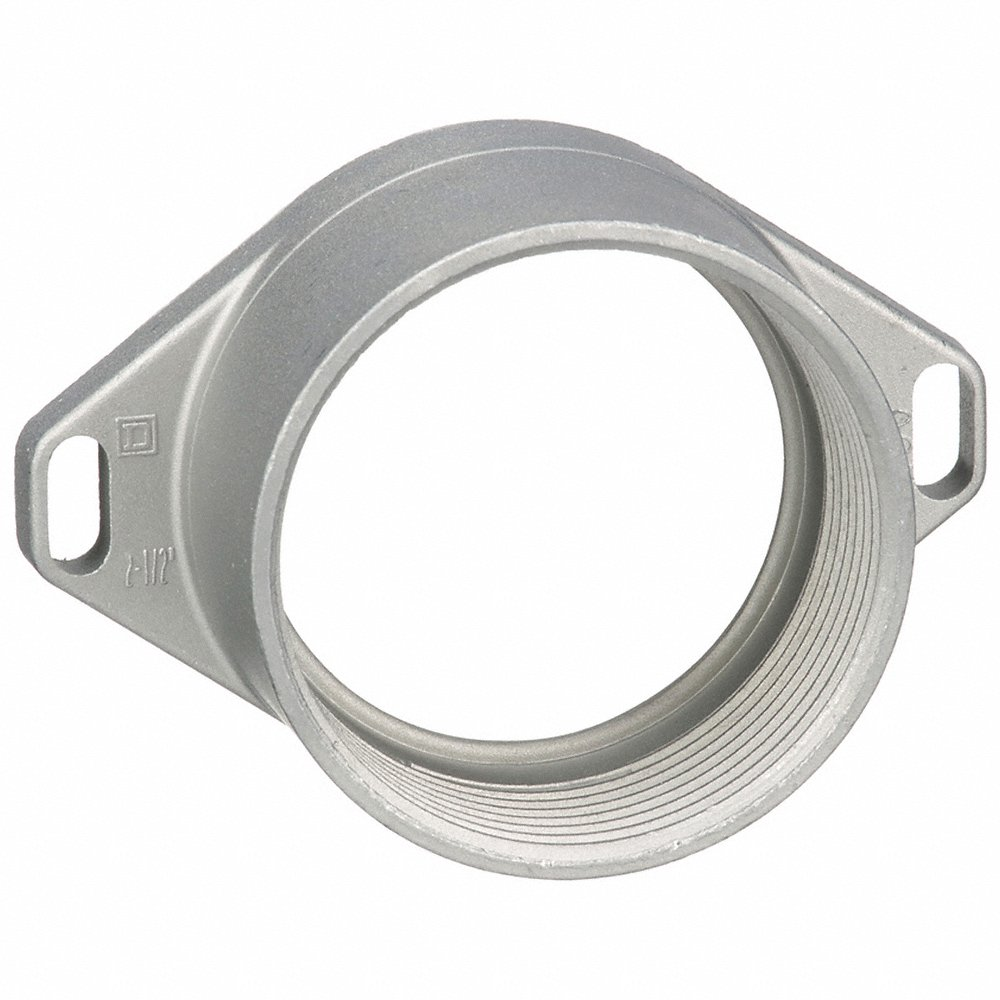

SQUARE D B25.0 Bolt-On Hubs, For Conduit Size 2-1/2 Inch, NEMA Enclosure Rating 3R

Item: AF6PJPModel: B25.0Cross Ref: 1H306
7 In Stock

Ships within 2 days via

€66.77
10.00% off
€60.09 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Thermal Unit
Compatible Frame Size B, S
Compatible With Grainger Part Number 1H411, 1H415, 1H416, 1H417, 2BW14, 2BW2, 2BW22, 2BW23, 2BW25, 2BW31, 2BW35, 2BW36, 2BW37, 2BW41, 2BW7, 2PYD9, 2PYE6, 2PYE8, 48P834
Compatible With Manufacturer Model Number 2510MBA1, 2510MBG1, 2510MBO1, 2510MBW1, 2510MBW11, 2510MCA1, 2510MCA2, 2510MCA3, 2510MCG1, 2510MCG2, 2510MCG3, 2510MCO3, 2510MCW1, 2510MCW11, 2510MCW13, 2510MCW2, 2510MCW3, 2510TBG1, 2510TCG1, 2510TCG3, 9065SEO8
Fl Amp @ 1-ph/ Dp 20-30a/ Standard Enclosure 17.6A
Fl Amp @ 1-ph/ Dp 40a/ Standard Enclosure 18.1A
Fl Amp @ 1-ph/ Dp 50a/ Standard Enclosure 18A
Fl Amp @ 1-ph/ Man. Size 0/ Standard Enclosure 18A
Fl Amp @ 1-ph/ Man. Size 1/ Open & Large Enclosure 19.2A
Fl Amp @ 1-ph/ Man. Size 1/ Standard Enclosure 17.6A
Fl Amp @ 1-ph/ Size 00,0,1/ Open & Large Enclosure 18A
Fl Amp @ 1-ph/ Size 00,0,1/ Standard Enclosure 16.6A
Fl Amp @ 1-ph/ Size 1p/ Open & Large Enclosure 18.4A
Fl Amp @ 1-ph/ Size 1p/ Standard Enclosure 18.4A
Fl Amp @ 1-ph/ Size 2/ Standard Enclosure 18.5A
Fl Amp @ 3-ph/ Dp 20-30a/ Open & Large Enclosure 16.4A
Fl Amp @ 3-ph/ Dp 20-30a/ Standard Enclosure 15.4A
Fl Amp @ 3-ph/ Dp 40a/ Open & Large Enclosure 17.2A
Fl Amp @ 3-ph/ Dp 40a/ Standard Enclosure 16.4A
Fl Amp @ 3-ph/ Dp 50a/ Open & Large Enclosure 17A
Fl Amp @ 3-ph/ Dp 50a/ Standard Enclosure 16A
Fl Amp @ 3-ph/ Size 00,0,1/ Open & Large Enclosure 15.2A
Fl Amp @ 3-ph/ Size 00,0,1/ Standard Enclosure 14.1A
Fl Amp @ 3-ph/ Size 2/ Open & Large Enclosure 16.1A
Fl Amp @ 3-ph/ Size 2/ Standard Enclosure 15.2A
Full Load Amps 14.1-19.2A
Full Load Current 14.1-15.8/14.4-16.1/15-16.6/15.5-18/15.8-18/16.2-18/17.5-19.2/17.9-20.3/18-20.1A
Nema Size Nema 0, Nema 00, Nema 1, Nema 1P, Nema 2
Overload Protection Type Melting Alloy
Sensing Method Melting Alloy
Trip Class 20

Shipping Info:

Ship weight (kg) 0.26
Ship height (cm)5.08
Ship length (cm)17.78
Ship width (cm)15.24
HS code8536504000
Country of OriginIN

Product Variants

ProductModelFull Load AmpsFl Amp @ 3-ph/ Size 00,0,1/ Standard EnclosureFl Amp @ 3-ph/ Size 00,0,1/ Open & Large EnclosureFl Amp @ 1-ph/ Size 00,0,1/ Standard EnclosureFl Amp @ 1-ph/ Size 00,0,1/ Open & Large EnclosureFl Amp @ 1-ph/ Man. Size 1/ Open & Large EnclosureFl Amp @ 1-ph/ Man. Size 1/ Standard EnclosureFl Amp @ 1-ph/ Man. Size 0/ Standard EnclosurePrice
SQUARE D B0.44 Thermal Unit 0.30 - 0.38a | AF6PFH 1H594 B0.440.3-0.38A0.3A0.31A0.31A0.33A0.38A0.36A0.36A€66.77
SQUARE D B0.51 Thermal Unit 0.34 - 0.43a | AF6PFJ 1H595 B0.510.34-0.43A0.34A0.36A0.34A0.36A0.43A0.4A0.4A€66.77
SQUARE D B0.63 Thermal Unit 0.44 - 0.56a | AF6PFL 1H597 B0.630.44-0.56A0.44A0.46A0.45A0.48A0.56A0.52A0.52A€66.77
SQUARE D B0.71 Thermal Unit 0.53 - 0.63a | AF6PFM 1H598 B0.710.53-0.63A0.53A0.55A0.54A0.57A0.63A0.59A0.59A€66.77
SQUARE D B0.81 Thermal Unit 0.59 - 0.71a | AF6PFN 1H599 B0.810.59-0.71A0.59A0.61A0.61A0.64A0.71A0.66A0.66A€66.77
SQUARE D B0.92 Thermal Unit 0.64 - 0.78a | AF6PFP 1H600 B0.920.64-0.78A0.64A0.66A0.66A0.7A0.78A0.73A0.73A€66.77
SQUARE D B1.03 Thermal Unit 0.72 - 0.88a | AF6PHW 1H601 B1.030.72-0.88A0.72A0.75A0.73A0.77A0.88A0.81A0.81A€66.77
