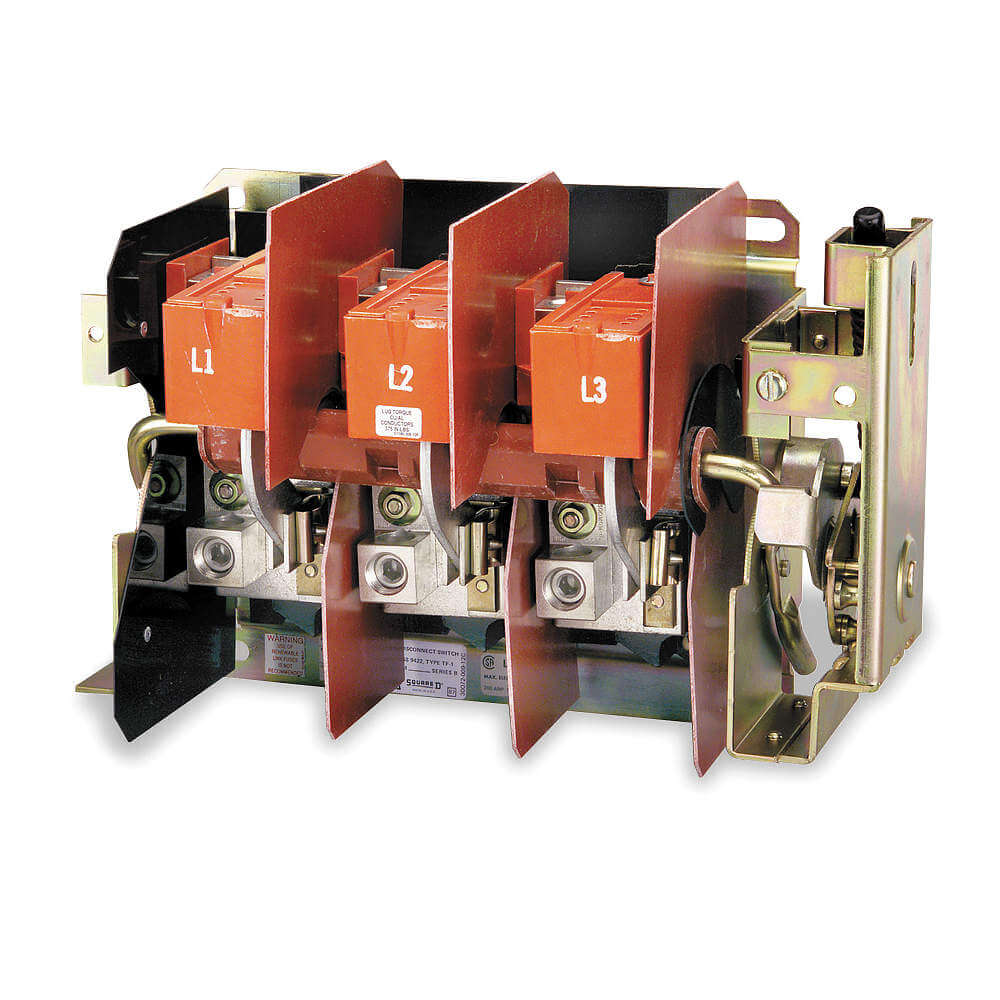

SQUARE D 9422TF2 Flange Mount Dsconnct Switch 200A Fusible
Get it by Monday, Aug 17
5.00% off
€2,627.10 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Flange Mount Disconnect Switch |
| Amps | 200A |
| Contact Form | 3PST |
| Disconnect Type | Fusible Disconnect Switch |
| Duty | Heavy Duty |
| Fuse Clip Type | Class H, K, J, R Fuses |
| Fuse Rating | 200A/250/600V |
| Fuse Type | H, K, J, R |
| Handle Type | Ordered Separately |
| Hp | 40 hp @ 200V AC, 60 hp @ 230V AC, 125 hp @ 460V AC, 150 hp @ 575V AC, 40 hp @ 250V DC |
| Hp @ 240v | 60 hp |
| Hp @ 480v | 125 hp |
| Hp @ 600v | 150 hp |
| Included | Fuse Holder, Mounting Hardware, Operating Mechanism |
| Max. Hp | 40 hp |
| Max. Hp @ 460v | 125 hp |
| Max. Mounting Depth | 19 1/4" |
| Min. Mounting Depth | 9 3/25" |
| Mounting Type | Flange |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Phase | 3 |
| Protection Method | Fusible |
| Returnability | Yes |
| Ul Fuse Class | H, J, K, R |
| Voltage | 600V AC |
| Width | 4" |
Shipping Info:
| Ship weight (kg) | 11.42 |
| Ship height (cm) | 23.37 |
| Ship length (cm) | 52.58 |
| Ship width (cm) | 30.73 |
| Country of Origin | MX |
Product Details:
- Fusible / Nonfusible : Fusible
Product Variants
| Model | Amps | Max. Hp | Hp @ 600v | Min. Mounting Depth | Max. Mounting Depth | Max. Hp @ 460v | Returnability | Disconnect Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 9422TDN60 | 60A | 15 hp | 50 hp | 6.63" | 18" | 30 hp | No | Non Fusible Disconnect Switch | €849.94 | |
| 9422TEN10 | 100A | 25 hp | 75 hp | 6.63" | 18" | 60 hp | No | Non Fusible Disconnect Switch | €1,199.14 | |
| 9422TCN30 | 30A | 7 1/2 hp | 20 hp | 6.63" | 18" | 15 hp | Yes | Non Fusible Disconnect Switch | €669.67 | |
| 9422TDF63 | 60A | 15 hp | - | 6.63" | 18" | 30 hp | Yes | Fusible Disconnect Switch | €963.08 | |
| 9422TEF10 | 100A | 25 hp | 75 hp | 6.63" | 18" | 60 hp | Yes | Fusible Disconnect Switch | €1,598.52 | |
| 9422TF1 | 200A | 40 hp | 150 hp | 9 3/25" | 19 1/4" | 125 hp | No | Non Fusible Disconnect Switch | €2,404.55 |
