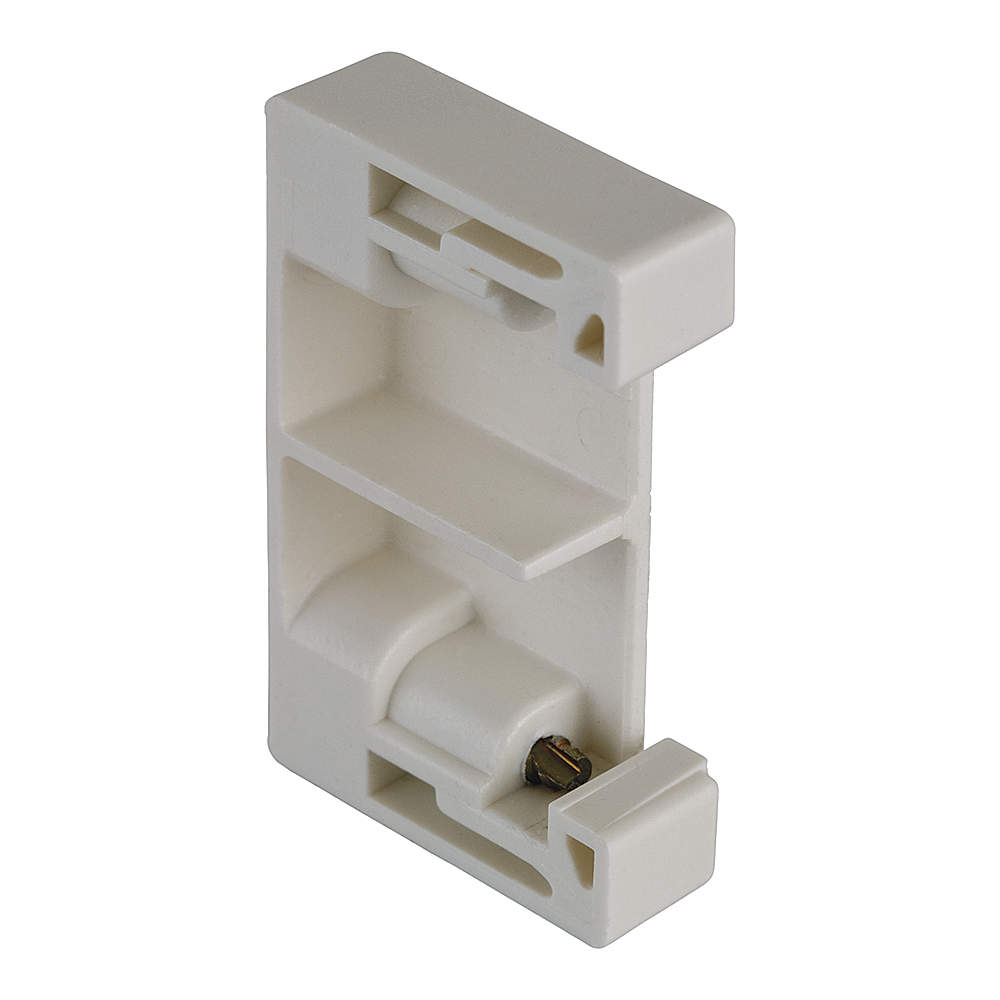

SQUARE D 9080MHA10 Terminal Block, Linergy, Screw Down End Clamp, For 35mm DIN Mounting Track

Square D 9080MHA10 screw-on end clamp is a component used in screw terminal blocks for securing wires or cables in place. It is commonly used in the manufacturing, automation, energy and transportation industries to fasten and organise DIN rail connectors within control panels, distribution boards and other electrical enclosures.

Frequently Asked Questions:

Q. How to install this Square D 9080MHA10 screw-on end clamp?

A.

• Strip the insulation from the end of the wire that needs to be secured. Ensure that the exposed wire is clean and free from any debris.
• Place the screw-on end clamp over the exposed wire. The clamp should be positioned in a way that the wire fits snugly into the groove or opening designed for it.
• Using a suitable screwdriver, tighten the screw on the end clamp. Make sure not to over-tighten, as this could damage the wire.
• After tightening, gently tug the wire to ensure that it is securely held in place by the clamp. The clamp should prevent the wire from moving or coming loose.
• Once the wire is securely clamped, visually inspect the installation to make sure everything is in order.

Q. Do screw-on end clamps provide electrical insulation?

A. Screw-on end clamps are primarily designed for mechanical fixation and organisation of wires. They do not provide electrical insulation. If insulation is needed, appropriate insulating materials should be used in conjunction with the clamps.

Q. What maintenance is required for this Square D screw-on end clamp?

A. Periodically inspect the clamp to ensure it is still securely fastened and the wires have not become loose. If you notice any signs of wear, damage or deterioration, consider replacing the clamp to maintain a safe electrical connection.
