SQUARE D 9065ST420 Solid State Overload Relay 45 - 135a
Item: AF7HGAModel: 9065ST420Cross Ref: 21AM83
7 In Stock
Ships within 2 days via
10.00% off
€710.05 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solid State Overload Relay |
| Amps | 45-135A |
| Auxiliary Contact Form | 1NC |
| Body Depth | 4.53" |
| Body Height | 5.92" |
| Body Width | 5.33" |
| Compatible Contactor Series | 9065 Motor Logic Solid State Overload Relays |
| Height | 5.9" |
| Maximum Overload Relay Current Setting | 135A |
| Maximum Voltage Rating | 600V AC |
| Minimum Overload Relay Current Setting | 45A |
| Nema Size | 4 |
| Number Of Poles | 3 |
| Overload Protection Type | Electronic |
| Phase | Three |
| Relay Mounting Style | Direct To Contactor |
| Relay Style | NEMA |
| Reset Type | Manual |
| Sensing Method | Electronic |
| Separate Mounting | No |
| Starter Type | NEMA |
| Thermal Units Required | Not Applicable To Electronic Type Overload Relays |
| Trip Class | Class 10/20 |
| Trip Class | 10 or 20 |
| Voltage | 600V AC |
| Width | 7" |
Shipping Info:
| Ship weight (kg) | 1.59 |
| Ship height (cm) | 13.97 |
| Ship length (cm) | 19.05 |
| Ship width (cm) | 17.78 |
| HS code | 8536490075 |
| Country of Origin | MX |
Product Variants
| Product | Model | Separate Mounting | Height | Body Height | Body Width | Body Depth | Depth | Amps Range | Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

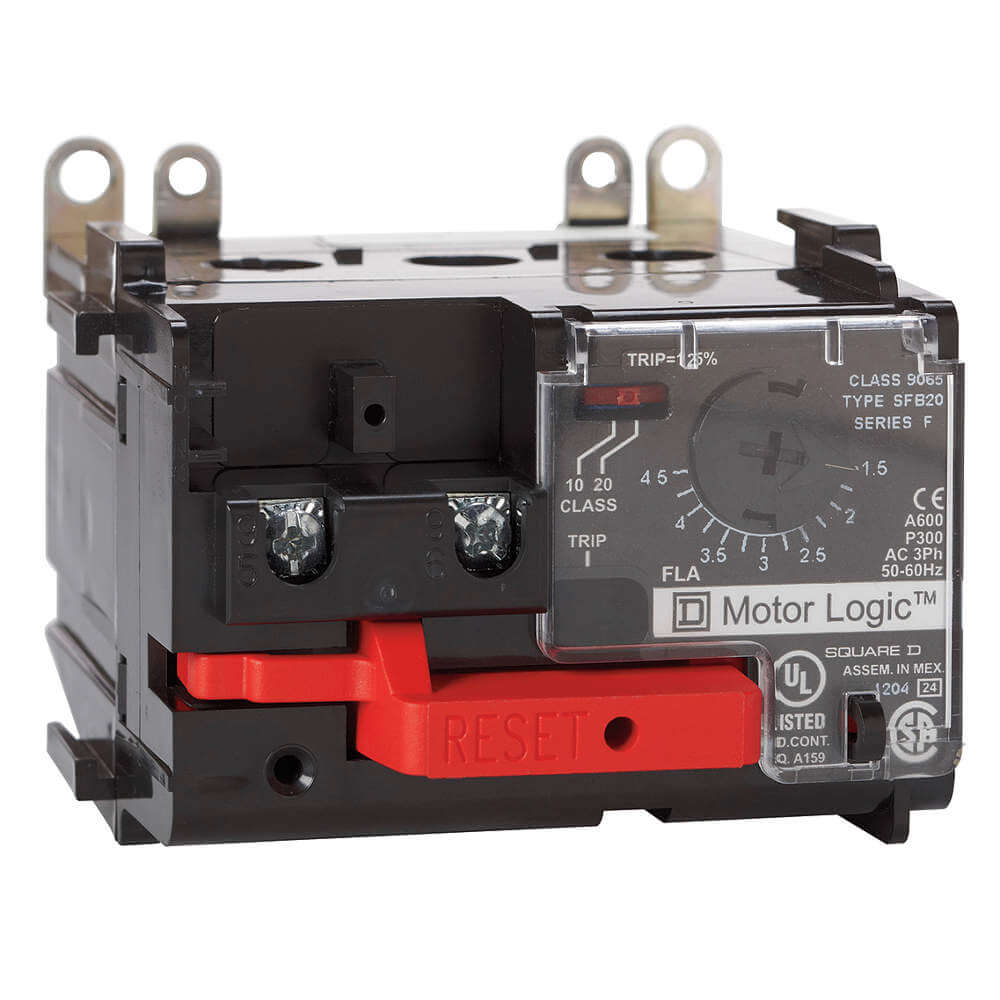

9065ST220 | No | 3 1/2" | 3.51" | 4.28" | 3.51" | 3 1/2" | - | 15-45A | €672.01 | |
|
9065ST320 | No | 5.9" | 5.02" | 5.33" | 4.45" | 4.4" | - | 30-90A | €567.30 | |
|
9065SF020 | Yes | 5 1/2" | 2.69" | 3.26" | 3.9" | 3.9" | 6-18A | - | €355.50 | |
|
9065SF120 | Yes | 5 1/2" | 2.69" | 3.26" | 3.9" | 3.9" | 9-27A | - | €361.95 | |
|
9065SF220 | Yes | 3 1/2" | 3.51" | 4.28" | 3.51" | 3 1/2" | 15-45A | - | €746.81 | |
|
9065SF320 | Yes | 5.02" | 5.02" | 5.33" | 4.45" | 8" | - | 30-90A | €895.12 | |
 |

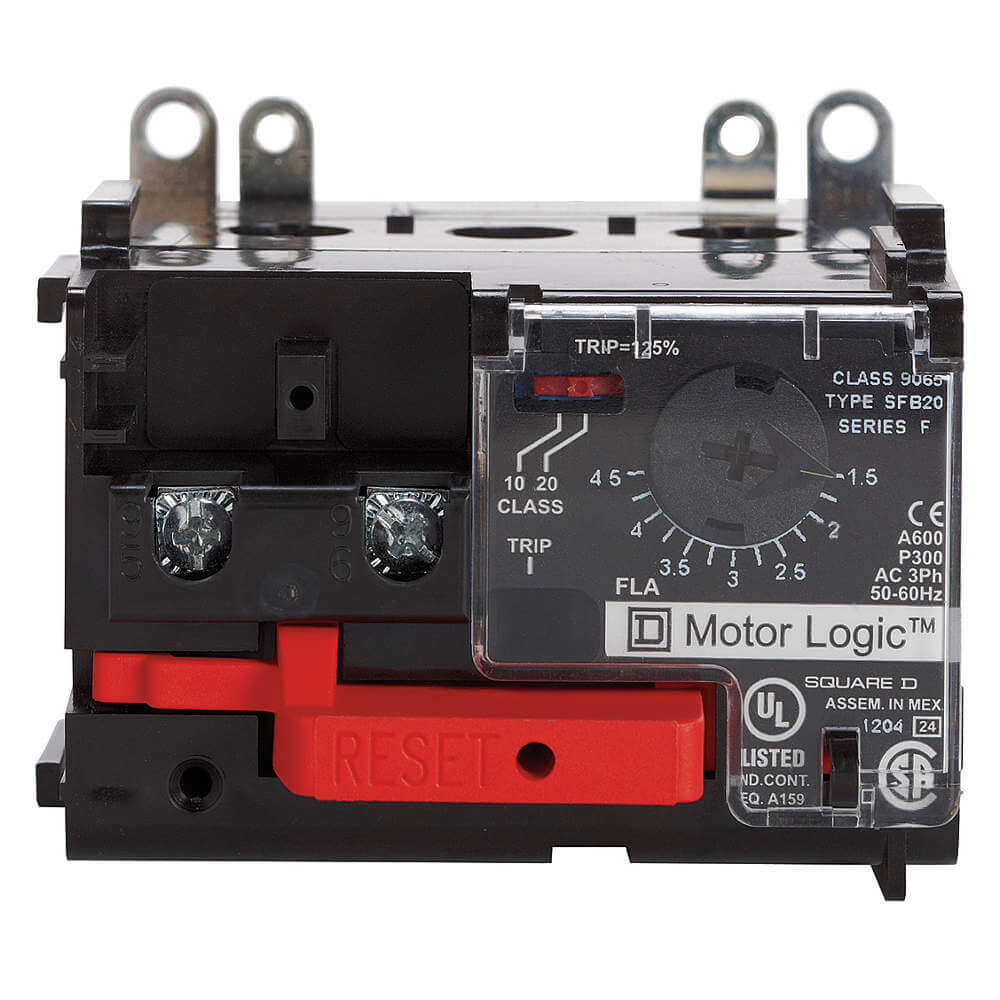

9065SF420 | Yes | 5.9" | 5.92" | 5.33" | 4.53" | 4 1/2" | 45-135A | - | €1,061.43 |
