SQUARE D 9002AW12 Heavy Duty Foot Switch Maintained Action
Item: AF9GLGModel: 9002AW12Cross Ref: 2ET89
7 In Stock
Ships within 2 days via
5.00% off
€814.03 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Heavy Duty Foot Switch |
| Ac Contact Rating | 3A @ 230V, 6A @ 115V |
| Action Type | Maintained |
| Cable Entry | Conduit Entrance |
| Cable Entry Type | NPT |
| Color | Yellow |
| Contact Arrangement | SPST |
| Contact Form | SPST |
| Contact Operation | 1 Step |
| Dc Contact Rating | 1.1A @ 250V, 2.2A @ 125V |
| Depth | 4.844" , 9.02" |
| Display Qty | 1 |
| Enclosure Rating | NEMA 2/4/13 |
| Features | No Shielding |
| Foot Guard Included | Guard Included |
| Hazardous Location Specification | Not Rated |
| Height | 4 4/5" |
| Includes Potentiometer | No Potentiometer Included |
| Ip Rating | Not Rated |
| Length | 9" |
| Manufacturer Warranty Length | 18 Months |
| Material | Aluminum |
| Nema Enclosure Rating | NEMA 2, NEMA 4, NEMA 13 |
| Nema Rating | NEMA 2, 4, 13 |
| Number Of Pedals | 1 |
| Operator Action | Maintained |
| Overall Depth | 9.02" |
| Overall Height | 4.84" |
| Overall Width | 5.39" |
| Power Source | Electrically Corded |
| Protection Type | Pedal Shield, Side Shield |
| Rated Breaking Capacity | 6A, 115V AC Inductive Control Circuit UL 508, 3A, 230V AC Inductive Control Circuit UL 508, 2.2A, 125V DC Inductive Control Circuit UL 508, 2.2A, 125V DC Resistive Control Circuit UL 508, 1.1A, 250V DC Inductive Control Circuit UL 508, 1.1A, 250V DC Resistive Control Circuit UL 508 |
| Returnability | Yes |
| Series | 9002AW Series |
| Switch Action | Maintained |
| Termination Connection Type | Screw Terminal |
| Voltage Rating | 600V AC/DC |
| Width | 5.4" , 5.531" |
Shipping Info:
| Ship weight (kg) | 2.05 |
| Ship height (cm) | 14.5 |
| Ship length (cm) | 30.2 |
| Ship width (cm) | 15.01 |
| HS code | 8536509065 |
| Country of Origin | MX |
Product Variants
| Product | Model | Contact Form | Material | Depth | Action Type | Height | Operator Action | Color | Nema Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

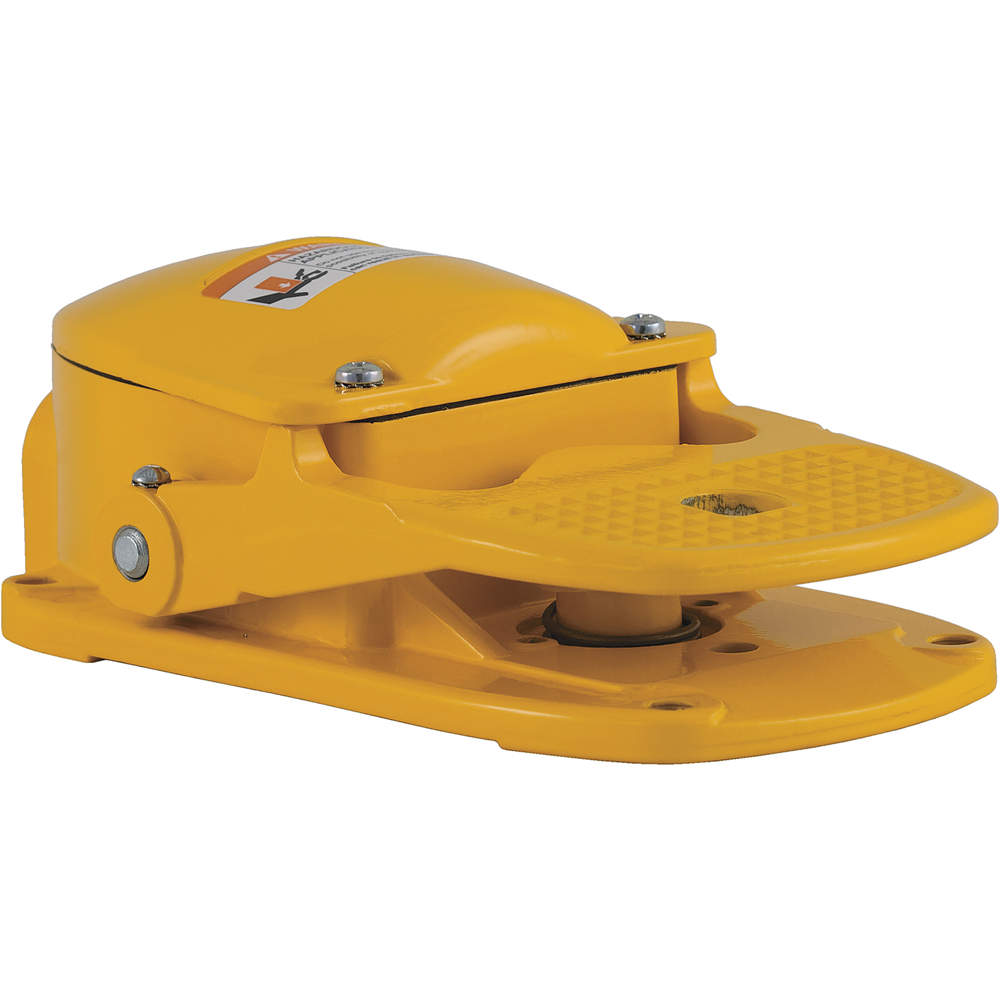

9002AW1 | SPDT | Aluminum | 3 7/8" | Momentary | 3.9" | Spring Return | Yellow | NEMA 2, 4, 13 | €671.01 | |
 |

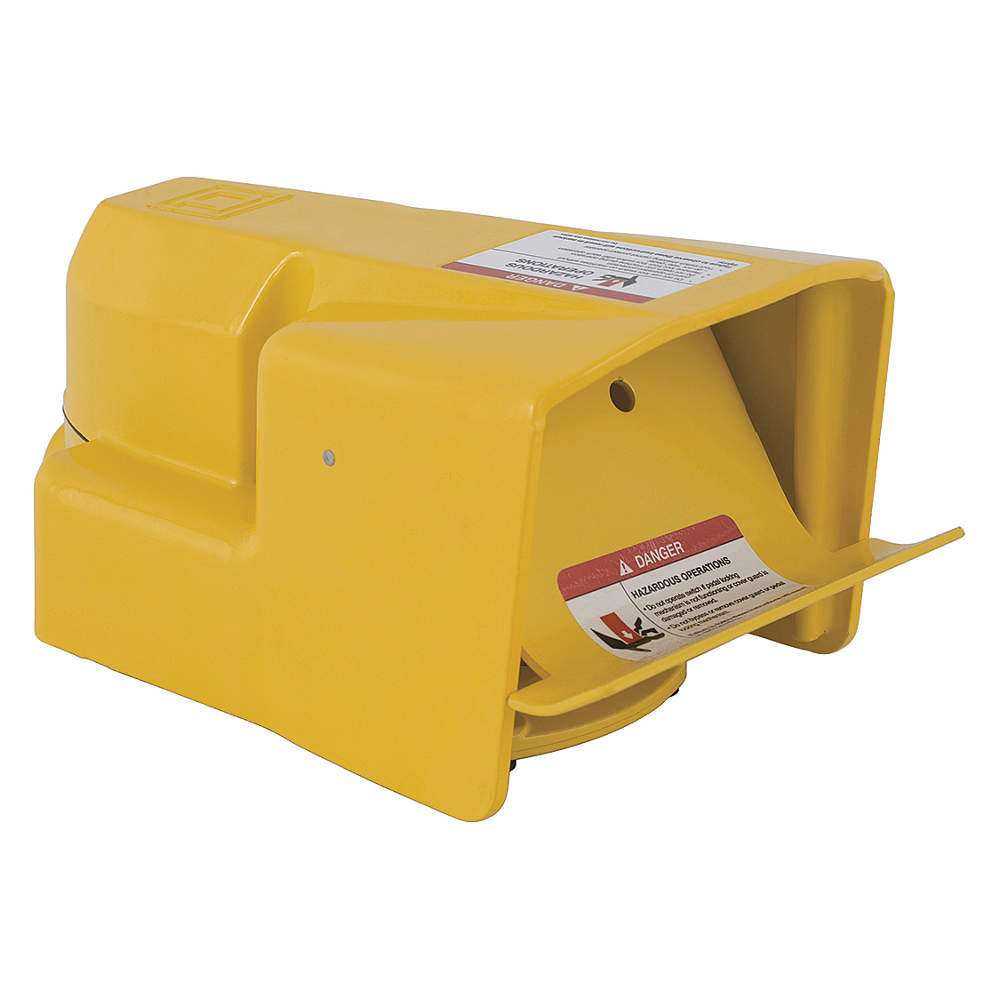

9002AW117 | SPST | Steel | 8 1/2" | Momentary | 6.3" | Spring Return | Yellow | NEMA 2, 4, 13 | €1,048.56 | |
|
9002AW124 | DPDT | Steel | 8 1/2" | Momentary | 6.3" | Spring Return | Yellow | NEMA 2, 4, 13 | €1,264.51 | |
|
9002AW13 | SPST | Steel | 3 7/8" | Momentary | 3.9" | Spring Return | Yellow | NEMA 2, 4, 13 | €999.00 | |
|
9002AW132 | SPDT | Steel | 8 1/2" | Momentary | 6.3" | Spring Return | Yellow | NEMA 2, 4, 13 | €1,242.11 | |
|
9002AW14 | DPDT | Steel | 4.844" | Momentary | 4 4/5" | Spring Return | Yellow | NEMA 2, 4, 13 | €863.12 | |
|
9002AW2 | SPDT | Steel | 4.844" | Momentary | 4 4/5" | Spring Return | Yellow | NEMA 2, 4, 13 | €595.52 |
