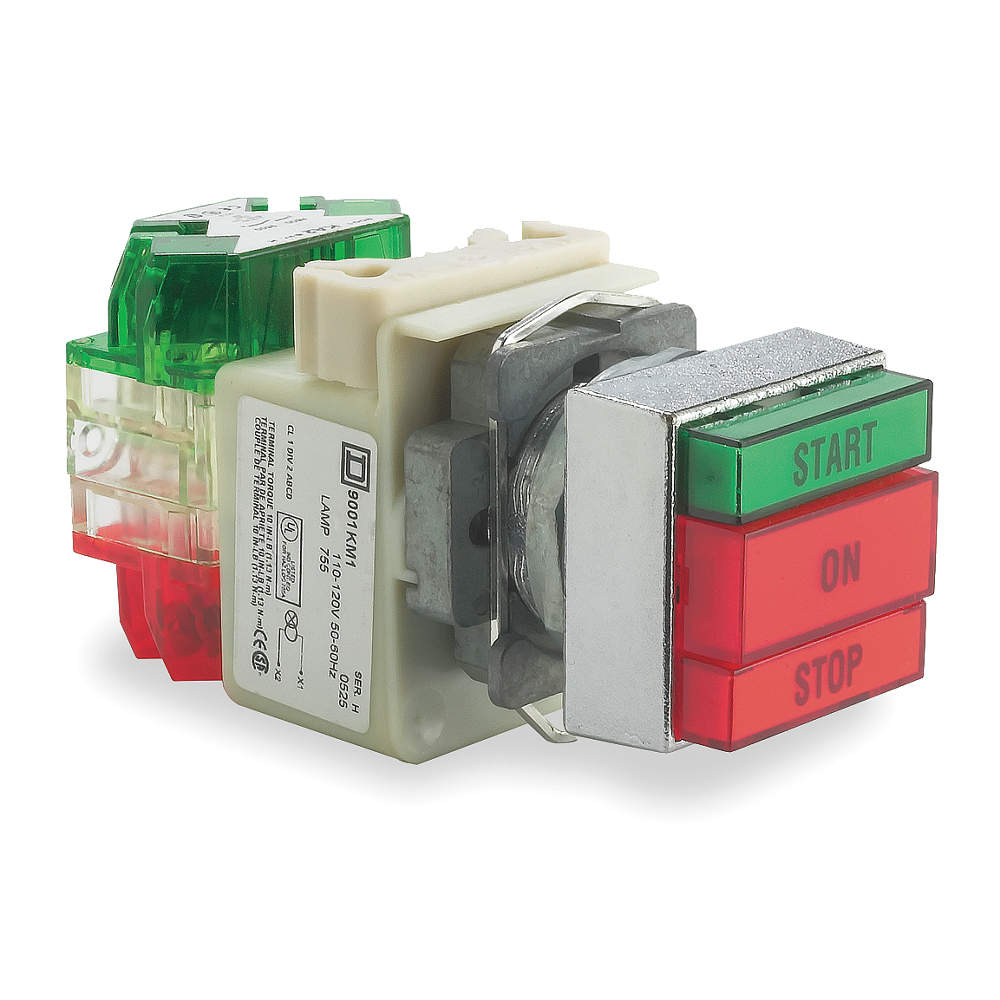

SQUARE D 9001KXRG137 Illuminated Push Button 30mm 1no/1nc Green/red
Item: AF9GJLModel: 9001KXRG137Cross Ref: 2EP58
7 In Stock
Ships within 2 days via
5.00% off
€427.55 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Illuminated Push Button |
| Ac Contact Rating | 1.2A @ 600V, 1.5A @ 480V, 3A @ 240V, 6A @ 120V |
| Action | Momentary |
| Basic Material | Metal |
| Bezel Material | Metal |
| Bezel Material Finish | Chromium Plated |
| Cap/operator Or Lens Colour | Green, Red |
| Component Type | Illuminated Push-Button |
| Contact Form | 1NO/1NC |
| Contact Rating | 10A @ 600V AC |
| Contact Type And Composition | 1 NO + 1 NC |
| Dc Contact Rating | 0.1A @ 600V, 0.27A @ 250V, 0.55A @ 125V |
| Device Presentation | Complete Product |
| Display Qty | 1 |
| Features | Finger Safe Terminals, Self Grounding |
| Head Material | Metal |
| Head/lens Color | Green |
| Ip Rating | IP20, IP66 |
| Lamp Bulb Type | Incandescent |
| Lamp Module Type | Full Voltage |
| Lamp Module Voltage | 120V AC |
| Lamp Type | Incandescent |
| Lamp Voltage | 120V AC |
| Lamp Voltage - Maximum | 120V AC |
| Legend | Start/On/Stop |
| Legend Background Color | Green, Red |
| Legend Color | Black |
| Legend/background Color | Black, Green, Red |
| Manufacturer Warranty Length | 18 Months |
| Mounting Diameter | 1 1/5" |
| Nema Contact Rating Designation | A600/Q600 |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 12, NEMA 13 |
| Nema Rating | NEMA 13, NEMA 4, NEMA 4X |
| Number Of Heads | 3 |
| Number Of Indicator Lights | 0 |
| Number Of Operators | 3 |
| Operating Temperature - Maximum | 140°F |
| Operating Temperature - Minimum | -22°F |
| Operator Illumination | Illuminated |
| Operator Material | Metal |
| Operator Voltage Rating - Maximum | 600V AC |
| Panel Mounting Hole Diameter | 30 mm |
| Product Type | Push Button Operators |
| Push Button Style | Flush |
| Returnability | Yes |
| Series | 9001K Series |
| Shape | Square |
| Terminal Connection | Screw Clamp |
| Type Of Operator | Dual, No Guard, Rectangle With One Pilot Light |
Shipping Info:
| Ship weight (kg) | 0.32 |
| Ship height (cm) | 5.11 |
| Ship length (cm) | 11.4 |
| Ship width (cm) | 6.1 |
| HS code | 8536509031 |
| Country of Origin | MX |
Product Variants
| Product | Model | Contact Form | Lamp Module Type | Ip Rating | Action | Legend | Lamp Voltage | Terminal Connection | Lamp Module Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

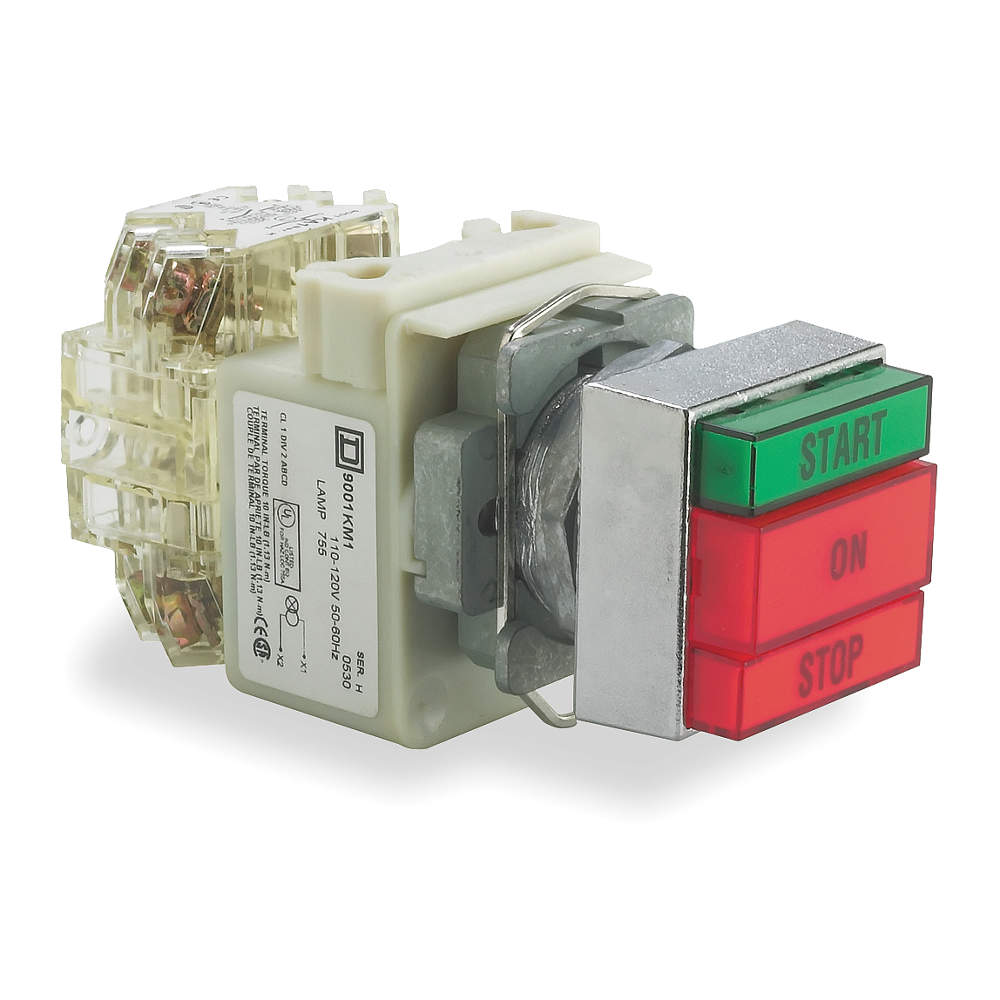

9001KXRG117 | 2NO/2NC | Transformer | IP65 | Momentary | Start/On/Stop | 120V AC | - | 120V AC | €556.62 |
