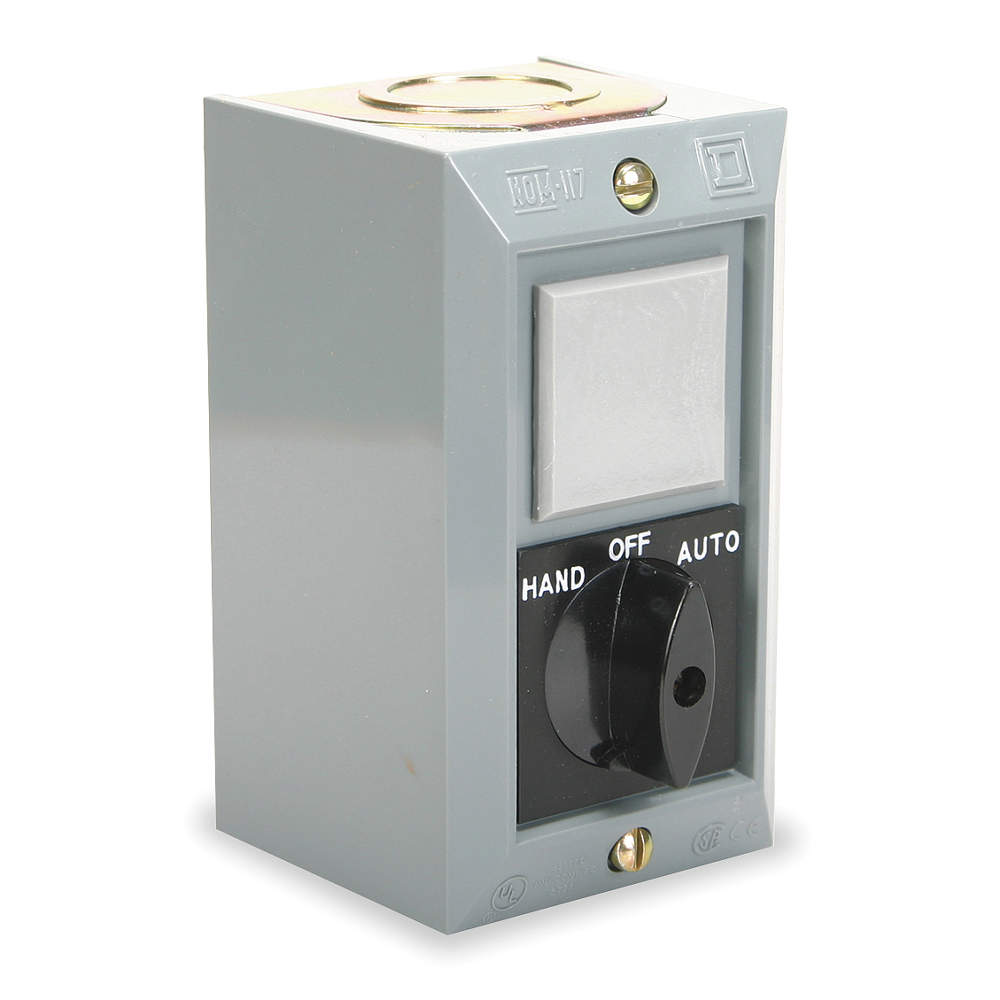

SQUARE D 9001BG112 Control Station Selector Switch 2no
Item: AF9GCKModel: 9001BG112Cross Ref: 2EK12
7 In Stock
Ships within 2 days via
5.00% off
€134.91 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Selector Switch Control Station |
| Ac Contact Rating | 0.6A @ 600V, 0.75A @ 480V, 1.5A @ 240V, 3.75A @ 120V |
| Action Type | Maintained |
| Component Type | Complete Control Station |
| Connections Terminals | Screw Clamp Terminal |
| Contact Form | 1NO/1NC |
| Contact Rating | 5A @ 600V AC |
| Contact Type And Composition | 1 NO + 1 NC |
| Dc Contact Rating | 0.2A @ 600V, 0.55A @ 240V, 1.1A @ 120V |
| Device Mounting | Surface |
| Enclosure Color | Gray |
| Enclosure Material | Plastic |
| Environmental Characteristic | Standard Environment |
| Environments & Applications | Indoor Use Only |
| Green Certification Or Other Recognition | RoHS.png |
| Hub Size | 3/4" |
| Hub Style | Feed Thru |
| Ip Rating | IP20 |
| Maintained Action Release | Twist |
| Manufacturer Warranty Length | 18 Months |
| Mounting | Wall |
| Mounting Style | Surface |
| Nema Enclosure Rating | 1 |
| Number Of Operators | 1 |
| Number Of Pilot Lights | 0 |
| Number Of Selector Switch Positions | 3 |
| Number Of Speeds | 1 |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -13°F |
| Operator Action | (1) Maintained |
| Operator Color | Black |
| Operator Configuration | Selector Switch |
| Operator Legend | Hand/Off/Auto |
| Overall Depth | 2.34" |
| Overall Height | 5" |
| Overall Width | 2.06" |
| Rated Operational Amps | 5A |
| Resistance Properties | Dust Resistant, Impact Resistant, Vibration Resistant |
| Returnability | Yes |
| Series | 9001 Series |
| Type Of Installation | Indoor |
| Type Of Operator | Selector Switch |
Shipping Info:
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 5.59 |
| Ship length (cm) | 10.21 |
| Ship width (cm) | 6.4 |
| HS code | 8536509065 |
| Country of Origin | MX |
Product Details:
- Mechanical Interlock (No)
