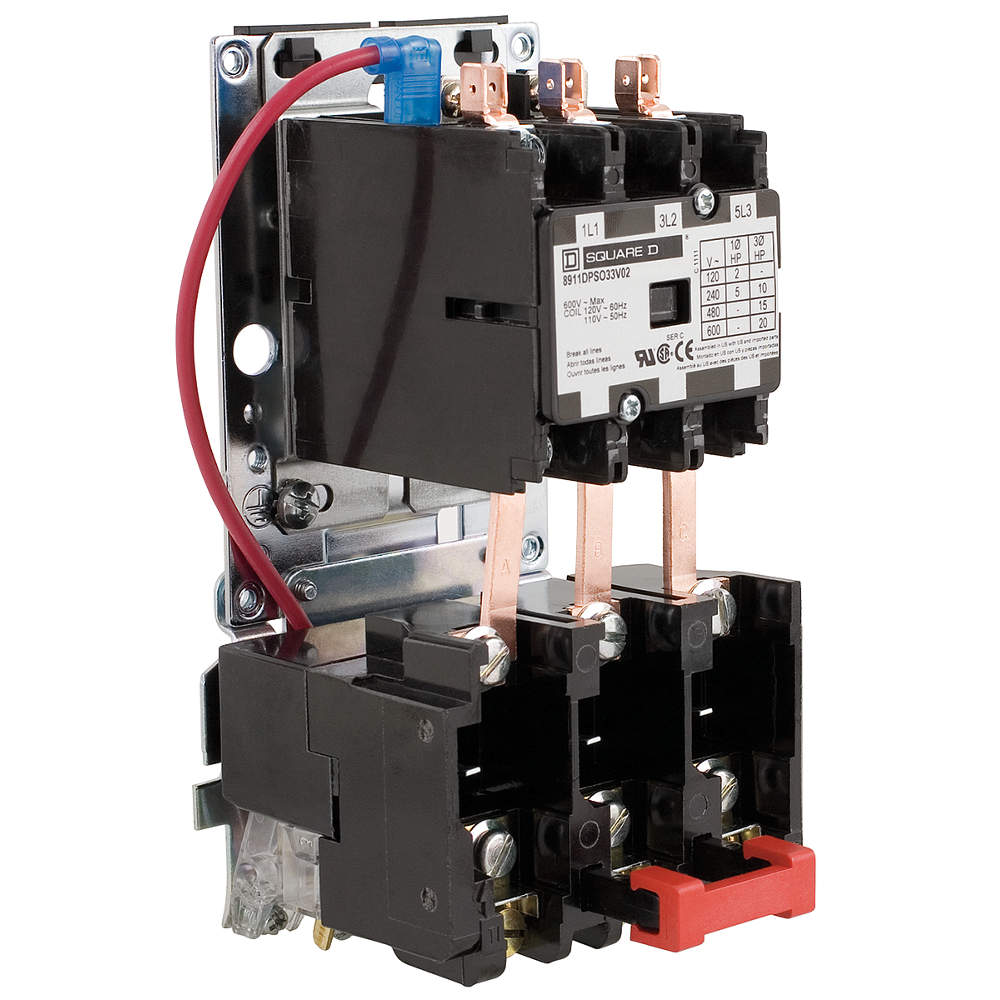

SQUARE D 8911DPSO43V02 DP Motor Starter 3P 40A 120V Coil Open
Item: AG9CBNModel: 8911DPSO43V02Cross Ref: 11W230
7 In Stock
Ships within 2 days via
10.00% off
€427.58 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Motor Starter |
| Action | Nonreversing |
| Amps | 40A |
| Coil Voltage | 120V AC |
| Depth | 4.09" |
| Height | 6.73" |
| Horsepower @ Three Phase - 240v Ac | 10 hp |
| Horsepower @ Three Phase - 600v Ac | 25 hp |
| Hp @ 1 Phase - 120v | 3 hp |
| Hp @ 1 Phase - 240v | 7 1/2 hp |
| Hp @ 3 Phase - 480v | 20 hp |
| Hp @ 3 Phase - 575v | 20 hp |
| Hp @ Single Phase - 240v Ac | 7 1/2 hp |
| Hz | 50/60 Hz |
| Includes | Trip-Free Reset Mechanism |
| Locked Rotor Load | 160A @ 575V AC, 200A @ 460V AC, 240A @ 230V AC |
| Max Current (ac) | 40A |
| Maximum Voltage Rating | 600V AC |
| Mechanical Operating Durability | 500000 |
| Mounting Hole Distance - Height | 8.13" |
| Nema Enclosure Rating | No Enclosure |
| Nominal Coil Voltage @ 60hz | 120V AC |
| Number Of Poles | 3 |
| Overall Depth | 4.09" |
| Overall Height | 6.73" |
| Overall Width | 3 1/2" |
| Overload Protection Type | Thermal |
| Phase | Three |
| Reversing Capability | Non-reversing |
| Series | CLASS 8911 TYPE DP Series |
| Thermal Units Required | 3 Thermal Units Required (Not Included) |
| Width | 3 1/2" |
Shipping Info:
| Ship weight (kg) | 1.04 |
| Ship height (cm) | 17.09 |
| Ship length (cm) | 10.39 |
| Ship width (cm) | 8.89 |
| Country of Origin | CN |
Product Details:
- Enclosure NEMA Rating : No Enclosure
- HP @ 3 Phase - 240V : 10
Product Variants
| Model | Coil Voltage | Height | Hp @ 1 Phase - 120v | Hp @ 3 Phase - 575v | Hp @ 3 Phase - 480v | Depth | Hp @ 1 Phase - 240v | Overall Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 8911DPSG13V02 | 120V AC | 1" | 1 1/2 hp | 5 hp | 7 1/2 hp | 5 14/25" | 3 hp | 10" | €675.42 | |
| 8911DPSG13V06 | 480V AC | 1" | 1 1/2 hp | 5 hp | 7 1/2 hp | 5 14/25" | 3 hp | 10" | €675.42 | |
| 8911DPSG13V09 | 208-240V AC | 1" | 1 1/2 hp | 5 hp | 7 1/2 hp | 5 14/25" | 3 hp | 10" | €675.42 | |
| 8911DPSG23V06 | 480V AC | 1" | 2 hp | 10 hp | 15 hp | 5 14/25" | 5 hp | 10" | €669.09 | |
| 8911DPSG23V09 | 208-240V AC | 1" | 2 hp | 20 hp | 15 hp | 5 14/25" | - | 10" | €669.09 | |
| 8911DPSG33V02 | 120V AC | 1" | 2 hp | 15 hp | 15 hp | 5 14/25" | 5 hp | 10" | €435.49 | |
| 8911DPSG33V06 | 480V AC | 1" | 2 hp | 15 hp | 15 hp | 5 14/25" | 5 hp | - | €709.66 |
