FREE delivery on orders over €150

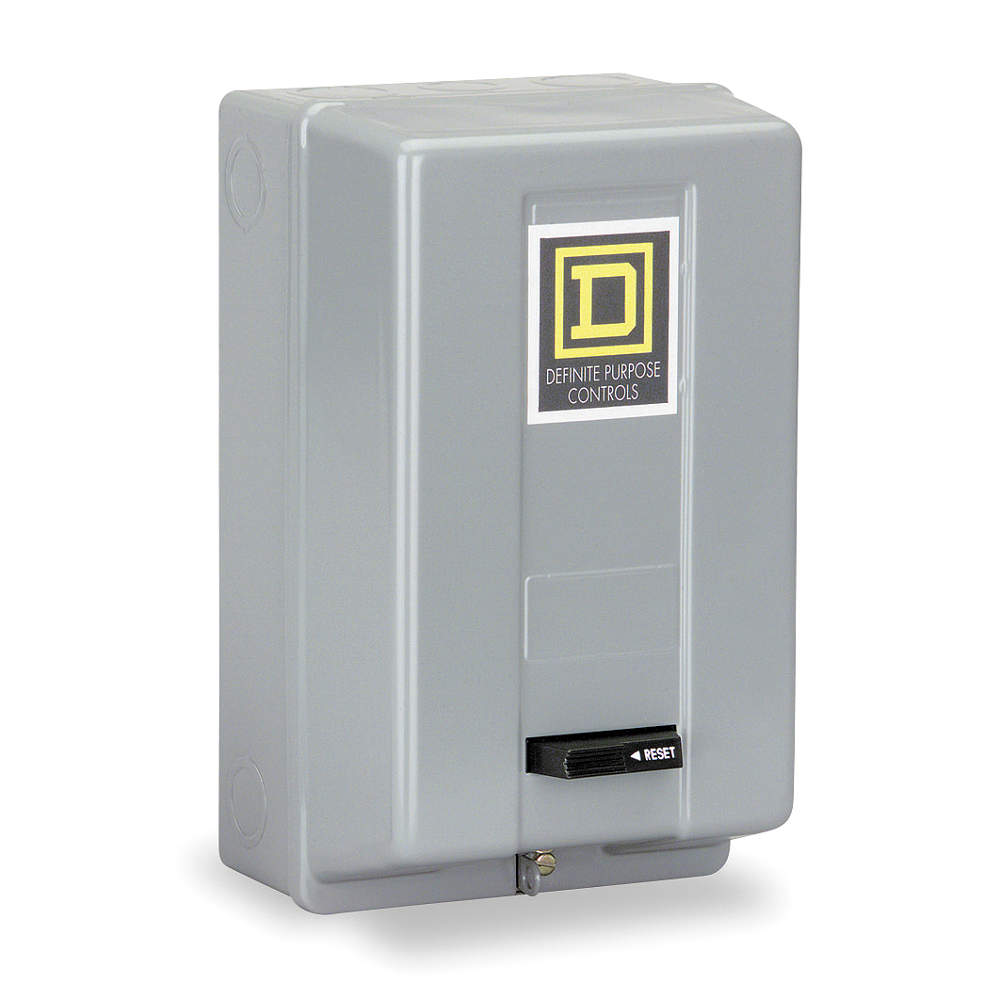

SQUARE D 8911DPSG53V06 DP Motor Starter 3P 50A 480V Coil NEMA1
Item: AJ2GZPModel: 8911DPSG53V06Cross Ref: 4DF22
7 In Stock
Ships within 2 days via
5.00% off
€1,175.22 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Motor Starter |
| Action | Nonreversing |
| Amps | 50A |
| Coil Voltage | 480V AC |
| Control Circuit Frequency | 50/60 Hz |
| Control Circuit Voltage | 440/480V AC |
| Depth | 5 14/25" |
| Enclosure Material | Sheet Steel |
| Enclosure Rating | NEMA 1 |
| Frequency | 50/60 Hz |
| Height | 1" |
| Hp | 3 hp @ 115V AC, 10 hp @ 230V AC, 15 hp @ 230V AC, 30 hp @ 460V AC, 30 hp @ 575V AC |
| Hp @ 1 Ph-240v | 10 hp |
| Hp @ 1 Phase-120v | 3 hp |
| Hp @ 1 Phase-240v | 10 hp |
| Hp @ 3 Ph-240v | 15 hp |
| Hp @ 3 Ph-480v | 30 hp |
| Hp @ 3 Phase-575v | 30 hp |
| Hp @ 3 Phase-600v | 30 hp |
| Included | Trip-Free Reset Mechanism |
| Locked Rotor Amps | 200/250/300A |
| Locked Rotor Load | 200A @ 575V AC, 250A @ 460V AC, 300A @ 230V AC |
| Locked Rotor Voltage | 230/460/575V AC |
| Max. Amps (ac) | 50A |
| Max. Voltage | 600V AC |
| Mechanical Operating Durability | 500000 |
| Mounting Hole Distance Width | 4.13" |
| Mounting Hole Distance-height | 8.13" |
| Nema Enclosure Rating | 1 |
| No. Of Poles | 3 |
| No. Of Thermal Units | 3 |
| Nominal Coil Voltage @ 60hz | 480V AC |
| Overall Depth | 5.56" |
| Overall Height | 10" |
| Overall Width | 6" |
| Overload Protection Type | Thermal |
| Overload Type | Melting alloy |
| Phase | 3 |
| Returnability | Yes |
| Reversing Capability | Non Reversing |
| Series | CLASS 8911 TYPE DP Series |
| Thermal Units Required | 3 Thermal Units Required (Not Included) |
| Width | 6" |
Shipping Info:
| Ship weight (kg) | 4.38 |
| Ship height (cm) | 18.8 |
| Ship length (cm) | 34.29 |
| Ship width (cm) | 22.1 |
| Country of Origin | CN |
Product Details:
- Enclosure NEMA Rating : 1
- HP @ 3 Phase - 240V : 15
Product Variants
| Model | Coil Voltage | Height | Depth | Overall Height | Action | Enclosure Nema Rating | Price | |
|---|---|---|---|---|---|---|---|---|
| 8911DPSG13V02 | 120V AC | 1" | 5 14/25" | 10" | Nonreversing | - | €675.42 | |
| 8911DPSG13V06 | 480V AC | 1" | 5 14/25" | 10" | Nonreversing | - | €675.42 | |
| 8911DPSG13V09 | 208-240V AC | 1" | 5 14/25" | 10" | Nonreversing | - | €675.42 | |
| 8911DPSG23V06 | 480V AC | 1" | 5 14/25" | 10" | Nonreversing | - | €669.09 | |
| 8911DPSG23V09 | 208-240V AC | 1" | 5 14/25" | 10" | Nonreversing | - | €669.09 | |
| 8911DPSG33V02 | 120V AC | 1" | 5 14/25" | 10" | Nonreversing | - | €432.43 | |
| 8911DPSG33V06 | 480V AC | 1" | 5 14/25" | - | Nonreversing | - | €709.66 |
