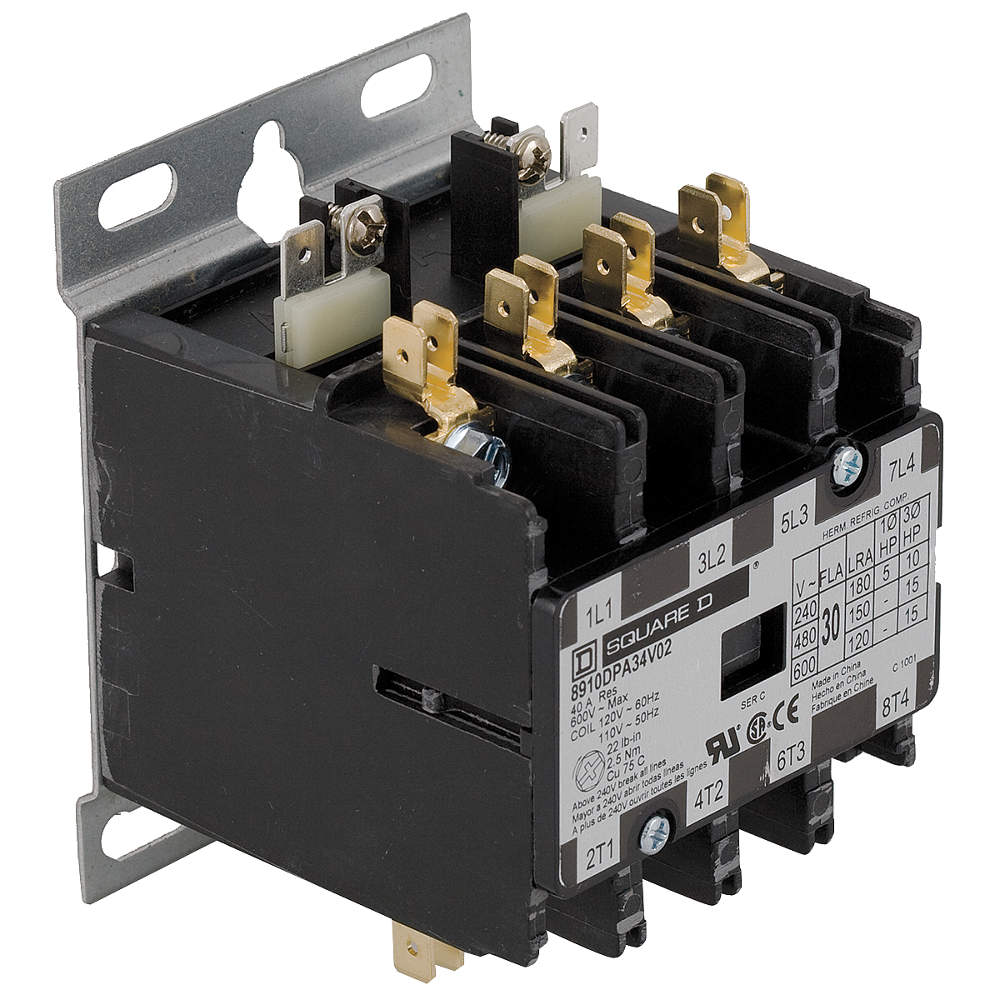

SQUARE D 8910DPA34V02 Contactor 120vac 30a 4p Open
Item: AG7DJPModel: 8910DPA34V02Cross Ref: 5KAK5
7 In Stock
Ships within 2 days via
5.00% off
€156.19 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Contactor |
| Action Type | Non Reversing |
| Coil Voltage | 120V AC |
| Component Type | Definite Purpose Contactor |
| Contactor Frame Size | Standard |
| Contactor Type | Definite Purpose |
| Control Circuit Voltage | 110/120V AC |
| Depth | 3" , 3.11" |
| Electrical Connection | Binder Head, Quick Connect Terminals |
| Enclosure Type | Open |
| Frequency | 50/60 Hz |
| Full Load Amps-resistive | 40A |
| Height | 3.77" , 4" |
| Hp @ 1 Ph-240v | 5 hp |
| Hp @ 1 Phase-120v | 2 hp |
| Hp @ 3 Ph-240v | 10 hp |
| Hp @ 3 Phase-208v | 2.16 hp |
| Hp @ 3 Phase-230v | 10 hp |
| Hp @ 3 Phase-480v | 15 hp |
| Hp @ 3 Phase-575v | 15 hp |
| Hp @ 3 Phase-600v | 50 hp |
| Inductive Full Load Amps | 30A |
| Line Rated Amps | 30A |
| Locked Rotor Load | 120A @ 575V AC, 150A @ 460V AC, 180A @ 277V AC |
| Locked Rotor Rated Amps | 150A At 460V AC, 120A At 575V AC, 180A At 277V AC |
| Main Pole Contact Form | 4NO |
| Max. Hp | 2 hp @ 115V AC, 5 hp @ 230V AC, 10 hp @ 230V AC, 15 hp @ 460V AC, 20 hp @ 575V AC |
| Max. Voltage | 600V AC |
| Mounting Hole Dia. | 1/5" |
| Mounting Hole Distance Width | 2.03" |
| Mounting Hole Distance-height | 3.28" |
| Nema Enclosure Rating | No Enclosure |
| No. Of Poles | 4 |
| Nominal Coil Voltage @ 60hz | 120V AC |
| Overall Depth | 3" |
| Overall Height | 3.77" |
| Overall Width | 2 3/4" |
| Phase | 3 |
| Pole Contact Composition | 4 NO , NO |
| Rated Operational Voltage | 600V |
| Resistive Full Load Amps | 40A |
| Returnability | Yes |
| Reversing Capability | Non Reversing |
| Series | 8910 Series TYPE DPA Series |
| Width | 2.75" , 3.17" |
| Wire Termination Type | Quick Disconnect, Screw Clamp |
Shipping Info:
| Ship weight (kg) | 0.59 |
| Ship height (cm) | 6.86 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 8.13 |
| HS code | 8536490065 |
| Country of Origin | CN |
Product Variants
| Product | Model | Phase | Full Load Amps-resistive | Full Load Amps-inductive | Coil Voltage | Inductive Full Load Amps | Resistive Full Load Amps | Depth | Action Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
8910DP31V02 | 1 | 40A | - | 120V AC | 30A | 40A | 2.22" | Non Reversing | €78.19 | |
|
8910DP31V14 | 1 | 40A | - | 24V AC | 30A | 40A | 2.22" | Non Reversing | €78.19 | |
 |
8910DPA62V14 | 1 | 75A | - | 24V AC | 60A | 75A | 3.67" | Non Reversing | €282.35 | |
 |
8910DP12V09 | 1 | 30A | - | 208/240V AC | 20A | 30A | 2.22" | Non Reversing | €65.77 | |
 |
8910DPA63V09 | 3 | 75A | - | 220/208-240V AC | 60A | 75A | 3.67" | Non Reversing | €314.80 | |
|
8910DPA93V02 | 3 | 120A | - | 120V AC | 90A | 120A | 4.37" | Non Reversing | €508.31 | |
|
8910DPA93V09 | 3 | 120A | - | 220/208-240V AC | 90A | 120A | 4.37" | Non Reversing | €508.31 |
