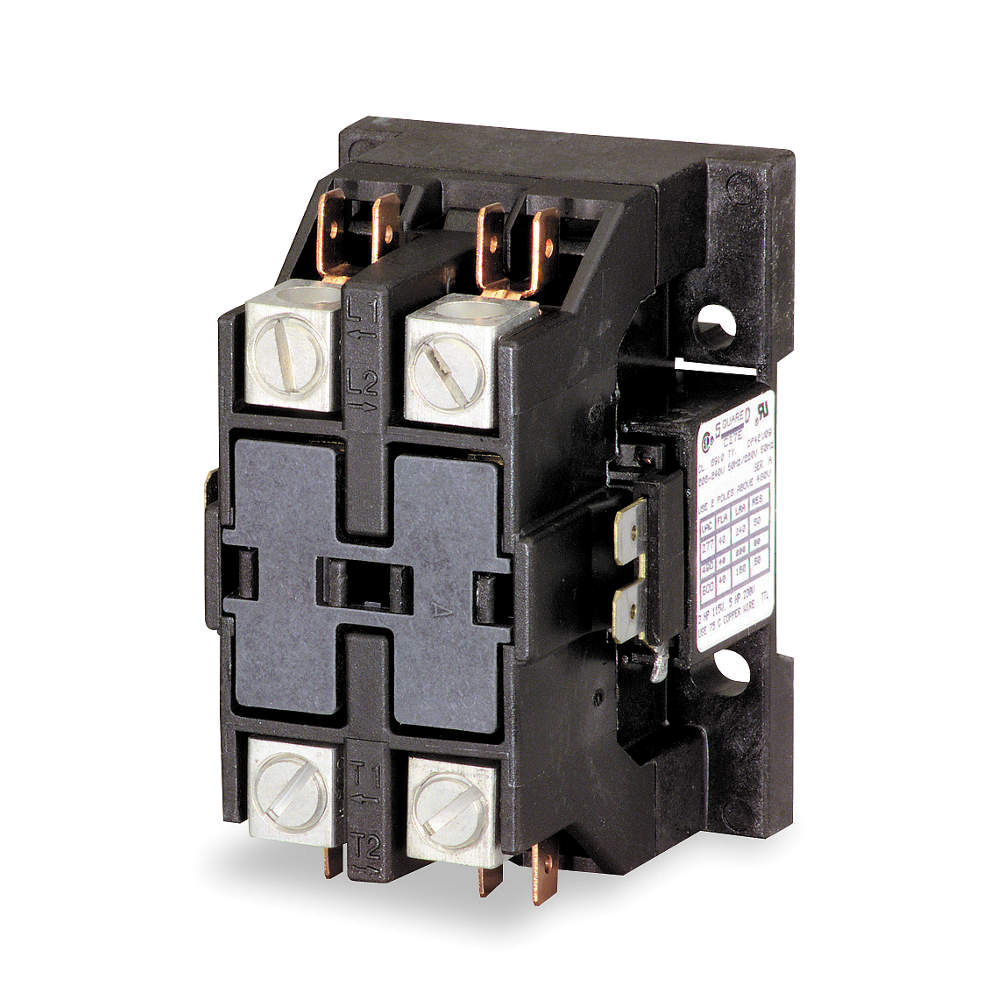

SQUARE D 8910DP42V09 Contactor, Definite Purpose, 40A, 2 Pole, 208/240VAC, 60Hz, 220VAC, 50Hz
Ships within 2 days via
Payment
Product Specifications:
| Item | Definite Purpose Contactor |
| Action Type | Non Reversing |
| Coil Voltage | 220/208-240V AC |
| Contactor Frame Size | Compact |
| Contactor Type | Definite Purpose |
| Depth | 2.22" |
| Electrical Connection | Quick Connect Terminals Box Lugs |
| Enclosure Type | Open |
| Frequency | 50/60 Hz |
| Full Load Current - Resistive | 50A |
| Height | 3.29" |
| Horsepower @ Single Phase - 240v Ac | 5 hp |
| Horsepower @ Three Phase - 600v Ac | 50 hp |
| Housing Color | Gray |
| Hp @ 1 Phase - 120v | 2 hp |
| Hp @ 1 Phase - 230v | 5 hp |
| Hp @ 3 Phase - 208v | 2.16 hp |
| Hp @ 3 Phase - 230v | 164 hp |
| Hp @ 3 Phase - 575v | 2.16 hp |
| Hp Rating | 2 hp @ 115V AC, 5 hp @ 230V AC |
| Inductive Full Load Amps | 40A |
| Locked Rotor Load | 160A @ 575V AC, 200A @ 460V AC, 240A @ 277V AC |
| Main Pole Contact Form | 2NO |
| Maximum Voltage Rating | 600V AC |
| Mounting Hole Diameter | 1/5" |
| Mounting Hole Distance - Height | 1.63" |
| Mounting Hole Distance - Width | 1.63" |
| Mounting Orientation | Multiposition |
| Nema Enclosure Rating | No Enclosure |
| Nominal Coil Voltage @ 60hz | 208-240V AC |
| Number Of Poles | 2 |
| Overall Depth | 2.45" |
| Overall Height | 3 8/25" |
| Phase | 1 |
| Product Datasheet | square-d-8910dp42v09.pdf |
| Resistive Full Load Amps | 50A |
| Reversing Capability | Non-reversing |
| Series | 8910 Series TYPE DP Series |
| Warranty | 18 Months |
| Width | 2 4/25" |
| Wire Termination Type | Box Lug, Quick Disconnect |
Shipping Info:
| Ship weight (kg) | 0.29 |
| Ship height (cm) | 5.84 |
| Ship length (cm) | 8.64 |
| Ship width (cm) | 7.11 |
| HS code | 8536490065 |
| Country of Origin | CN |
Product Details:
Square D 8910DP42V09 compact contactor is ideal for controlling electrical circuits in industrial and commercial applications. This CSA-approved contactor is used in machinery, HVAC systems, lighting and motor control panels, enabling remote switching of electrical loads. It is equipped with two poles, allowing for flexible and efficient control of electrical circuits according to your needs. This UL-listed contactor features quick-connect terminals for easy installation & integration into existing systems more convenient.
Frequently Asked Questions:
Q. What are the factors to be considered while choosing a Square D compact contactor?
A. Major factors include voltage compatibility, load type and capacity, motor size, pole configuration, space constraints, frequency compatibility and installation ease.
Q. What is the voltage rating of this contactor?
A. The contactor operates at 208 / 240VAC, making it compatible with typical electrical systems.
Q. How much current can the contactor handle?
A. The contactor is designed to handle up to 40 amps for inductive loads and up to 50 amps for resistive loads, ensuring reliable operation in various scenarios.
Q. What size of motors can the contactor handle?
A. It can handle 2 HP at 120V 1-phase and 5 HP at 240V 1-phase.
Documentation:
Product Variants
| Product | Model | Number Of Poles | Phase | Hp @ 3 Phase - 480v | Hp @ 3 Phase - 240v | Coil Voltage | Inductive Full Load Amps | Resistive Full Load Amps | Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
8910DP31V02 | 1 | Single | - | - | 120V AC | 30A | 40A | 2.22" | €70.81 | |
|
8910DP31V14 | 1 | Single | - | - | 24V AC | 30A | 40A | 2.22" | €92.27 | |
 |
8910DPA62V14 | 2 | 1 | 30 hp | - | 24V AC | 60A | 75A | 3.67" | €282.35 | |
 |
8910DP12V09 | 2 | 1 | - | - | 208/240V AC | 20A | 30A | 2.22" | €65.77 | |
 |
8910DPA63V09 | 3 | Three | 30 hp | - | 220/208-240V AC | 60A | 75A | 3.67" | €282.13 | |
|
8910DPA93V02 | 3 | Three | 50 hp | - | 120V AC | 90A | 120A | 4.37" | €456.28 | |
|
8910DPA93V09 | 3 | Three | 50 hp | - | 220/208-240V AC | 90A | 120A | 4.37" | €456.28 |
