SQUARE D 8536SGO1V02S Magnetic Motor Starter Nema 120v 3p 270a
Item: AF6PHJModel: 8536SGO1V02SCross Ref: 1H553
In Stock : 12 Units Get it by Wednesday, Apr 1
5.00% off
€11,173.26 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Magnetic Motor Starter |
| Action Type | Nonreversing |
| Amps Rating | 270A |
| Auxiliary Contacts | Without |
| Auxiliary Contacts Included | No Auxiliary Contacts Included |
| Coil Frequency | 50/60 Hz |
| Coil Voltage | 110-120V AC , 110/120V AC |
| Control Circuit Type | Separate |
| Depth | 8 3/4" |
| Enclosure Type | Open |
| Features | Separate Control |
| Frequency | 50/60 Hz |
| Height | 17 14/25" , 17.56" |
| Horsepower @ Three Phase - 208v Ac | 75 hp |
| Horsepower @ Three Phase - 600v Ac | 200 hp |
| Hp @ 3 Phase - 208v | 75 hp |
| Hp @ 3 Phase - 230v | 100 hp |
| Hp @ 3 Phase - 240v | 100 hp |
| Hp @ 3 Phase - 460v | 200 hp |
| Hp @ 3 Phase - 480v | 200 hp |
| Hp @ 3 Phase - 575v | 200 hp |
| Hp Rating | 75 hp @ 200V AC, 100 hp @ 230V AC, 200 hp @ 460V AC, 200 hp @ 575V AC |
| Includes Auxiliary Contacts | No |
| Includes Pilot Light | No |
| Max Current (ac) | 270A |
| Maximum Voltage Rating | 600V AC |
| Nema Enclosure Rating | No Enclosure |
| Nema Size | 5 |
| No. Of Poles | 3 |
| Nominal Coil Voltage @ 60hz | 120V AC |
| Number Of Poles | 3 |
| Operator | Not Available |
| Overall Depth | 8.75" |
| Overall Height | 17.56" |
| Overall Width | 8.56" |
| Overload Protection Type | Thermal |
| Overload Type | Melting Alloy 3 |
| Phase | Three |
| Pilot Light | Without Pilot Light |
| Returnability | Yes |
| Reversing Capability | Non-reversing |
| Sccr | Circuit Breaker 10 kA At 600V AC, Fuse 10 kA At 600V AC |
| Standards | Csa, Ul Listed |
| Starter Style | NEMA |
| Starter Type | NEMA , Non Reversing |
| Terminal Type | Screw Clamp Terminals |
| Thermal Units Required | 3 Melting Alloy Units (Not Included) |
| Width | 8 14/25" , 8.56" |
| Wire Termination Type | Screw Clamp |
Shipping Info:
| Ship weight (kg) | 24.82 |
| Ship height (cm) | 44.6 |
| Ship length (cm) | 22.23 |
| Ship width (cm) | 21.74 |
| HS code | 8536504000 |
| Country of Origin | MX |
Product Variants
| Product | Model | Enclosure Type | Nema Size | Height | Coil Voltage | Hp @ 3 Phase - 575v | Hp @ 3 Phase - 240v | Depth | Hp @ 3 Phase - 230v | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

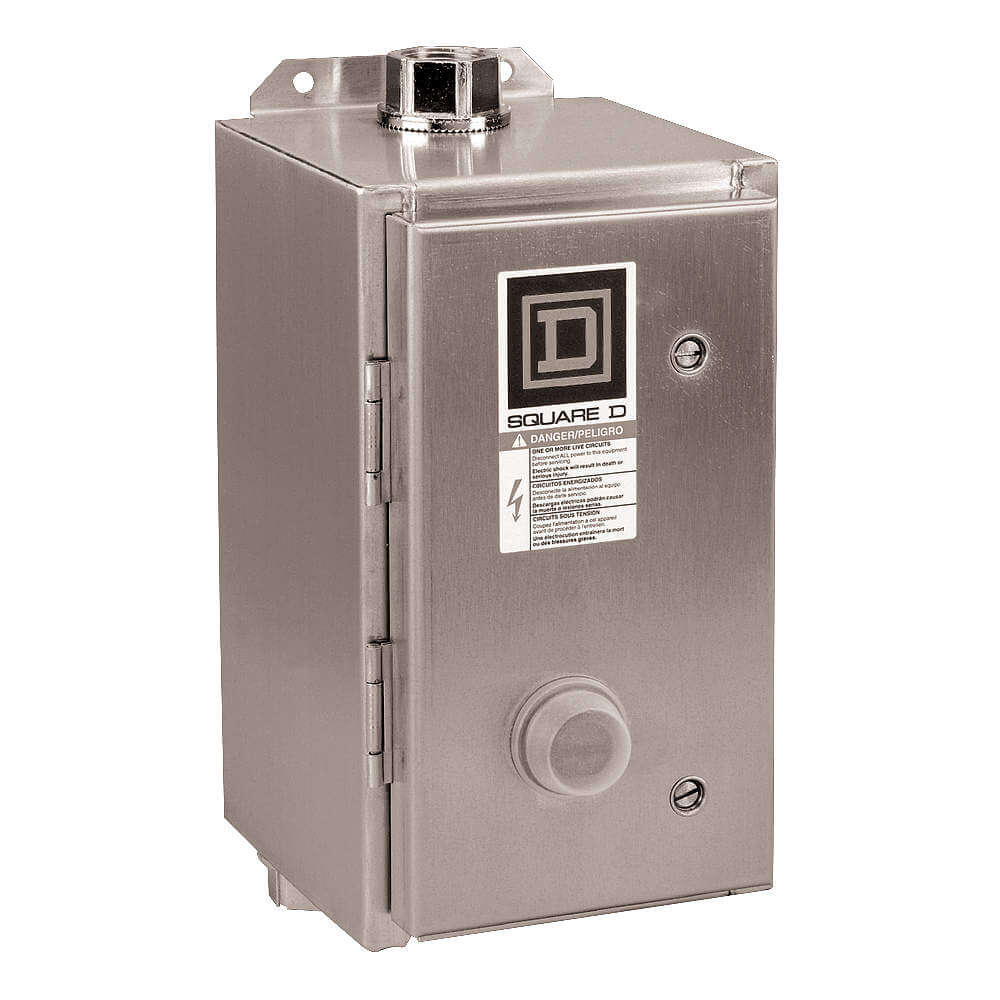

8536SBW12V02S | NEMA 4/4X | - | 13.19" | 110/120V AC | 5 hp | 3 hp | 7.81" | 3 hp | €1,458.25 |
