SQUARE D 8536SCG3V01S Magnetic Motor Starter Nema 24v 3p 27a
Item: AF9FELModel: 8536SCG3V01SCross Ref: 2BX34
7 In Stock
Ships within 2 days via
5.00% off
€958.72 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Magnetic Motor Starter |
| Action Type | Nonreversing |
| Amps Rating | 27A |
| Auxiliary Contacts | Without |
| Coil Frequency | 60 Hz |
| Coil Voltage | 24V , 24V AC |
| Control Circuit Type | Separate |
| Depth | 5 14/25" , 5.56" |
| Enclosure Type | NEMA 1 |
| Height | 10" |
| Hp @ 3 Phase - 208v | 7 1/2 hp |
| Hp @ 3 Phase - 230v | 7 1/2 hp |
| Hp @ 3 Phase - 240v | 7 1/2 hp |
| Hp @ 3 Phase - 460v | 10 hp |
| Hp @ 3 Phase - 480v | 10 hp |
| Hp @ 3 Phase - 575v | 10 hp |
| Hp Rating | 7 1/2 hp @ 200V AC, 7 1/2 hp @ 230V AC, 10 hp @ 460V AC, 10 hp @ 575V AC |
| Max. Voltage Rating | 600V AC |
| Nema Size | NEMA 1 |
| No. Of Poles | 3 |
| Number Of Poles | 3 |
| Overload Type | Melting Alloy 3 |
| Phase | 3 |
| Pilot Light | Without Pilot Light |
| Returnability | Yes |
| Sccr | Circuit Breaker 5 kA At 600V AC, Fuse 5 kA At 600V AC |
| Starter Type | NEMA , Non Reversing |
| Terminal Type | Screw Clamp Terminals |
| Width | 6" |
Shipping Info:
| Ship weight (kg) | 3.38 |
| Ship height (cm) | 16.51 |
| Ship length (cm) | 28.96 |
| Ship width (cm) | 14.99 |
| HS code | 8536504000 |
| Country of Origin | MX |
Product Variants
| Product | Model | Enclosure Type | Nema Size | Amps Ac | Height | Coil Voltage | Hp @ 3 Phase - 240v | Depth | Hp @ 3 Phase - 575v | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
8536SAG12V01S | NEMA 1 | 00 | - | 10" | 24V | 1 1/2 hp | 5 14/25" | 2 hp | €724.06 | |
|
8536SBG2V01S | NEMA 1 | - | 18A | 10" | 24V | 3 hp | 5 14/25" | 5 hp | €874.41 | |
 |
8536SBO2V01S | Open | NEMA 0 | 18A | 6.77" | 24V | 3 hp | 4.22" | 5 hp | €804.93 | |
|
8536SCO3V01S | Open | 1 | - | 6.77" | 24V | 7 1/2 hp | 4.22" | - | €846.74 | |
 |

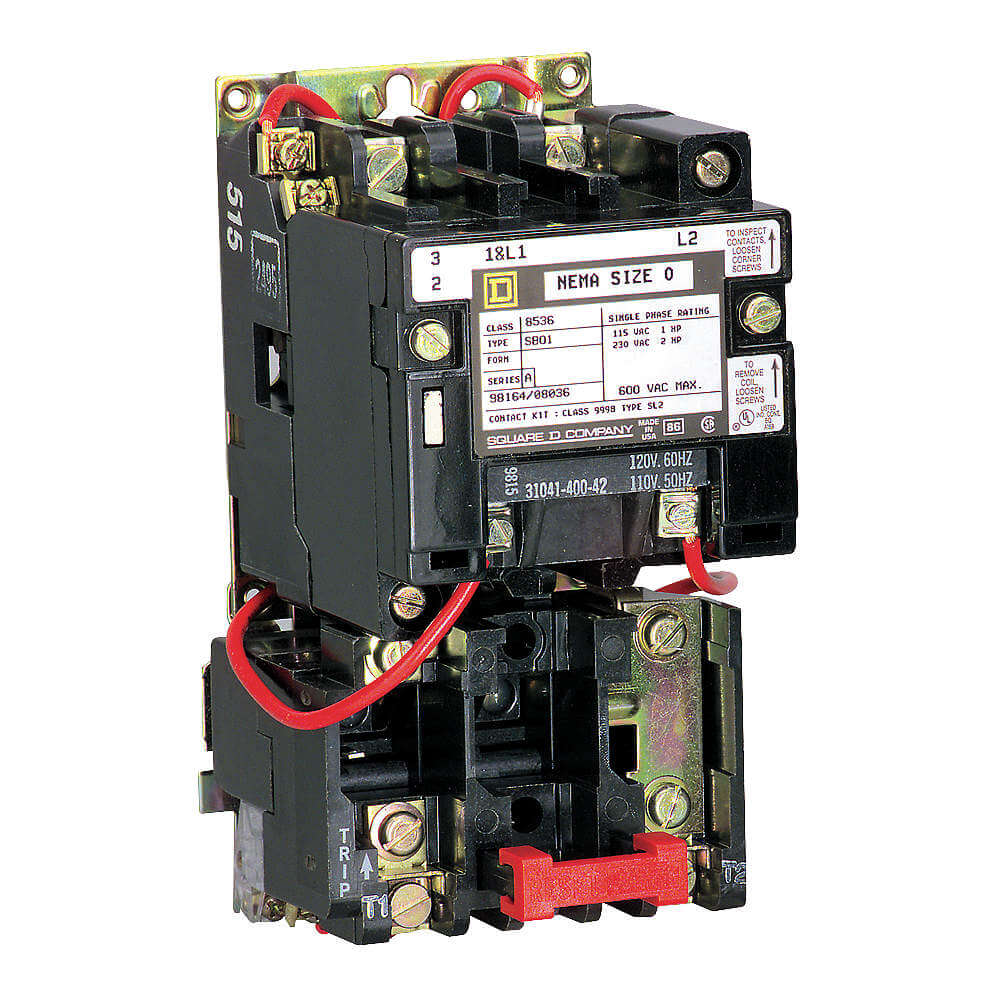

8536SDO1V01S | Open | 2 | 45A | 7.81" | 24V | 15 hp | 4.94" | 25 hp | €1,698.54 |
