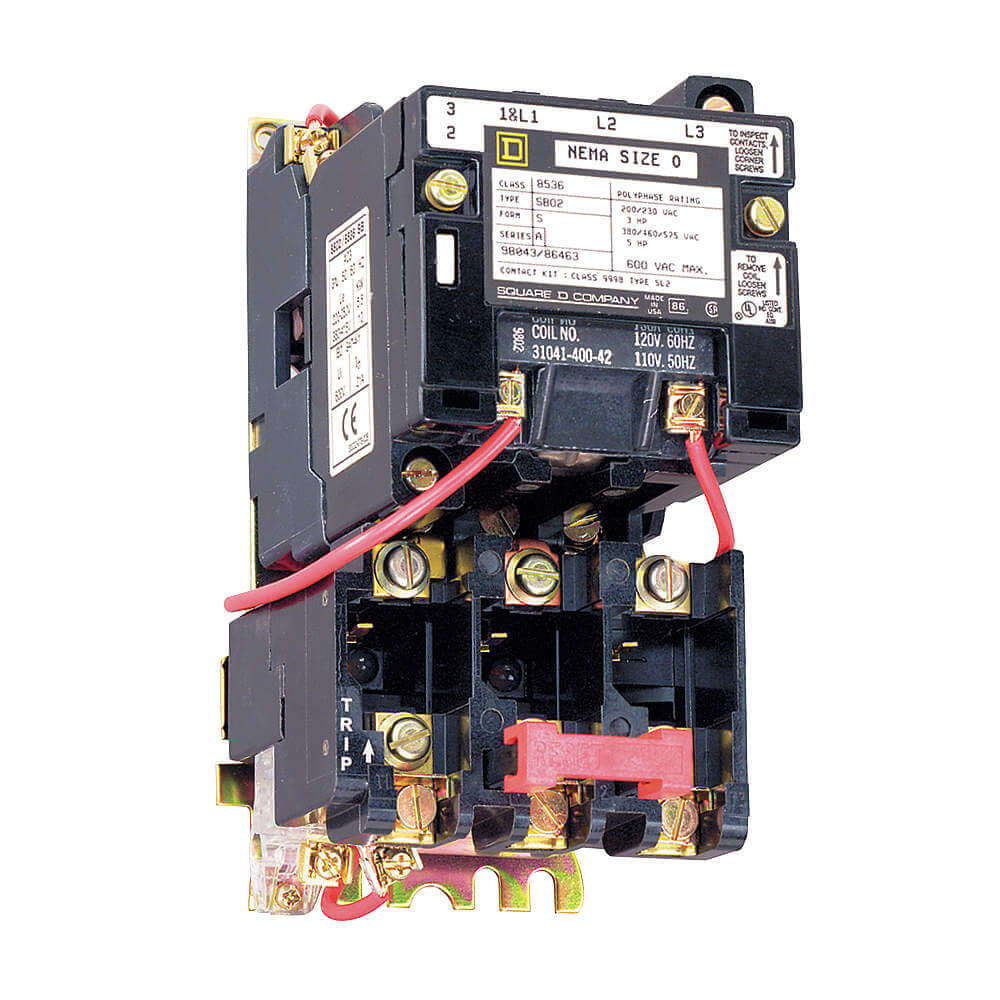

SQUARE D 8536SBO2V02S Magnetic Motor Starter Nema 120v 3p 18a
Item: AF6PEJModel: 8536SBO2V02SCross Ref: 1H491
7 In Stock
Ships within 2 days via
5.00% off
€814.97 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Magnetic Motor Starter |
| Action Type | Nonreversing |
| Amps | 18A |
| Auxiliary Contacts | Without |
| Auxiliary Contacts Included | No Auxiliary Contacts Included |
| Coil Frequency | 50/60 Hz |
| Coil Voltage | 110/120V AC , 120V AC |
| Control Circuit Type | Separate |
| Depth | 4.22" |
| Enclosure Type | Open |
| Features | Separate Control |
| Frequency | 50/60 Hz |
| Height | 6.77" , 6.81" |
| Hp | 3 hp @ 200V AC, 3 hp @ 230V AC, 5 hp @ 460V AC, 5 hp @ 575V AC |
| Hp @ 3 Phase-208v | 3 hp |
| Hp @ 3 Phase-230v | 3 hp |
| Hp @ 3 Phase-240v | 3 hp |
| Hp @ 3 Phase-460v | 5 hp |
| Hp @ 3 Phase-480v | 5 hp |
| Hp @ 3 Phase-575v | 5 hp |
| Hp @ 3 Phase-600v | 5 hp |
| Included Auxiliary Contacts | No |
| Included Pilot Light | No |
| Max. Amps (ac) | 18A |
| Max. Voltage | 600V AC |
| Nema Enclosure Rating | No Enclosure |
| Nema Rating | 0 |
| Nema Size | 0 |
| No. Of Poles | 3 |
| Nominal Coil Voltage @ 60hz | 120V AC |
| Operator | Not Available |
| Overall Depth | 4.22" |
| Overall Height | 6.77" |
| Overall Width | 3 1/2" |
| Overload Protection Type | Thermal |
| Overload Type | Melting Alloy 3 |
| Phase | 3 |
| Pilot Light | Without Pilot Light |
| Returnability | Yes |
| Reversing Capability | Non Reversing |
| Sccr | Circuit Breaker 5 kA At 600V AC, Fuse 5 kA At 600V AC |
| Starter Style | NEMA |
| Starter Type | NEMA , Non Reversing |
| Terminal Type | Screw Clamp Terminals |
| Thermal Units Required | 3 Melting Alloy Units (Not Included) |
| Width | 3.5" , 4.53" |
| Wire Termination Type | Screw Clamp |
Shipping Info:
| Ship weight (kg) | 1.82 |
| Ship height (cm) | 12.19 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 14.73 |
| HS code | 8536504000 |
| Country of Origin | MX |
Product Variants
| Product | Model | No. Of Poles | Coil Voltage | Phase | Overall Depth | Overall Height | Height | Nema Size | Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
8536SAG12V02ES | 3 | 120V AC | 3 | - | - | 10" | 00 | 9A | - | RFQ
|
 |
8536SBO1V02ES | 2 | 120V AC | 1 | 4.22" | 6.77" | 6.77" | - | 18A | €674.09 | |
|
8536SBO2V02ES | 3 | 120V AC | 3 | 4.22" | 6.77" | 6.77" | - | 18A | €755.85 | |
|
8536SCO3V02ES | 3 | 120V AC | 3 | 4.22" | 6.77" | 6.77" | 1 | 27A | €861.66 | |
 |
8536SAG11V02 | 2 | 120V AC | 1 | 5.56" | 10" | 10" | 00 | 9A | €976.04 | |
|
8536SAG12V02S | 3 | 120V AC | 3 | 5.56" | 10" | 10" | 00 | 9A | €822.31 | |
 |
8536SAO12V02S | 3 | 120V AC | 3 | 4.22" | 6.77" | 6.77" | 00 | 9A | €710.80 |
