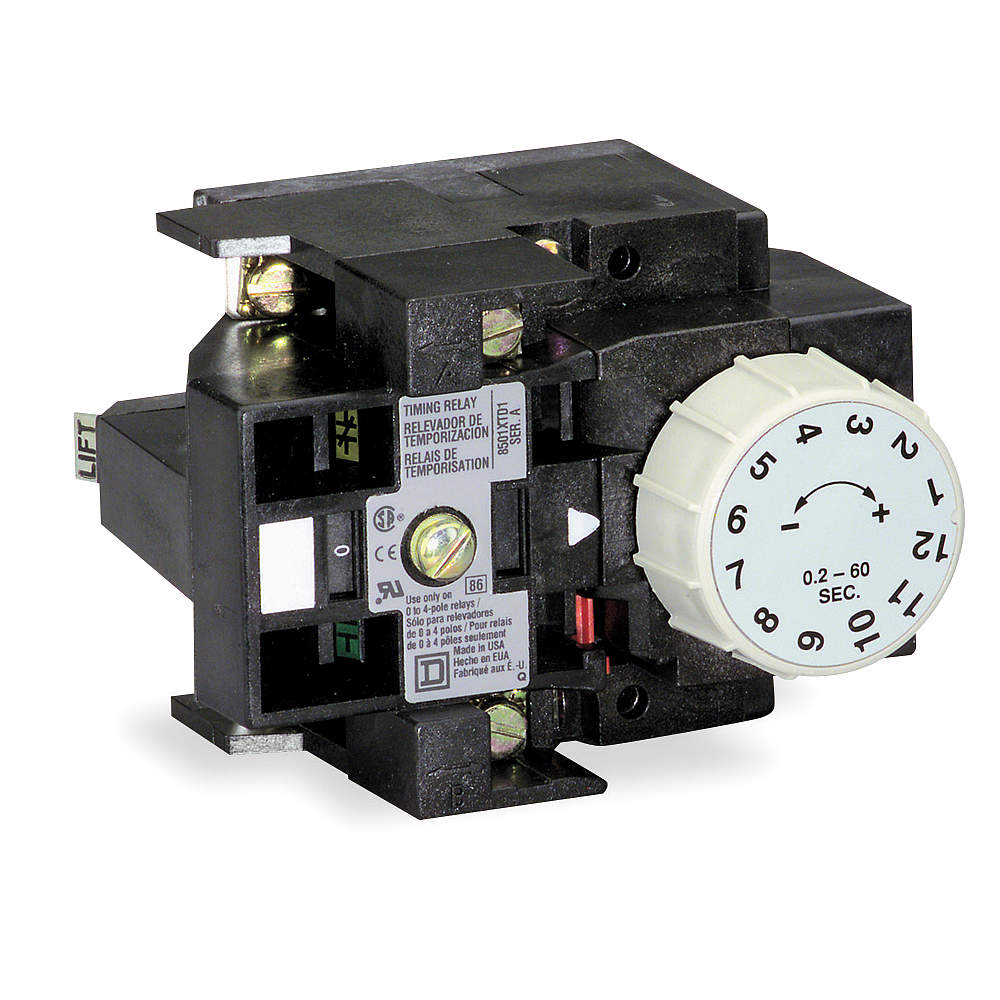

SQUARE D 8501XTD1 Timer Attachment
Item: AG7BMCModel: 8501XTD1Cross Ref: 4B531
7 In Stock
Ships within 2 days via
5.00% off
€572.52 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Off Delay Pneumatic Timer Attachment |
| Compatible Series | 8501X, Class 8501 |
| Component Type | Timing Relay |
| Contact Configuration | 1 No/1 NC |
| Electrical Connection | Screw Clamp Terminal |
| For Electrical Connection | Screw |
| Maximum Time Delay | 60 sec. |
| Minimum Time Delay | 0.2 sec. |
| Mounts On | Any 0 Through 4-Pole AC Or DC Relay Except Xmo Master Relay |
| Relay Type | Control Relay |
| Returnability | Yes |
| Standards | Ce Certified, Csa Certified, Rohs Compliant, Ul Listed |
| Terminal Tightening Torque | Control Circuit 9.03 lbf.in. to 12.04 lbf.in. Screw Terminal |
| Time Delay Type | Off Delay |
| Timing Mode | Off Delay |
| Timing Range | 0.2 sec. to 60 sec. |
| Wire Gauge | 18 AWG to 12 AWG |
| Wire Gauge Material | Copper |
Shipping Info:
| Ship weight (kg) | 0.34 |
| Ship height (cm) | 8.61 |
| Ship length (cm) | 16.31 |
| Ship width (cm) | 11.4 |
| HS code | 9106905520 |
| Country of Origin | MX |
Product Variants
| Product | Model | Electrical Connection | Price | |
|---|---|---|---|---|
|
8501XTE1 | Screw Clamp Terminal | €596.42 |
