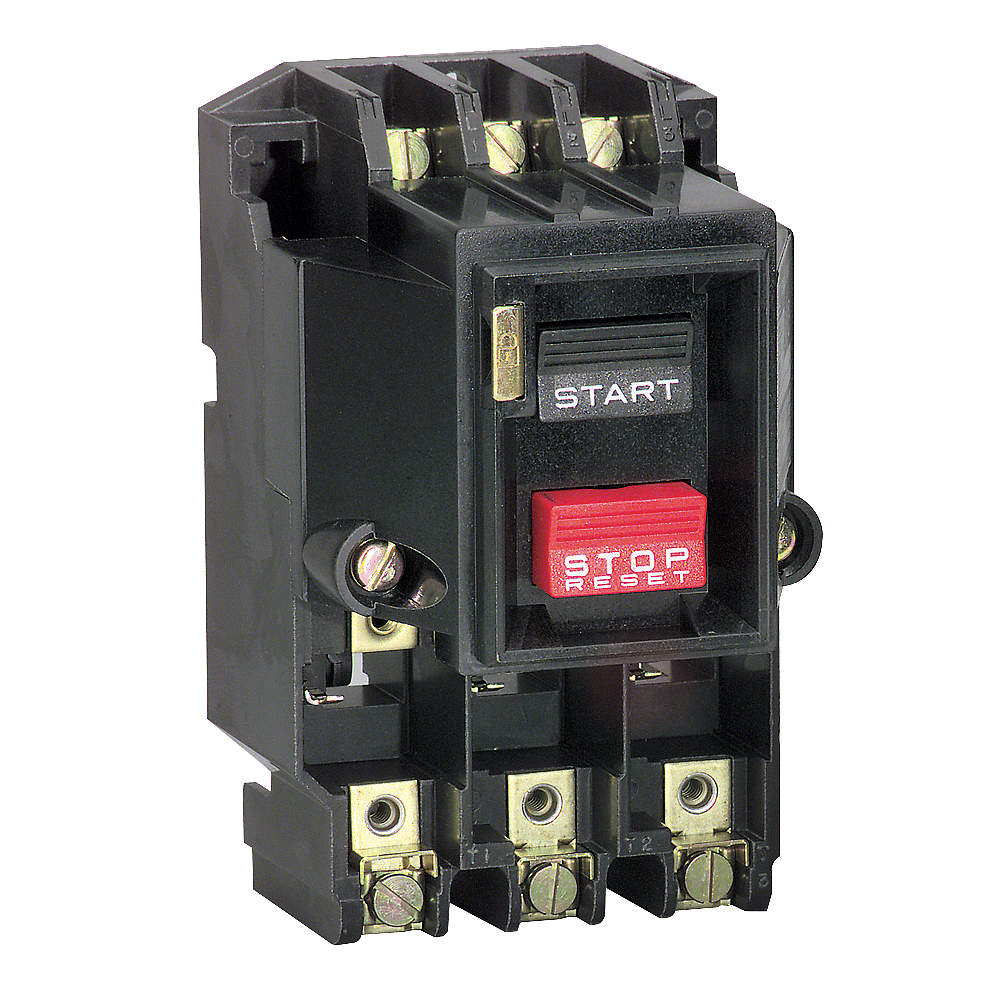

SQUARE D 2510MBO2 Manual Motor Starter NEMA 27A 600VAC 3P
Item: AG9GDCModel: 2510MBO2Cross Ref: 1H413
7 In Stock
Ships within 2 days via
5.00% off
€445.01 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Manual Motor Starter |
| Amps | 27A |
| Auxiliary Contacts | Without |
| Control Unit | Push Button |
| Depth | 4.03" , 4.06" |
| Electrical Connection | Pressure Wire Clamp |
| Height | 5 18/25" |
| Hp | 3 hp @ 200-230V AC, 3 Phase, 5 hp @ 380-575V AC, 3 Phase |
| Hp @ 3 Ph-240v | 3 hp |
| Hp @ 3 Ph-480v | 5 hp |
| Hp @ 3 Phase - 460-575v | 5 |
| Hp @ 3 Phase-575v | 5 hp |
| Hp @ 3 Phase-600v | 5 hp |
| Included Pilot Light | No |
| Max. Amps (ac) | 27A |
| Max. Voltage | 600V AC |
| Nema Enclosure Rating | No Enclosure |
| Nema Size | Nema M-0 |
| No. Of Poles | 3 |
| No. Of Thermal Units | 3 |
| Operator | Push Button |
| Overall Depth | 4.03" |
| Overall Height | 5.72" |
| Overall Width | 3 1/2" |
| Overload Protection Type | Thermal |
| Overload Type | Melting alloy |
| Phase | 3 |
| Pilot Light | No Indicator , Yes |
| Returnability | Yes |
| Reversing Capability | Non Reversing |
| Series | CLASS 2510 M Series |
| Starter Style | NEMA |
| Starter Type | Non Reversing |
| Status Indicator | No Indicator |
| Thermal Units Required | 3 (Not Included) |
| Trip Class | Class Based On Thermal Unit Selected |
| Type | M |
| Voltage | 600V AC |
| Width | 3 1/2" , 3.5" |
| Wire Gauge | 14 AWG to 8 AWG |
| Wire Gauge Material | Copper |
| Wire Termination Type | Screw Clamps |
Shipping Info:
| Ship weight (kg) | 0.99 |
| Ship height (cm) | 13 |
| Ship length (cm) | 22.1 |
| Ship width (cm) | 16.51 |
| Country of Origin | MX |
Product Details:
- Enclosure NEMA Rating : No Enclosure
- HP @ 3 Phase - 240V : 3
- Number of Required Thermals : 1
- Thermal Unit Code : M1
- Special Features: Reliable Overload Protection
Product Variants
| Product | Model | Phase | Enclosure Material | Height | Max. Voltage | Depth | Operator | Pilot Light | Overall Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2510FG1 | 1 | - | 2 3/4" | 600V AC | 2 3/4" | Toggle Switch | No | 2.44" | €94.84 | |
|
2510FG1P | 1 | - | 2 3/4" | 600V AC | 2 3/4" | Toggle Switch | Red On | 2.75" | €196.72 | |
|
2510FG2 | 1 | - | 2 3/4" | 600V AC | 2 3/4" | Toggle Switch | No | 2.75" | €187.90 | |
|
2510FG2P | 1 | - | 2 3/4" | 600V AC | 2 3/4" | Toggle Switch | Red On | 2.75" | €233.71 | |
|
2510FG5 | - | - | 4 1/4" | 600V AC | 2 11/25" | Toggle | No | - | €176.20 | |
 |
2510FG6 | 1 | - | 4 1/4" | 600V AC | 2 11/25" | Toggle Switch | No | 2.88" | €207.73 | |
 |
2510FO1 | - | - | 4.13" | 600V AC | 1.59" | Toggle | No | - | €116.98 |
