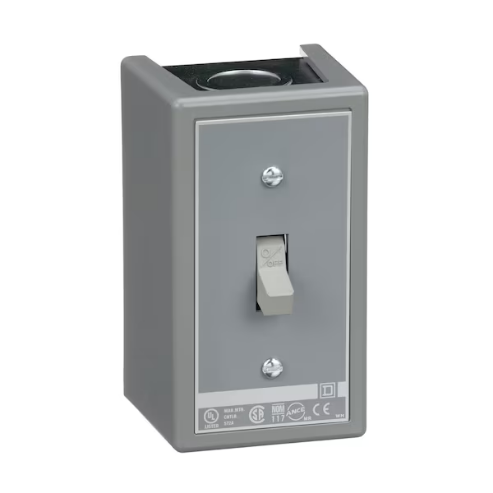

SQUARE D 2510KG6 Manual Switch 600Vac K+Options
Item: CU4FVAModel: 2510KG6Cross Ref: 48P289
7 In Stock
Ships within 2 days via
5.00% off
€222.03 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Manual Motor Switch |
| Amps | 30A |
| Cable Entries | 0.5" And 0.75" Knock-Outs (Top And Bottom) |
| Cable Entry | 0.5" And 0.75" Knock-Outs (Top And Bottom) |
| Comm Code Enhanced | 41510 |
| Control Unit | Toggle |
| Depth | 2 3/4" |
| Discount Schedule | 0CP1 |
| Electrical Connection | Screw Clamp Terminal |
| Family Series | Square D Manual Motor Controllers |
| Height | 107.95 mm , 4 1/4" |
| Hp | 2 hp @ 115V AC, 1 hp @ 90V DC, 2 hp @ 115V DC, 1 1/2 hp @ 230V DC, 7 1/2 hp @ 230V AC, 15 hp @ 460V AC, 20 hp @ 575V AC |
| Hp @ 480v | 15 hp |
| Hp Rating | 2 hp 115V AC, 1 hp 90V DC, 2 hp 115V DC, 1 1/2 hp 230V DC, 7 1/2 hp 230V AC, 15 hp 460V AC, 20 hp 575V AC |
| Material | Painted Sheet Steel Enclosure |
| Max. Hp 240v 3ph | 7 1/2 hp |
| Max. Voltage | 600V AC/230V DC |
| Max. Voltage Rating | 600V AC/230 V DC |
| Nema Enclosure Rating | NEMA 1 |
| No. Of Phase | 3 |
| No. Of Poles | 3 , 3P |
| Operation Type | 3-Pole |
| Pilot Light | No Indicator |
| Product Or Component Type | Single Unit Manual Switch |
| Returnability | Yes |
| Starter Type | Non Reversing |
| Type | 3 Phase , K |
| Ue Rated Operational Voltage | 600V AC/230V DC |
| Width | 2.44" , 61.976 mm |
| Wire Gauge | 14 AWG to 10 AWG |
| Wire Gauge Material | Copper |
Shipping Info:
| Ship weight (kg) | 0.4 |
| Ship height (cm) | 10.8 |
| Ship length (cm) | 6.99 |
| Ship width (cm) | 6.2 |
| Country of Origin | MX |
Product Variants
| Product | Model | Height | Amps | Returnability | Comm Code Enhanced | Handle Color | Handle Front Plate Colour | Rotary Handle Padlocking | Device Short Name | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
VCFN12GE | 5 1/5" | 8 mA | Yes | 41510 | Red | Yellow | 1 to 3 Padlocks | Vcfn | €306.24 | |
 |
KCF2PZ | 2 2/5" | - | Yes | - | Red | Yellow | 1 to 3 Padlocks | Kcf2 | €79.44 | |
 |
KAF1PZ | 2 2/5" | - | Yes | 41510 | Black | Black | 1 to 3 Padlocks | Kaf1 | €69.26 | |
 |
KCF1PZ | 2 2/5" | - | Yes | 41510 | Red | Yellow | 1 to 3 Padlocks | Kcf1 | €78.80 | |
 |
KAF2PZ | 2 2/5" | - | Yes | 41530 | Black | Black | 1 to 3 Padlocks | Kaf2 | €70.70 | |
|
KCD1PZ | 2 2/5" | - | Yes | 41510 | Red | Yellow | 1 to 3 Padlocks | Kcd1 | €70.70 | |
|
KAD1PZ | 2 2/5" | - | Yes | 41530 | Black | Black | 1 to 3 Padlocks | Kad1 | €70.70 |
