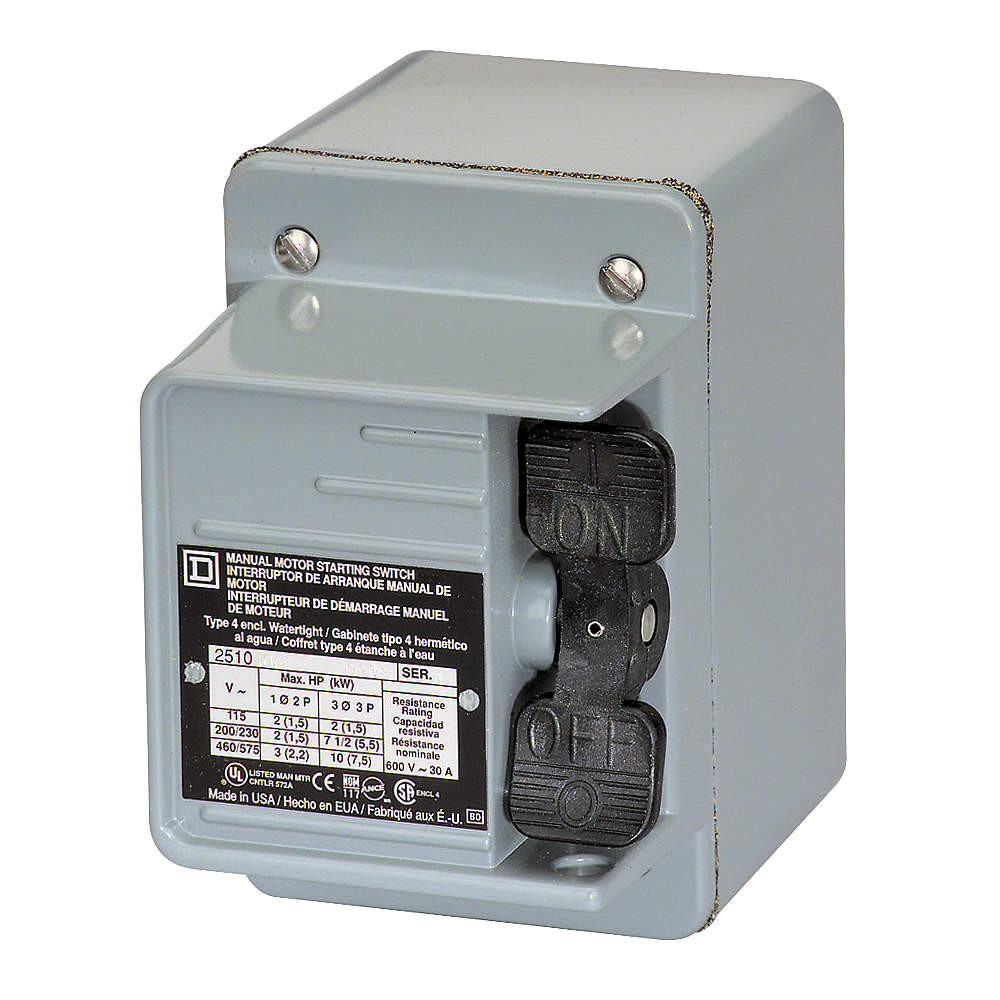

SQUARE D 2510FW2 Manual Motor Starter 37 to 50A 600V
Item: AG9GCNModel: 2510FW2Cross Ref: 1H399
7 In Stock
Ships within 2 days via
5.00% off
€463.74 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Manual Motor Starter |
| Amps Rating | 16A |
| Cable Entry | Bottom |
| Cable Entry Type | NPT |
| Control Unit | Toggle Switch With Lock Off |
| Depth | 2 3/4" , 4 1/4" |
| Electrical Connection | Screw Clamp Terminal |
| Extra Features | Handle Guard |
| Height | 4.38" |
| Horsepower @ Single Phase - 120v Ac | 1 hp |
| Horsepower @ Single Phase - 240v Ac | 2 hp |
| Hp @ 1 Phase - 230v | 1 hp |
| Hp @ 115v Dc | 3/4 hp |
| Hp @ 115vdc | 3/4 |
| Hp @ 230v Dc | 3/4 hp |
| Hp @ 230vdc | 3/4 |
| Hp Rating | 1 hp @ 115V AC, 1 hp @ 277V AC, 3/4 hp @ 115V DC, 3/4 hp @ 230V DC, 2 hp @ 230V AC |
| Max Current (ac) | 16A |
| Max. Voltage | 600V AC |
| Maximum Voltage Rating | 277V AC/230V DC |
| Motor Starter Type | Non Reversing |
| Nema Enclosure Rating | 4 |
| No. Of Poles | 2 |
| Number Of Phases | 1 |
| Number Of Poles | 2 |
| Operator | Rocker |
| Operator | Toggle Switch |
| Overall Depth | 4.25" |
| Overall Height | 4.38" |
| Overall Width | 3" |
| Overload Protection Type | Thermal |
| Overload Type | Melting alloy |
| Phase | Single |
| Pilot Light | No , No Indicator |
| Reset | Manual |
| Returnability | Yes |
| Reversing Capability | Non-reversing |
| Series | CLASS 2510 F Series |
| Starter Style | NEMA |
| Status Indicator | No Indicator |
| Thermal Units Required | 1 (Not Included) |
| Type | F |
| Voltage Rating | 277V AC/230V DC |
| Width | 3" , 4 1/4" |
| Wire Gauge | 14 AWG to 12 AWG |
| Wire Gauge Material | Copper |
| Wire Termination Type | Screws |
Shipping Info:
| Ship weight (kg) | 1.32 |
| Ship height (cm) | 9.14 |
| Ship length (cm) | 13.72 |
| Ship width (cm) | 11.68 |
| Country of Origin | MX |
Product Details:
- Enclosure NEMA Rating : 4
- Number of Required Thermals : 2
- Special Features: Handle Guard Lock-Off
Product Variants
| Product | Model | Number Of Poles | Amps Rating | Voltage Rating | Phase | Enclosure Material | Height | Max. Voltage | Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2510FG1 | 1 | 16A | 277V AC | Single | - | 2 3/4" | 600V AC | 2 3/4" | €94.84 | |
|
2510FG1P | 1 | 16A | 277V AC | Single | - | 2 3/4" | 600V AC | 2 3/4" | €196.72 | |
|
2510FG2 | 2 | 16A | 277V AC/230V DC | Single | - | 2 3/4" | 600V AC | 2 3/4" | €187.90 | |
|
2510FG2P | 2 | 16A | 277V AC/230V DC | Single | - | 2 3/4" | 600V AC | 2 3/4" | €233.71 | |
|
2510FG5 | 1 | 16A | 277V AC | - | - | 4 1/4" | 600V AC | 2 11/25" | €176.20 | |
 |
2510FG6 | 2 | 16A | 277V AC/230V DC | Single | - | 4 1/4" | 600V AC | 2 11/25" | €231.63 | |
 |
2510FO1 | 1 | 16A | 277V AC | - | - | 4.13" | 600V AC | 1.59" | €116.98 |
