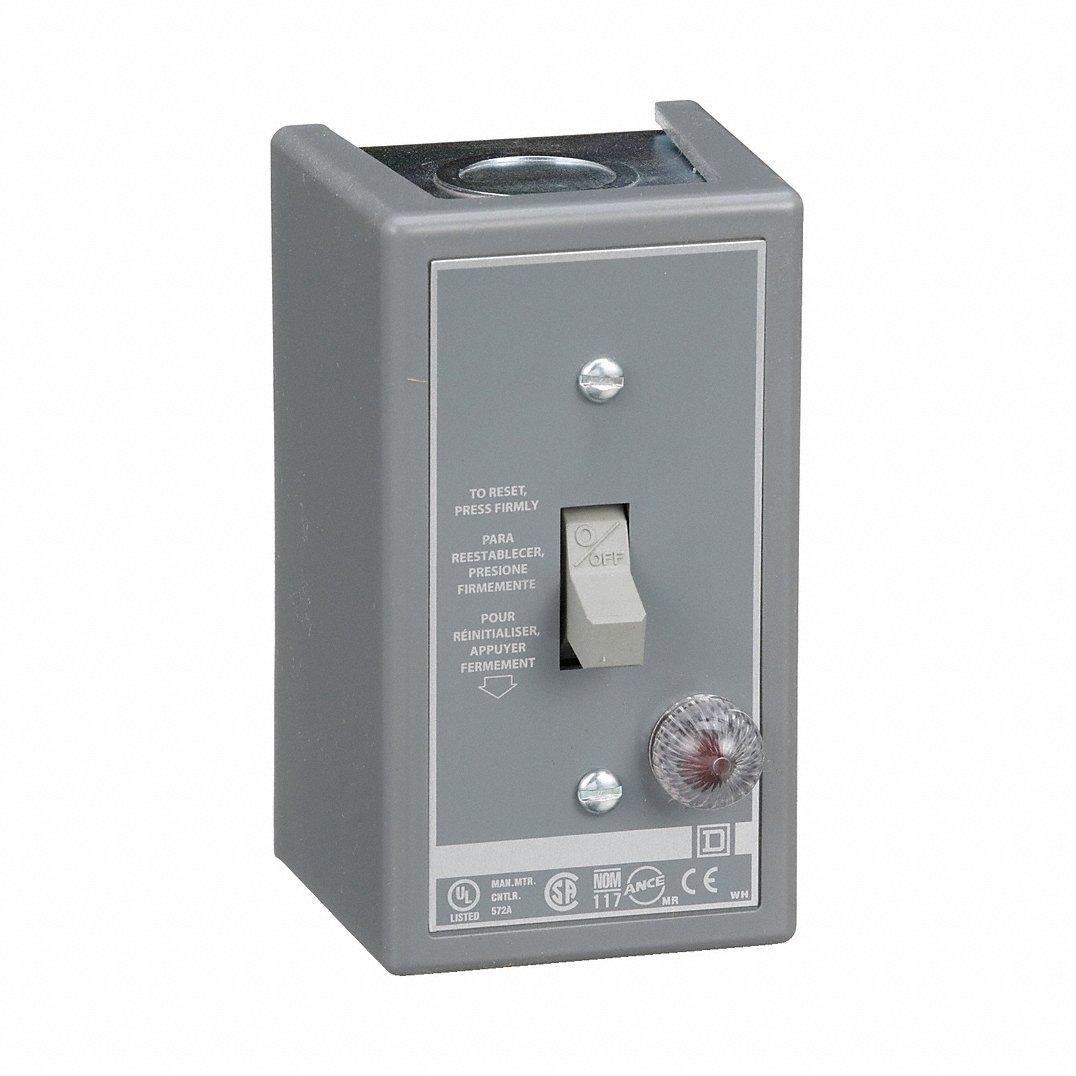

SQUARE D 2510FG6P Manual Starter 277Vac
Item: CU4FUQModel: 2510FG6PCross Ref: 48P277
7 In Stock
Ships within 2 days via
5.00% off
€222.03 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Manual Motor Switch |
| Amps | 16A |
| Cable Entries | 0.5" And 0.75" Knock-Outs (Top And Bottom) |
| Cable Entry | 0.5" And 0.75" Knock-Outs (Top And Bottom) |
| Color | Red |
| Comm Code Enhanced | 41360 |
| Control Type | Toggle Switch (With Lock Off) |
| Control Unit | Toggle Switch With Lock Off |
| Depth | 2.88" |
| Discount Schedule | 0CP1 |
| Electrical Connection | Screw Clamp Terminal |
| Enclosure Type | NEMA 1, Surface |
| For Use With | Motor Control Systems |
| Frame Type | 2510 |
| Height | 107.95 mm , 4 1/4" |
| Hp | 1 hp @ 115V AC, 1 hp @ 277V AC, 3/4 hp @ 115V DC, 3/4 hp @ 230V DC, 2 hp @ 230V AC |
| Hp Rating | 1 hp 115V AC, 1 hp 277V AC, 3/4 hp 115V DC, 3/4 hp 230V DC, 2 hp 230V AC |
| Motor Starter Type | Non Reversing |
| Mounting Type | Surface |
| Nema Enclosure Rating | NEMA 1 |
| No. Of Phase | 1 |
| No. Of Poles | 2 , 2P |
| Overload Type | Melting alloy |
| Pilot Light | Red Indicator |
| Pole | 2 |
| Product Or Component Type | Single Unit Manual Starter |
| Reset | Manual |
| Returnability | Yes |
| Series | 2510 Series |
| Terminal Connection | Screw Clamp |
| Type | F |
| Voltage | 277V AC/230V DC |
| Width | 2.44" , 61.976 mm |
| Wire Gauge | 14 AWG to 12 AWG |
| Wire Gauge Material | Copper |
Shipping Info:
| Ship weight (kg) | 0.38 |
| Ship height (cm) | 10.8 |
| Ship length (cm) | 7.32 |
| Ship width (cm) | 6.2 |
| Country of Origin | MX |
Product Variants
| Product | Model | Height | Amps | Returnability | Comm Code Enhanced | Handle Color | Handle Front Plate Colour | Rotary Handle Padlocking | Device Short Name | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
VCFN12GE | 5 1/5" | 8 mA | Yes | 41510 | Red | Yellow | 1 to 3 Padlocks | Vcfn | €306.24 | |
 |
KCF2PZ | 2 2/5" | - | Yes | - | Red | Yellow | 1 to 3 Padlocks | Kcf2 | €79.44 | |
 |
KAF1PZ | 2 2/5" | - | Yes | 41510 | Black | Black | 1 to 3 Padlocks | Kaf1 | €69.26 | |
 |
KCF1PZ | 2 2/5" | - | Yes | 41510 | Red | Yellow | 1 to 3 Padlocks | Kcf1 | €78.80 | |
 |
KAF2PZ | 2 2/5" | - | Yes | 41530 | Black | Black | 1 to 3 Padlocks | Kaf2 | €70.70 | |
|
KCD1PZ | 2 2/5" | - | Yes | 41510 | Red | Yellow | 1 to 3 Padlocks | Kcd1 | €70.70 | |
|
KAD1PZ | 2 2/5" | - | Yes | 41530 | Black | Black | 1 to 3 Padlocks | Kad1 | €70.70 |
