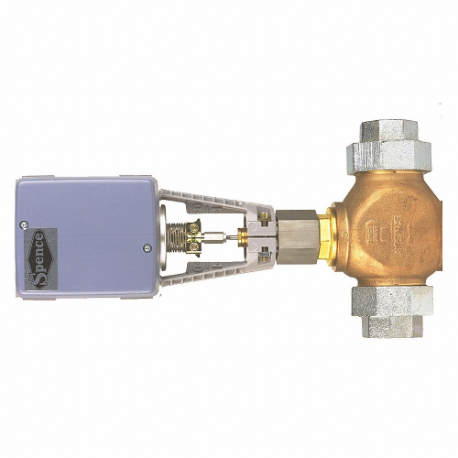

SPENCE K5TC81191 Electric Globe Control Valve, Bronze Body, 250 Class, 1/2 Inch Pipe Size
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€6,669.41 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Control Valve |
| Actuator Enclosure Material | Die Cast Aluminum |
| Actuator Features | Manual Override |
| Actuator Input Control Signal | 4-20 mA |
| Ansi Flange Class | Class 250 |
| Body Material | Bronze |
| Body Style | Two Way |
| Bonnet Material | Brass |
| Bonnet Style | Screw In |
| Class | 250 |
| Connection Size - Side 1 | 1/2" |
| Connection Size - Side 2 | 1/2" |
| Connection Type | FNPT |
| Disc Material | Stainless Steel |
| Fail Safe Position | Fail Closed |
| Flow Coefficient | 5.2 |
| Fluids Served | Air, Steam, Water |
| For Media | Fuel, Water |
| Inlet To Outlet Length | 5 1/2" |
| Input Control Signal | 4-20 mA |
| Max. Fluid Temp. | 400°F |
| Max. Pressure (cwp) | 250 psi |
| Max. Steam Pressure | 250 psi |
| Max. Water Pressure | 250 psi |
| Media Temperature Range | 14°F to 400°F |
| Nema Enclosure Rating | 1 |
| Overall Length | 5.5" |
| Pipe Size | 1/2" |
| Seal Material | Metal |
| Seat Material | Stainless Steel |
| Stem Material | Stainless Steel |
| Stem Type | Rising |
| Temp. Range | 400°F |
| Valve Deactivated State | normally Closed (NC) |
| Valve Series | K5 |
| Valve Stem Type | Rising |
| Valve Structure | 3-Piece |
| Voltage | 0-10V DC |
| Wedge Material | Stainless Steel |
Shipping Info:
| Ship weight (kg) | 7.2 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Pipe Size | Inlet To Outlet Length | Body Material | Seal Material | Seat Material | Connection Type | Max. Water Pressure | Bonnet Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| K5TG81191 | 1 1/2" | 8.859" | Bronze | Metal | Stainless Steel | FNPT | 250 psi | Screw In | €8,576.46 | |
| K5TE81191 | 1" | 7.188" | Bronze | Metal | Stainless Steel | FNPT | 250 psi | Screw In | €7,279.21 | |
| K5TH81191 | 2" | 8.859" | Bronze | Metal | Stainless Steel | FNPT | 250 psi | Screw In | €9,369.25 | |
| K5TD81191 | 3/4" | 5 1/2" | Bronze | Metal | Stainless Steel | FNPT | 250 psi | Screw In | €7,230.74 | |
| K5TF81191 | 1 1/4" | 8.859" | Bronze | Metal | Stainless Steel | FNPT | 250 psi | Screw In | €7,930.04 |
